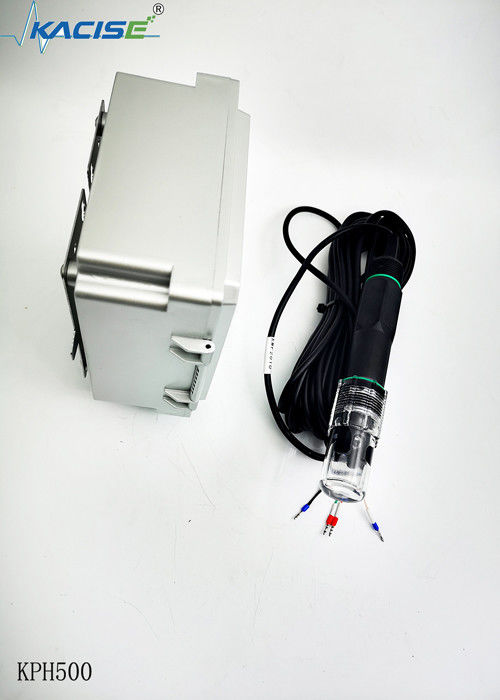

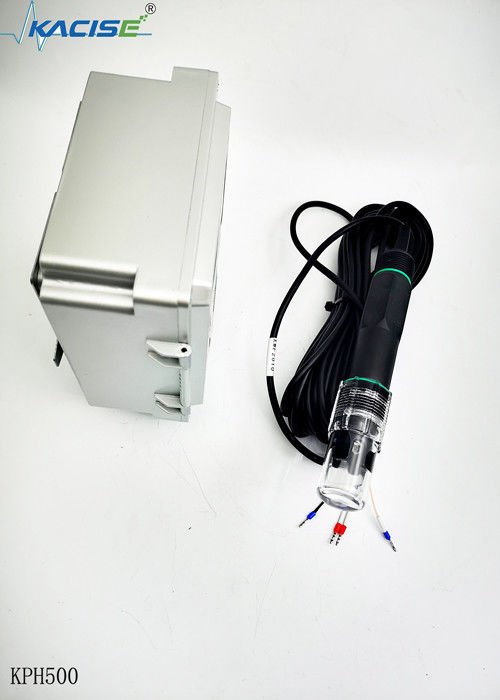

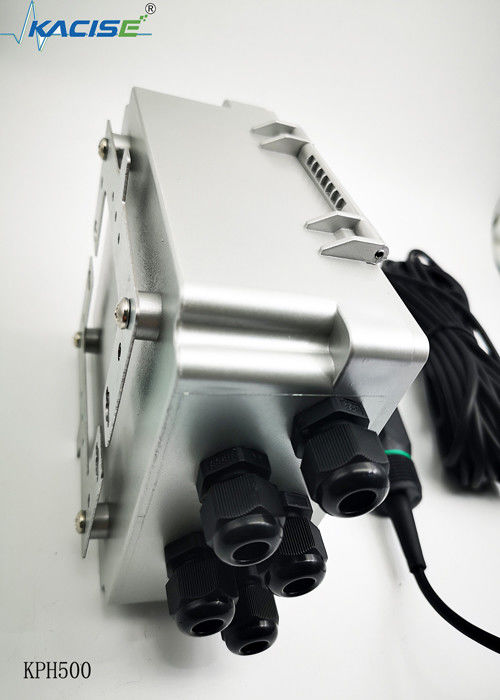

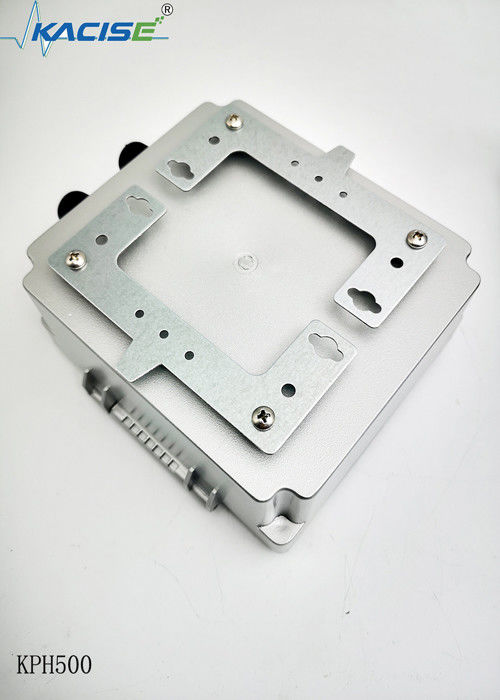

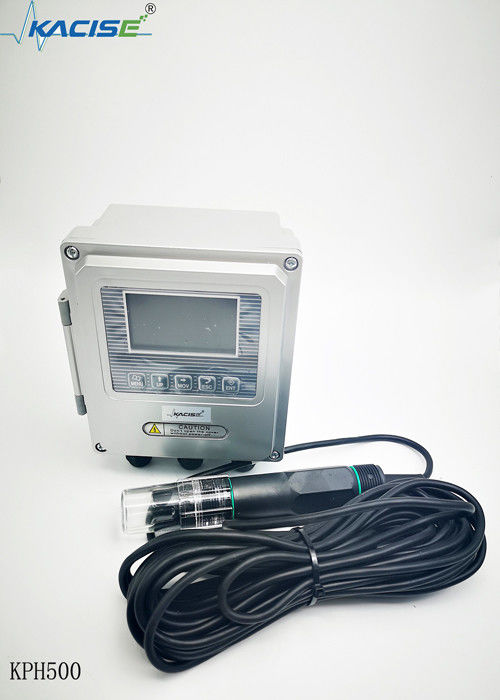

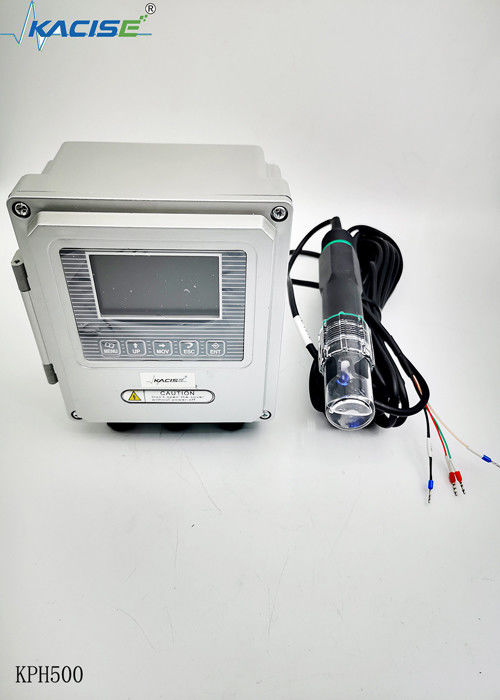

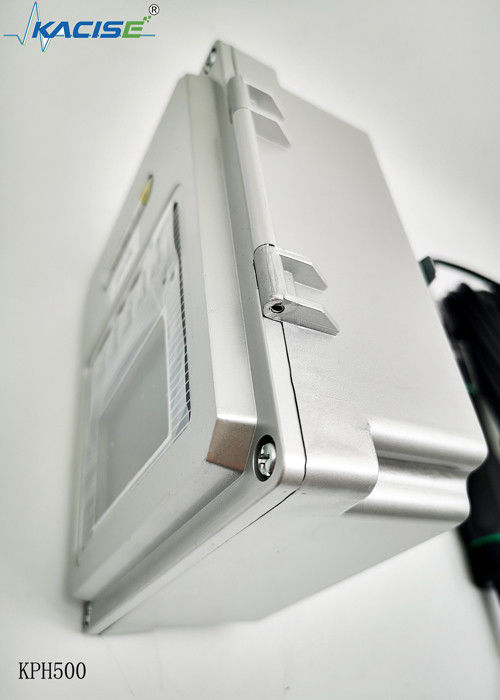

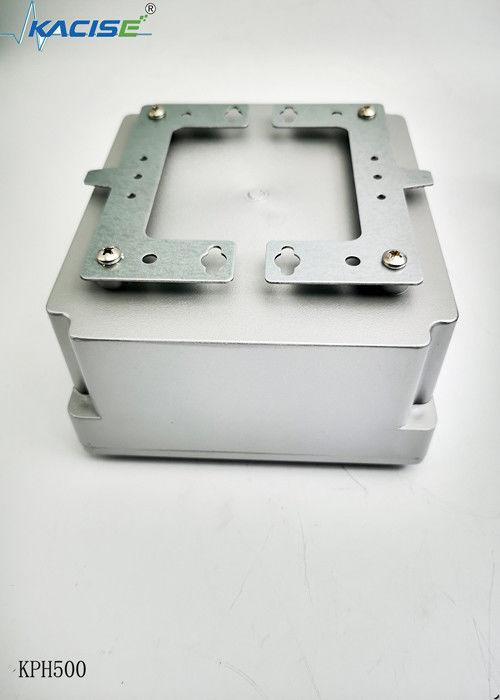

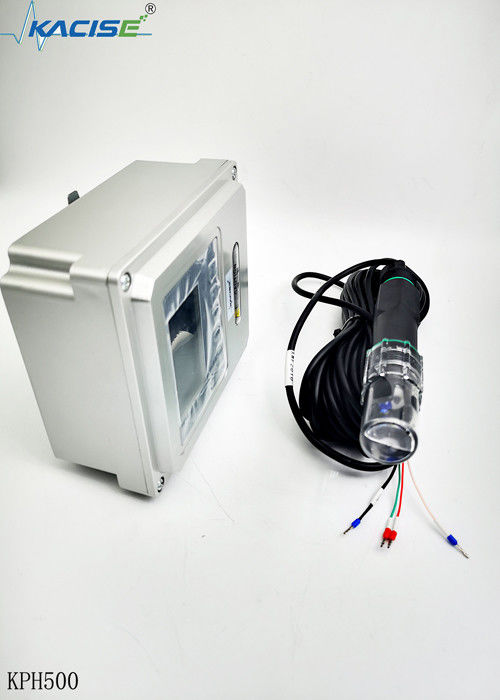

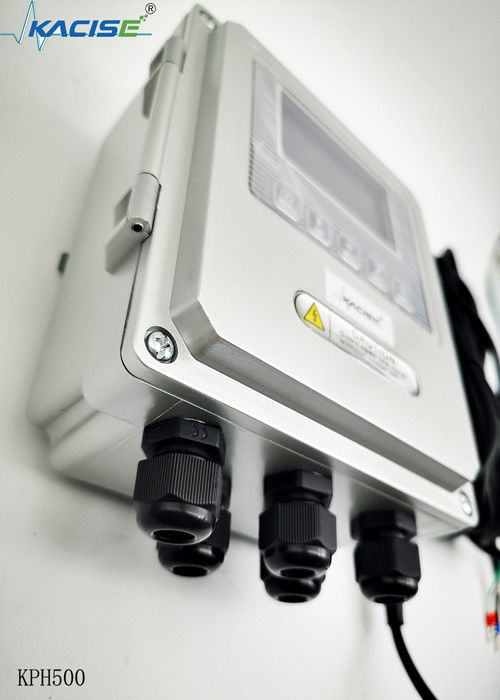

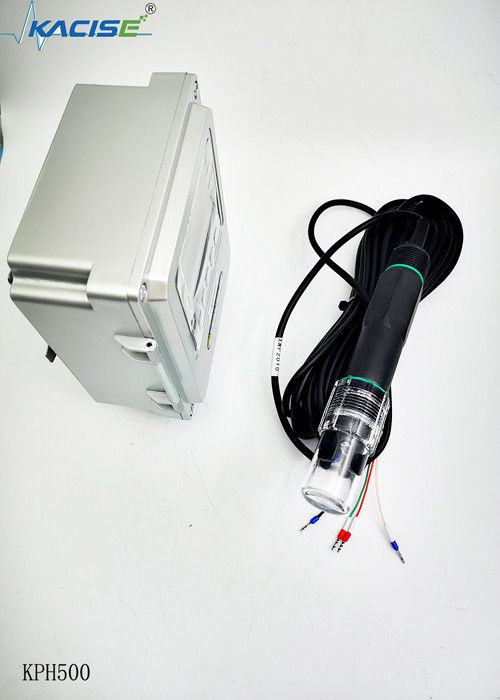

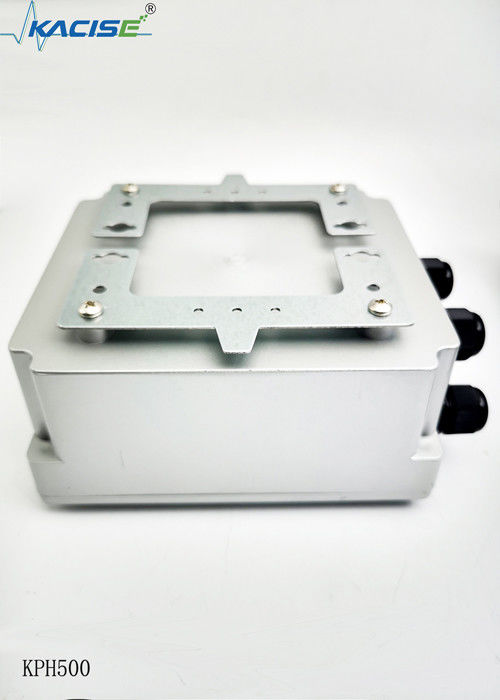

KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation

KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation

4~20ma PH sensor for seawater

water quality PH meter

seawater PH sensor with warranty

Place of Origin:

CHINA

Brand Name:

kacise

Certification:

CE,FDA

Model Number:

KPH500

Contact Us
Request A Quote
KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation
Product Details
Measuring Range:
0-14PH;-2000mv-2000mv
Resolution:
0.01PH;1mv
Precision:
2% Calibration Accuracy
Operating Temperature:
Transmitter 0-65°C
Material:
PVC
Protection Level:
I65/IP67(customized Version)
Signal Output:
485 Communication/4-20mA Analog Output/support HART Protocol/NB.GPRS.LORA Communication (function Option)
Supply Voltage:
AC220V Or DC24V (choose One Of The Two)
Power Consumption:
<1W
Display:
LCD Chinese Display/TFT Color LCD (customized Version)
Installation Method:
Bracket Drop-in Installation
Sensor:Temperature Compensation:
Automatic Temperature Compensation
Sensor:Protection Level:
Ip68
Sensor:Temperature:
0-60°C
Sensor:Material:
PVC
Sensor:Cable Length:
Dedicated PH Cable, Standard 5 Meters (extendable)
Sensor:Operating Temperature:
0-60°C
Sensor:Storage Temperature:
-10-60°C
Highlight:

4~20ma PH sensor for seawater

,

water quality PH meter

,

seawater PH sensor with warranty

Payment & Shipping Terms
Minimum Order Quantity
10-1000
Price
$100-$2000
Packaging Details
Common package or custom package
Delivery Time
10-15 days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
2000pcs/day
RELATED PRODUCTS
Good price IP68 Anti Interference Online Turbidity Sensor with 0.1 NTU Resolution for Industrial Water Quality Monitoring online Video

IP68 Anti Interference Online Turbidity Sensor with 0.1 NTU Resolution for Industrial Water Quality Monitoring

Get Best Price
Good price IP68 POM Material Nitrate Nitrogen Water Quality Sensor with Ion Selective Electrode Method online Video

IP68 POM Material Nitrate Nitrogen Water Quality Sensor with Ion Selective Electrode Method

Get Best Price
Good price KWS-150 COD Sensor with 0.1NTU Turbidity Resolution and RS-485 Output Using Dual-wavelength UV Absorption online Video

KWS-150 COD Sensor with 0.1NTU Turbidity Resolution and RS-485 Output Using Dual-wavelength UV Absorption

Get Best Price
Good price KWS-380 Digital TDS Sensor with RS-485 Output and IP68 Protection for High Precision Water Quality Monitoring online Video

KWS-380 Digital TDS Sensor with RS-485 Output and IP68 Protection for High Precision Water Quality Monitoring

Get Best Price
Contact Us
Contact Now
Product Description
Production Introduction

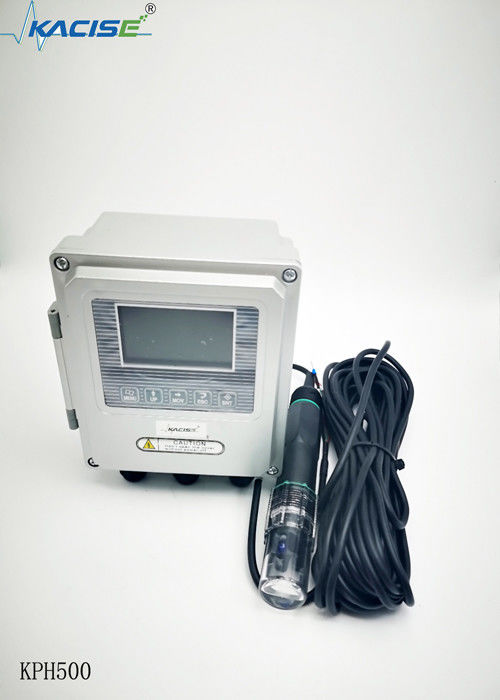

The PH/ORP meter is a precision meter used to detect the pH/oxidation-reduction potential of liquids. It is designed with a microcomputer based on the principle of the primary battery and is simple to operate and easy to maintain. Not affected by color, turbidity, colloidal substances, oxidants and reducing agents, it is suitable for the determination of various media such as clean water, wastewater, industrial water, chemical reagents, etc., and is widely used in agriculture, environmental protection and industry.

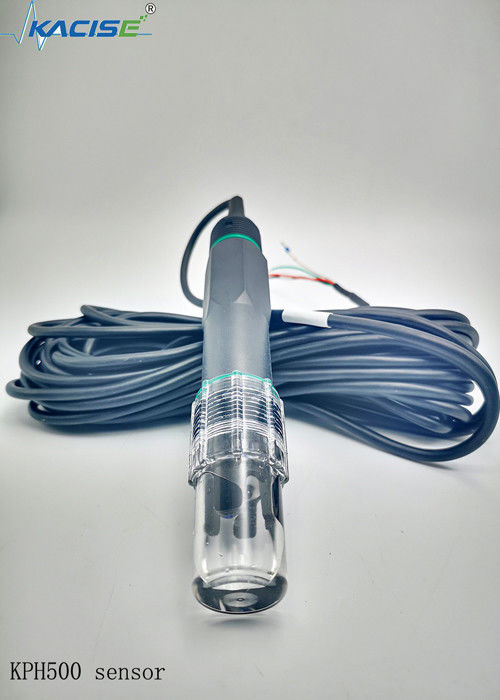

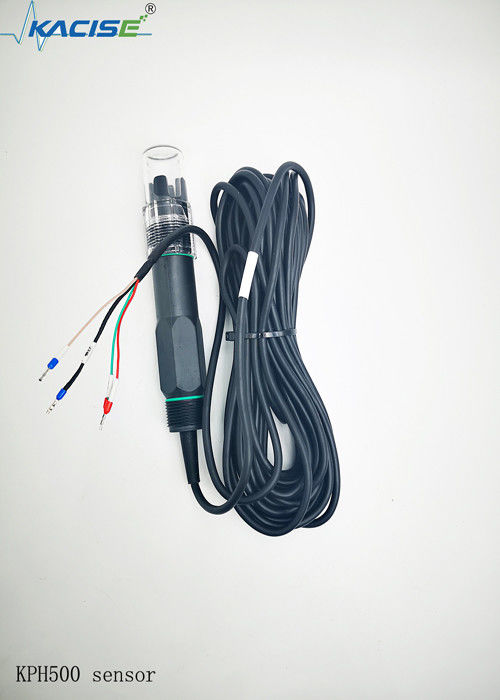

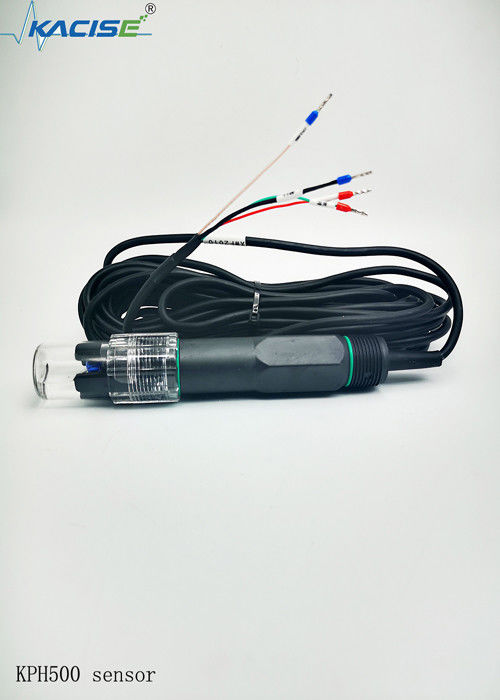

The sensor uses a composite electrode, which can eliminate the influence of the inconstant "K" value, A long-term, stable and accurate measurement of PH is realized. The internal structure of the sensor is shown on the right.

KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation 0
Features
  1. LCD display, Chinese menu operation, stable performance and strong reliability
  2. High-performance operational amplifier, ORP positive and negative poles are symmetrical, small drift, high accuracy
  3. Data is not lost after power off
  4. Dual 4-20mA transmission output, relay high and low alarm control output, RS485 communication Output
  5. Simultaneous display of PH value, temperature value, output current value, high alarm value, low alarm value
PH/ORP size structure chart

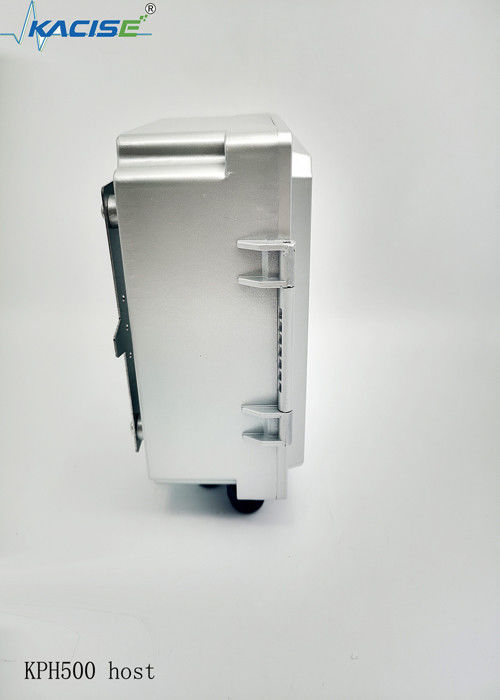

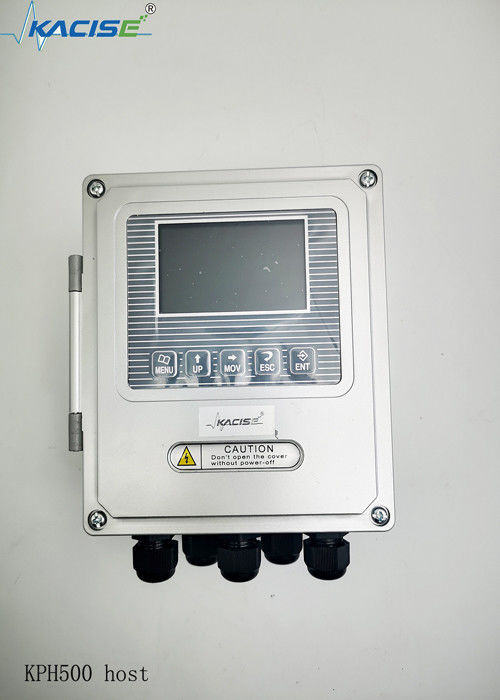

Host size
KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation 1

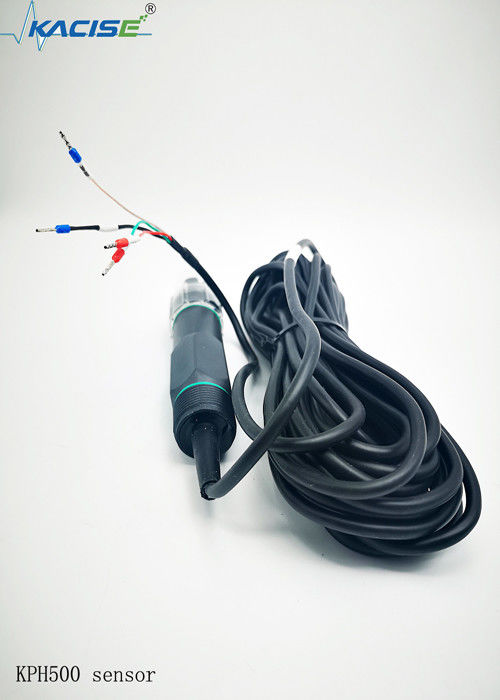

Sensor size
KPH500 PH Sensor with 4-20mA Output and IP68 Protection for Seawater Water Quality Meter with Automatic Temperature Compensation 2
PH/ORP technical parameters
ClassPerformancePH parameterOPR parameter
HostMeasuring range0-14PH-2000mv-2000mv
Resolution0.01PH1mv
Precision2% Calibration accuracy
Operating TemperatureTransmitter 0-65℃
MaterialPVC
Protection LevelI65/IP67(customized version)
Signal Output

485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA
Communication (function option)

Supply VoltageAC220V or DC24V (choose one of the two)
Power Consumption<1W
DisplayLCD Chinese display/TFT color LCD (customized version)
Installation MethodWall mount
SensorTemperature CompensationAutomatic temperature compensation
Protection Levelip68
Temperature0-60℃
Sensor MaterialPVC
Cable LengthDedicated PH cable, standard 5 meters (extendable)
Operating Temperature0-60℃
Storage Temperature-10-60℃
Installation MethodBracket drop-in installation
Ordering Information Selection Table
Ordering Information Selection Table
KPH500PH/ORP analyzer
Power supplyDC24V
AC220V
Cable length5m
10m
15m
20m
Temperature compensationSensor without temperature compensation
Sensor with temperature compensation
Signal outputOnly 4-20mA
Only 485
Also with 4-20mA , 485 signal output
Special custom signal
KPH500-P-DC24V-5m-Sensor without temperature compensation-Only 485PH host, with DC24V adapter, cable between host and sensor,The cable length is 5 meters, the sensor is equipped without temperature compensation, and is only 485 communication.
KPH500-R-AC220V-10m-Sensor with temperature compensation-Only 485

Optional ORP host, with 220V adapter, line between host and sensor
The cable length is 10 meters, the sensor with temperature compensation, and is equipped with only 485 communication signal output.
