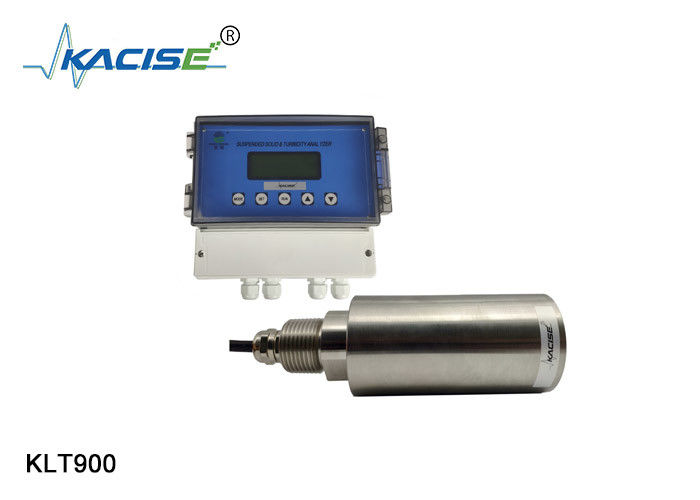

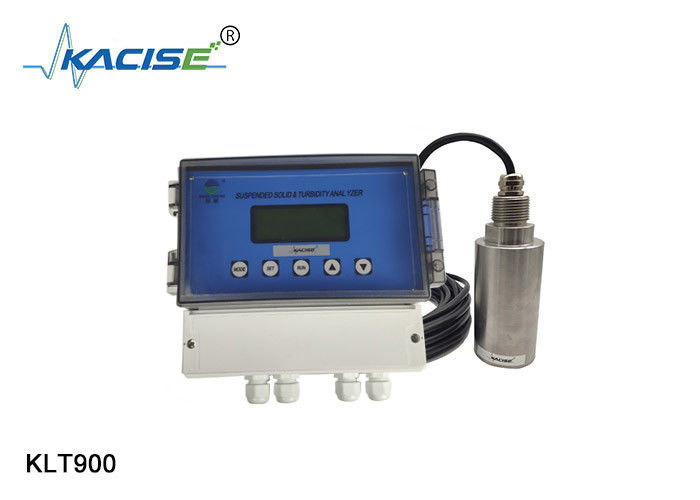

KLT900 online Lightning proof enclosure turbidity meter 316L stainless steel sensor
Production Introduction
The optical method is often used to measure the turbidity of liquid by comparing with the standard turbidity.The turbidimeter uses the principle of 90° scattered light to accurately measure the turbidimetric value of the tested sample compared with the standard Turbidimetric solution of Formazin.
With its unique software function, the scattered light turbidimeter ensures the accuracy and reliable stability of the instrument.It is widely used in the determination of liquid turbidity in industrial and mining, medical treatment, environmental protection, food, brewing, textile, chemical and other departments.
The ratio of scattered light to transmitted light is taken to measure the turbidity of liquid.The tungsten lamp as light source, light through the lens and color filter, all the way through the measured turbidity liquid transmission to cell 1 received, the other all the way through the liquid 2 receive 90 °scattering to the cell, acoustic signal by the op-amp signal processing after A/D conversion, data processing by single chip microcomputer, through the keyboard control measurement showed that the liquid turbidity value and print output.
Measuring principle
TSS turbidity/suspended matter concentration meter work principle as shown in figure 1-1, sensor transmitter to send the red outside light in transit after being measured the absorption and scattering of content, part of the scattering light to 135°direction of detector, part of the scattering light detector to 90°direction.The light intensity in the direction of 135°and 90°is related to the turbidity of the measured sewage to a certain extent, and the TURBidity of TSS is precisely based on this principle for measurement.
Turbidity meter size structure diagram
host size
sensor size
Turbidity meter technical parameters
| Performance |
value |
| System |
Menu-driven software, with multi-point calibration function and binding programming, can set the measurement range, relay and current output; |
| Supply |
AC220V (min85V- max265V) 50/60Hz |
| Maximum power consumed |
15 VA |
| Fuse |
2A /220VAC |
| Range |
0~4000 NTU |
| Measurement Unit |
NTU and mg/L are available. |
| Resolution Rate |
0.1NTU |
| Accuracy |
2% of the measured value, within 10NTU the error is not greater than 1NTU. |
| Display |
The display screen is 192 × 64 pixels, which can display turbidity measurement value, current time, historical trend line, etc. |
| Principle |
infrared light scattering 90° and 135° |
| Output |
1 channel 4~20mA current signal isolation output, maximum load 750 ohms; 1-channel RS232 and 1-channel RS485 digital output (optional); 3 alarm signal relays, capacity 220 VAC/ 2 A, output can be set by the user; |
| Host:Material |
ABS+PC |
| Host:Protection Level |
IP65 |
| Sensor Material |
316L stainless steel |
| Cable Length |
Dedicated shield cable, standard 10 meters (extendable) |
| Operating Temperature |
0-50℃ |
| Pressure |
0.6MPa |
| Calibrate |
It has been calibrated before delivery and no calibration is needed on site |
Ordering Information Selection Table
| Ordering Information Selection Table |
| KXTX00 |
PH/ORP analyzer |
| Power supply |
DC24V |
| AC220V |
| Cable length |
5m |
| 10m |
| 15m |
| 20m |
| Temperature compensation |
Sensor without temperature compensation |
| Sensor with temperature compensation |
| Signal output |
Only 4-20mA |
| Only 485 |
| Also with 4-20mA , 485 signal output |
| Special custom signal |
| KLT500-DC24V--5m-Sensor without temperature compensation-Only 485 |
Low Turbidity host, with DC 24V adapter, cable between host and sensor,The cable length is 5 meters, the sensor is equipped without temperature compensation, and is only 485 communication. |
Calibration
The standard turbidity liquid of 20NTU, 100NTU, 200NTU and 400NTU has been preliminarily calibrated before the delivery of the scattered light turbidimeter,to adjust the multi-section gain and store in EPROM. After the delivery of the turbidimeter, according to the turbidity liquid measured, the standard turbidity liquid is appropriately selected for accurate calibration:
(1) Sample <20NTU: 20NTU standard turbidity solution was selected;
(2) 20NTU< sample <100NTU: 100NUT standard turbidity solution was selected;
(3) 100NTU< sample under test <200NTU: 200NTU standard turbidity solution was selected;
(4) 200NTU< sample under test <400NTU: 400NTU standard turbidity solution was selected.
