| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE,FDA |
| Model Number: | KBU601 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $100-$2000 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Sensor:Protection Level: | Ip68 | Sensor:Temperature: | 0-60°C |
|---|---|---|---|
| Sensor:Material: | PVC | Sensor:Cable Length: | Dedicated PH Cable, Standard 5 Meters (extendable) |
| Sensor:Operating Temperature: | 0-60°C | Sensor:Storage Temperature: | -10-60°C |
| High Light: | DC24V Water Quality Testing Equipment,KPH500 Water Quality Testing Equipment,14PH water quality monitoring sensors |
||

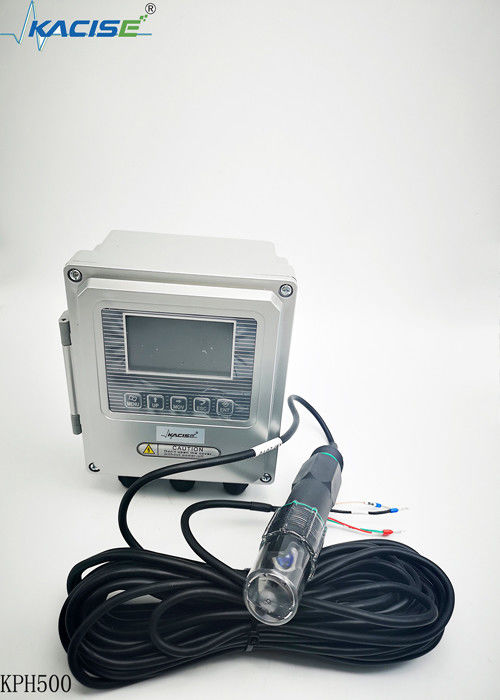

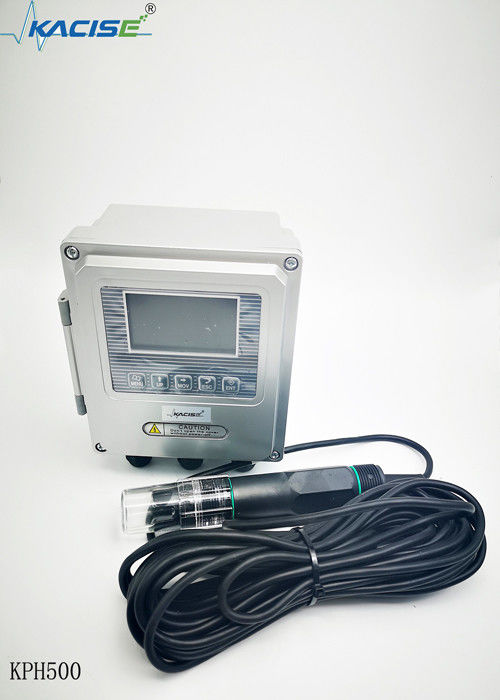

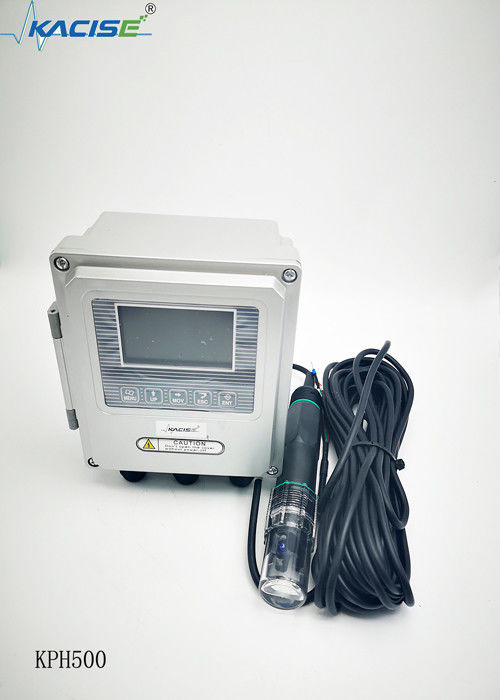

KPH500 PH/ORP sensor,Compact, flexible and easy to use,black PVC,gray meter host,water quality test.
Production Introduction
The PH/ORP meter is a precision meter used to detect the pH/oxidation-reduction potential of liquids. It is designed with a microcomputer based on the principle of the primary battery and is simple to operate and easy to maintain. Not affected by color, turbidity, colloidal substances, oxidants and reducing agents, it is suitable for the determination of various media such as clean water, wastewater, industrial water, chemical reagents, etc., and is widely used in agriculture, environmental protection and industry.
The sensor uses a composite electrode, which can eliminate the influence of the inconstant "K" value,
A long-term, stable and accurate measurement of PH is realized. The internal structure of the sensor is shown on the right.
PH/ORP size structure chart
Host size
Sensor size
PH/ORP technical parameters
| Class | Performance | PH parameter | OPR parameter |
| Host | Measuring range | 0-14PH | -2000mv-2000mv |
| Resolution | 0.01PH | 1mv | |
| Precision | 2% Calibration accuracy | ||
| Operating Temperature | Transmitter 0-65℃ | ||
| Material | PVC | ||
| Protection Level | I65/IP67(customized version) | ||
| Signal Output |
485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA Communication (function option) |
||
| Supply Voltage | AC220V or DC24V (choose one of the two) | ||
| Power Consumption | <1W | ||
| Display | LCD Chinese display/TFT color LCD (customized version) | ||
| Installation Method | Wall mount | ||
| Sensor | Temperature Compensation | Automatic temperature compensation | |
| Protection Level | ip68 | ||
| Temperature | 0-60℃ | ||
| Sensor Material | PVC | ||
| Cable Length | Dedicated PH cable, standard 5 meters (extendable) | ||
| Operating Temperature | 0-60℃ | ||
| Storage Temperature | -10-60℃ | ||
| Installation Method | Bracket drop-in installation | ||
| Ordering Information Selection Table | ||
| KPH500 | PH/ORP analyzer | |
| Power supply | DC24V | |
| AC220V | ||
| Cable length | 5m | |
| 10m | ||
| 15m | ||
| 20m | ||
| Temperature compensation | Sensor without temperature compensation | |
| Sensor with temperature compensation | ||
| Signal output | Only 4-20mA | |
| Only 485 | ||
| Also with 4-20mA , 485 signal output | ||
| Special custom signal | ||
| KPH500-P-DC24V-5m-Sensor without temperature compensation-Only 485 | PH host, with DC24V adapter, cable between host and sensor,The cable length is 5 meters, the sensor is equipped without temperature compensation, and is only 485 communication. | |
| KPH500-R-AC220V-10m-Sensor with temperature compensation-Only 485 |
Optional ORP host, with 220V adapter, line between host and sensor |
|
Q&A
1.How to choose the right pH buffer?
Calibrating a pH electrode usually requires two buffers of different pH values. First, find out what the sample's pH is
Then select the appropriate buffer to calibrate: a buffer with a lower pH than the sample and a buffer with a higher pH than the sample.
| Standrd sort | Reference temperature | The buffer group |
| chinese/JJG 119 | 25℃ | 1.680 4.003 6.864 9.182 12.460 |
| MT(USA) | 25℃ | 1.68 4.01 7.00 10.01 |
| MT(EUR) | 25℃ | 2.00 4.01 7.00 9.21 11.00 |
| Japan/JIS Z 8802 | 25℃ | 1.679 4.008 6.865 9.180 |
2.How to activate the electrode?
If the performance of the electrode degrades, the electrode can be regenerated by immersing the glass film in the electrode regeneration liquid.
Then clean it carefully with deionized water!
If the electrode glass film is damaged, it cannot be activated and regenerated.
3.How long is the electrode life?
The life of the pH electrode is related to the properties of the measured sample, the temperature of the sample and the frequency of use, and the maintenance of the electrode.In normal use,
Under the condition of proper maintenance, the pH electrode life is about 1 year.
4.How to deal with the salt deposit attached to the electrode?
Clean the salt deposits attached to the surface with distilled water.If sediment cannot be washed off the surface, contact customer Service.
5.Is pH 2.5 skin safe?
On the other hand, using highly acidic (pH 2.5 or lower) or alkaline (pH 8 or greater) products causes a more significant disruption in skin's pH, so it takes skin longer to get back to normal. During this extra time, skin is vulnerable to factors that can trigger breakouts, signs of eczema, redness and sensitivity.
