| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE |
| Model Number: | KFDO300 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $0-$700 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 3-10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Measurement Parameter: | Dissolved Oxygen, Temperature | Method Of Measurement: | Fluorescence Quenching |
|---|---|---|---|
| Measurement Mode: | Immersion Measurement | Measuring Range: | Do: (0 ~ 20) Mg/L Or (0 ~ 200)% Temperature: (0 ~ 60) °C |
| Accuracy: | ± 0.3 Mg/L | Repeatability: | ± 0.3 Mg/L |
| High Light: | Fluorescence Quenching Dissolved Oxygen Sensor,60s Response Time Dissolved Oxygen Sensor,Immersion Measurement Dissolved Oxygen Probe |
||

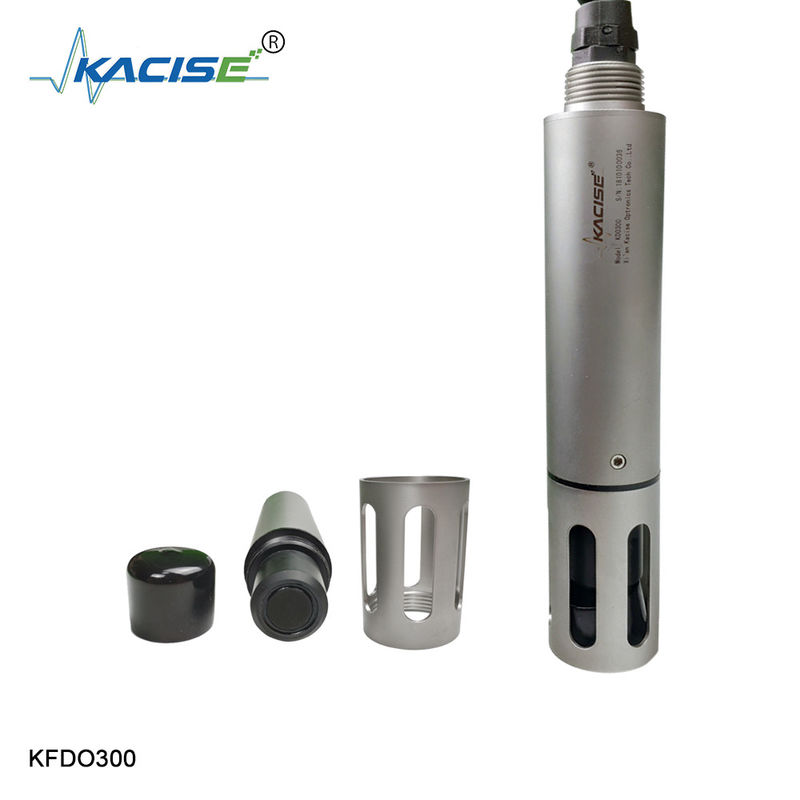

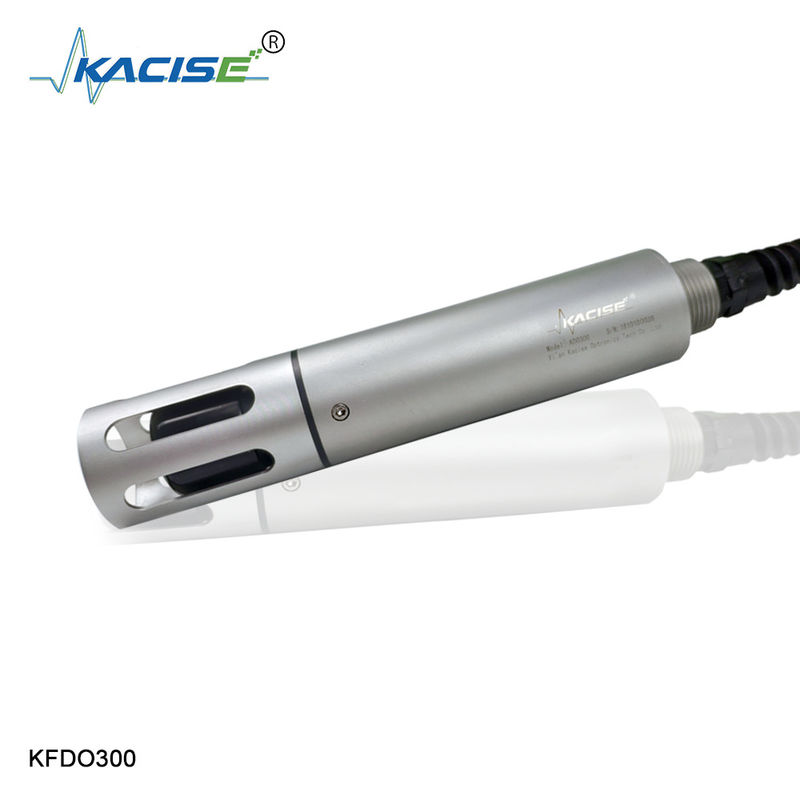

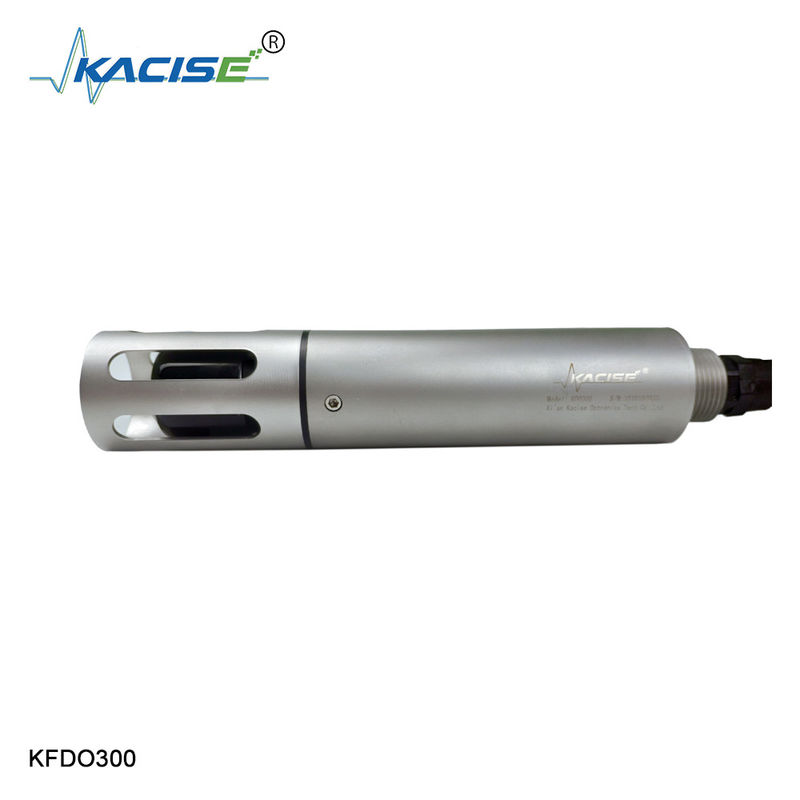

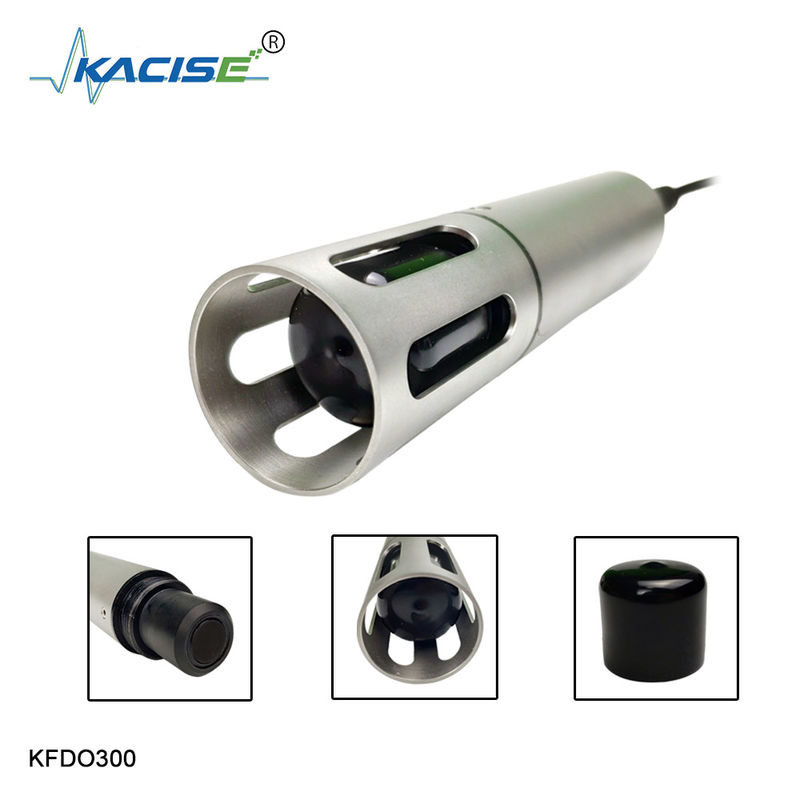

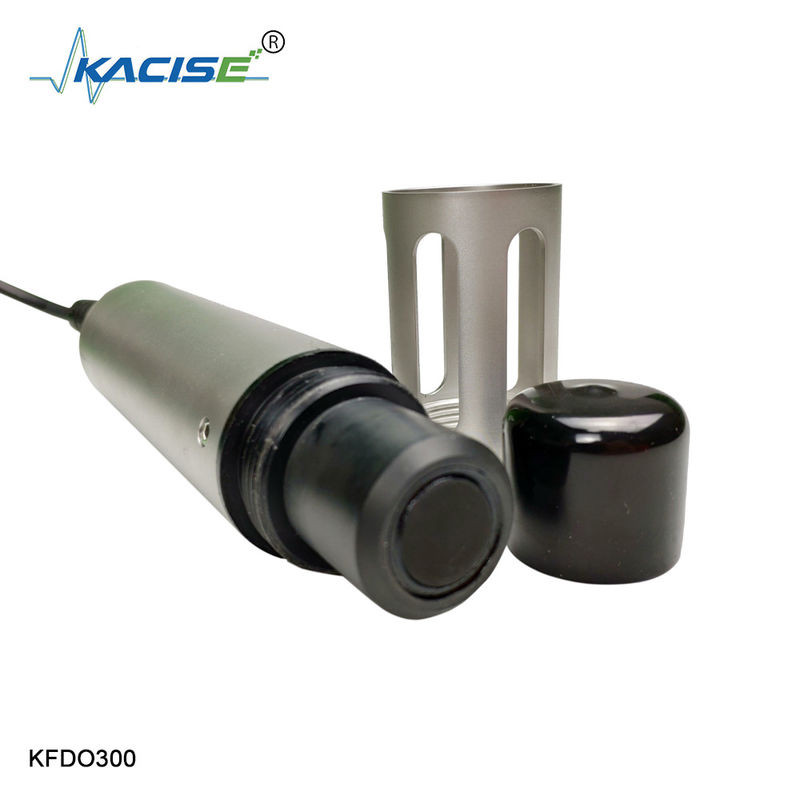

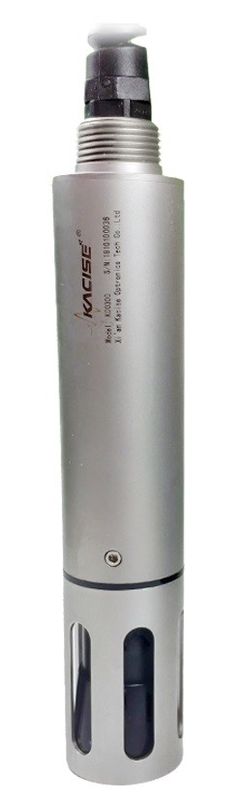

The KFDO300 online fluorescence dissolved oxygen sensor is a water quality monitoring sensor designed for online applications, utilizing the OSA optical water quality analysis platform. This integrated sensor incorporates advanced oxygen sensing technology through the fluorescence quenching method. It embraces a digital and intelligent sensor design concept, integrating temperature detection, and offering features like automatic temperature compensation and digital signal conversion within the instrument. With RS485 signal output, it facilitates easy networking and system integration, making it suitable for a wide range of applications in surface water, pollution sources, and various industries.
Characteristics
Integrated Design:
The sensor features an integrated design to resist electromagnetic interference.
Built-in Temperature Sensor:
Equipped with a built-in temperature sensor for real-time temperature compensation.
Salinity and Air Pressure Compensation:
The sensor supports compensation for salinity and air pressure.
Stainless Steel Case:
Housed in a stainless steel case, providing durability and a waterproof rating of IP68.
Suitability for Various Working Conditions:
Designed to withstand diverse working conditions.
RS485 Signal Output:
The sensor offers RS485 signal output for data transmission.
Standard Modbus Protocol:
Adheres to the Standard Modbus protocol for seamless integration.
Easy Integration and Networking:
Facilitates easy integration into systems and networking setups.
| Water Quality Sensor Model | KFDO300 |
| Water Quality Sensor Measurement parameter | Dissolved oxygen, temperature |
| Water Quality Sensor Method of measurement | Fluorescence quenching |
| Water Quality Sensor Measurement mode | Immersion measurement |
| Water Quality Sensor Measuring range |
Do: (0 ~ 20) mg/L or (0 ~ 200)% Temperature: (0 ~ 60) °C |
| Water Quality Sensor Accuracy | ± 0.3 mg/L |
| Water Quality Sensor Repeatability | ± 0.3 mg/L |
| Water Quality Sensor Resolution | 0.01 mg/L |
| Water Quality Sensor Response time | ≤60s |
| Water Quality Sensor Zero Drift (24h) | ± 0.3 mg/L |
| Water Quality Sensor Range Drift (24h) | ± 0.3 mg/L |
| Water Quality Sensor Accuracy of temperature compensation | ± 0.3 mg/L |
| Water Quality Sensor Calibration period | Six months |
| Water Quality Sensor Temperature range | (0 ~ 60) °C |
| Water Quality Sensor Protection level | IP68 |
| Water Quality Sensor MTBF | ≥1440h/Time |
| Water Quality Sensor Means of communication | RS485(Modbus RTU) , maximum baud rate 115200 bps |
