| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE |
| Model Number: | KSC300 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $0-$700 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 3-10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Measurement Mode: | Immersion Measurement | Measuring Range: | Sludge Concentration: (0 ~ 25000/50000) Mg/L Temperature: (0 ~ 60) °C |
|---|---|---|---|
| Accuracy: | ≤ ± 5% | Repeatability: | ≤3% |
| Method Of Measurement: | Infrared Scattering Method | Measurement Parameter: | Sludge Concentration, Temperature |
| High Light: | Sludge Concentration Water Quality Sensor,Immersion Measurement Water Quality Monitoring Sensors,IP68 Water Quality Monitoring Sensors |
||

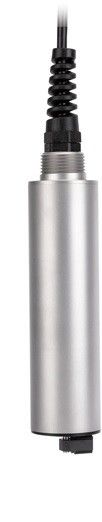

KSC300 online sludge concentration Sensor is an online Sensor for water quality based on OSA optical water quality analysis platform. Integrated design, using infrared dispersive light method, digital, intelligent sensor design concept, can automatically compensate for voltage fluctuations, device aging, temperature changes on the measured value. RS485 signal output, easy networking and system integration, widely used in municipal, pollution sources and other industries.
Integrated design, immune to electromagnetic interference
High brightness infrared LED is used as light source to eliminate the influence of sample color
The unique optical and electronic filtering technology is used to eliminate the influence of ambient light on the measurement
Cleaning brush automatic cleaning, greatly reducing the maintenance workload
Stainless steel case, IP68 waterproof grade, suitable for various working conditions
RS485 signal output, Standard Modbus protocol, easy integration, networking
| Water Quality Sensor Model number | KSC300 |
| Water Quality Sensor Measurement parameter | Sludge concentration, temperature |
| Water Quality Sensor Method of measurement | Infrared scattering method |
| Water Quality Sensor Measurement mode | Immersion measurement |
| Water Quality Sensor Measuring range |
Sludge concentration: (0 ~ 25000/50000) mg/L Temperature: (0 ~ 60) °C |
| Water Quality Sensor Accuracy | ≤ ± 5% |
| Water Quality Sensor Repeatability | ≤3% |
| Water Quality Sensor Resolution | 1 mg/L |
| Water Quality Sensor Detection limit | 5 mg/L |
| Water Quality Sensor Response time | ≤5s |
| Water Quality Sensor Zero Drift (24h) | ≤ ± 3% F.S. |
| Water Quality Sensor Range Drift (24h) | ≤ ± 3% F.S. |
| Water Quality Sensor Calibration period | Six months |
| Water Quality Sensor Temperature range | (0 ~ 60) °C |
| Water Quality Sensor Protection level | IP68 |
| Water Quality Sensor Cleaning mode | Automatic cleaning of mechanical brush |
| Water Quality Sensor MTBF | ≥1440h/Time |
| Water Quality Sensor Means of communication |
RS485(Modbus RTU) , maximum baud rate 115200 bps |
| Water Quality Sensor Supply voltage | (12/24) V DC |
| Water Quality Sensor Power consumption |
< 1W (in non-cleaning mode) |
| Water Quality Sensor Material Quality | Stainless steel, POM |
| Water Quality Sensor Weight | 0.5 kg |
| Water Quality Sensor Contour dimension | 160 mm × φ40 mm |
