Place of Origin:
CHINA
Brand Name:
kacise
Certification:
CE
Model Number:
KTM600

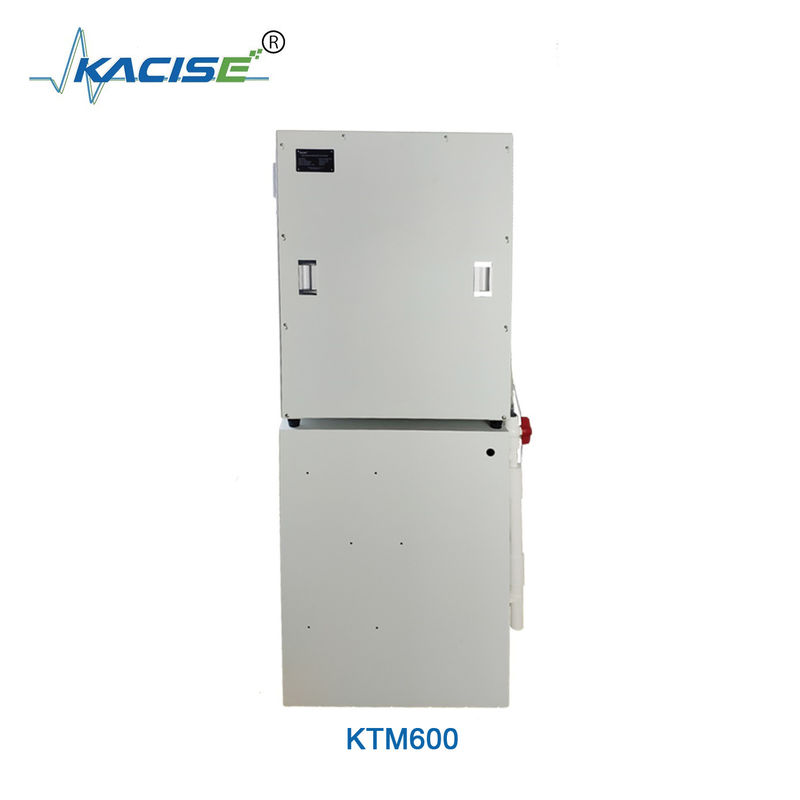

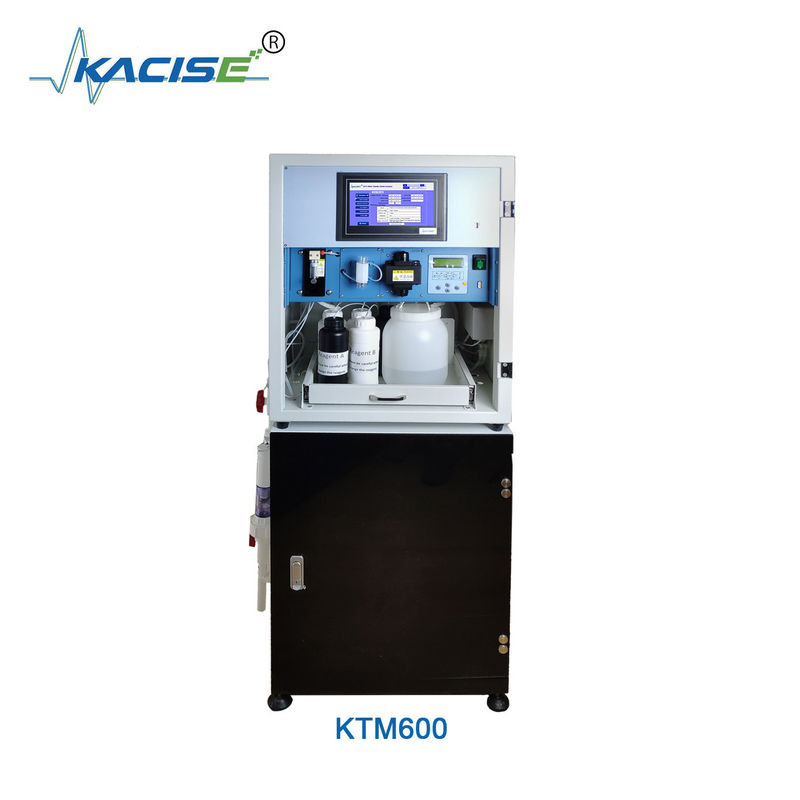

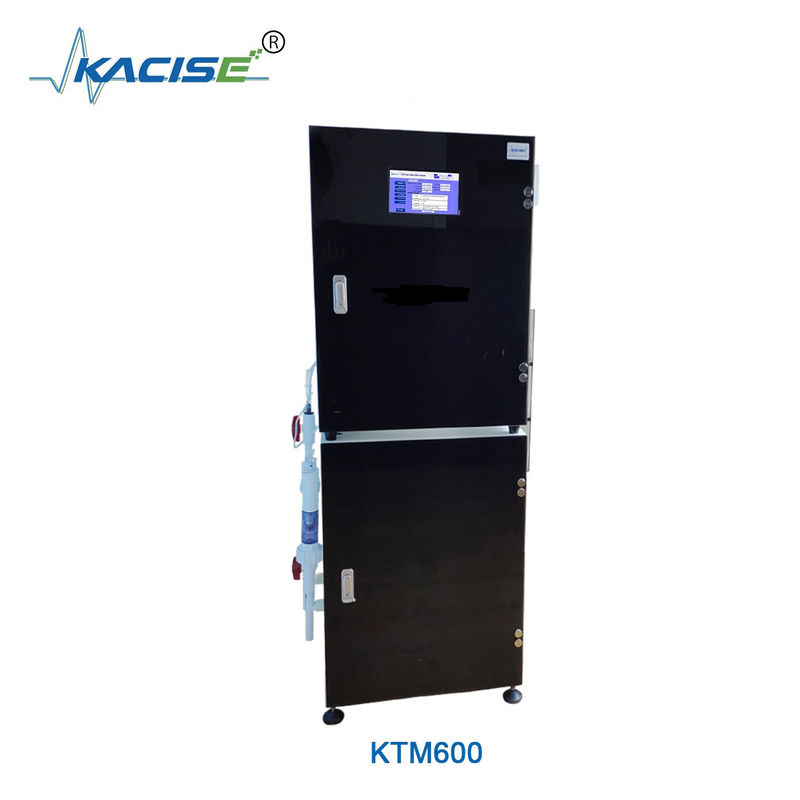

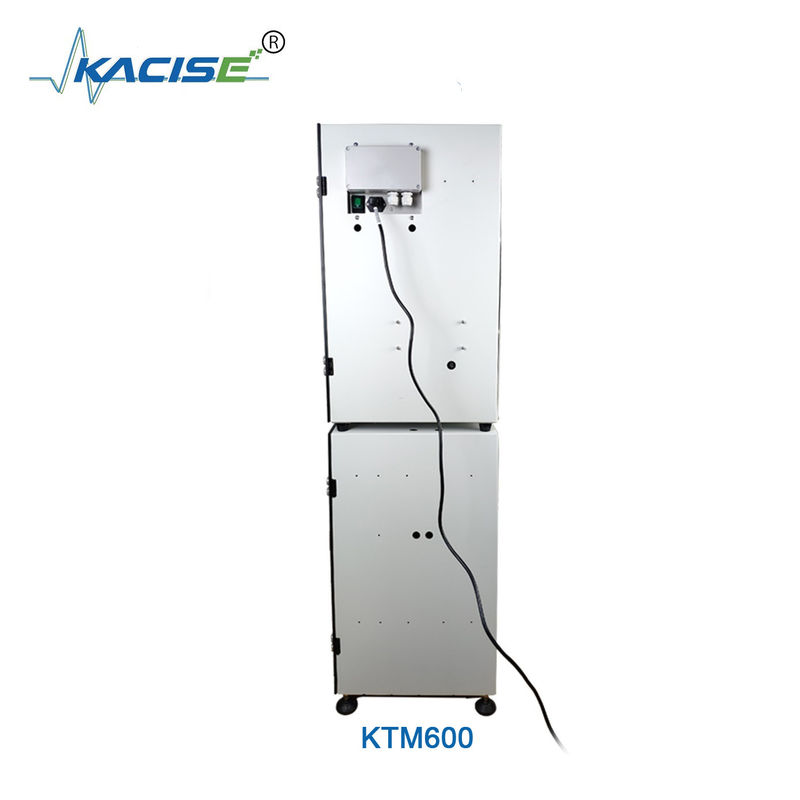

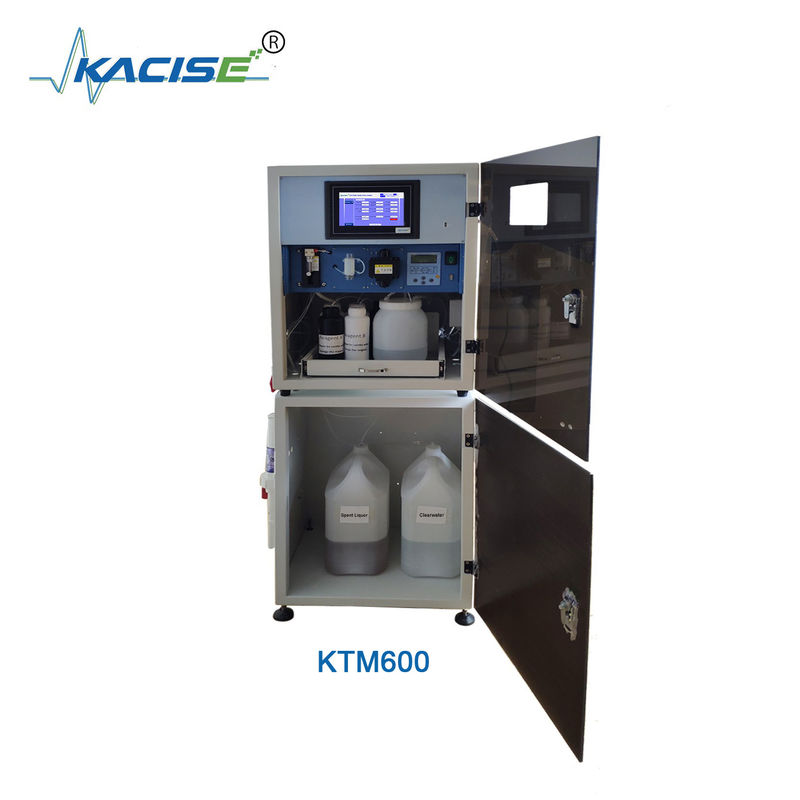

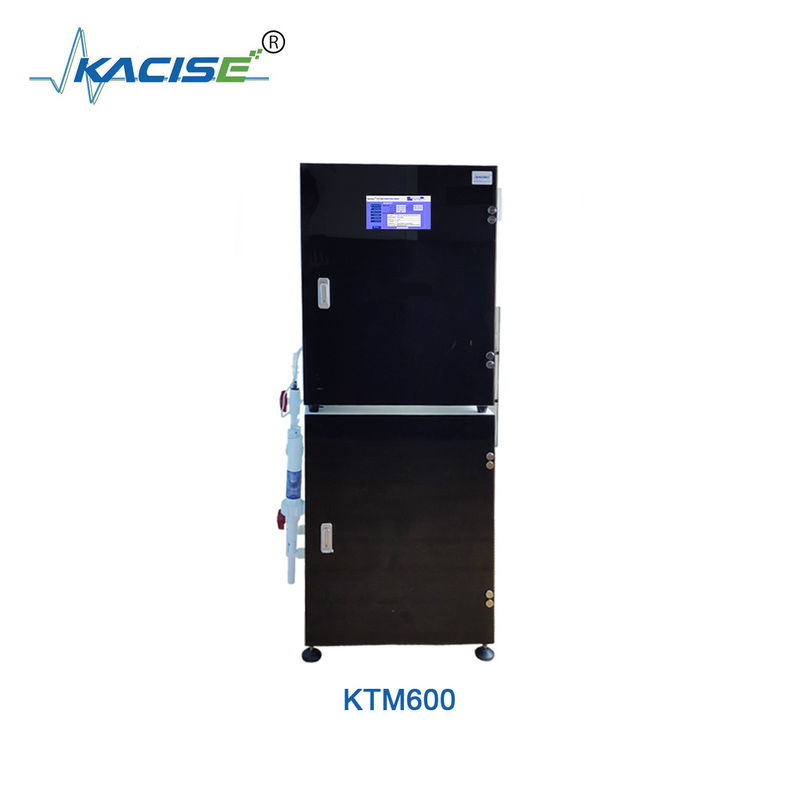

| Model | KTM600 |
| Monitoring Factor | Total manganese |
| Method | Formaldoxime Spectrophotometer |
| Range | (0.02-80) mg/L expandable |
| Measurement mode |
Manual measurement, continuous measurement, periodic measurement, fixed-point measurement, automatic calibration measurement, standard solution verification |
| Measurement period | 30 minutes to 24 hours, with adjustable expansion |
| Zero Drift | ± 5% F. S |
| Range Drift | ± 5% F. S |
| Repeatability | ≤5% |
| Accuracy | ± 5% |
| MBTF | > 720 hours |
| Stored data | Five years of data storage |
| Communication interface | 4-20mA, RS232, RS485, dry contact |
| Contour Dimension | 505 * 395 * 671(mm) |
Manganese exists in water, which is more harmful to drinking water than iron. Water with too much manganese can contaminate the wash and give it a foul smell. Manganese also contaminates the Ion-exchange resin and causes fouling on the heating surfaces of boilers. Manganese is not easy to be oxidized in water, so it is difficult to be removed in the purification process.
Principle: the water sample reacts with the reductive reagent, reducing all forms of manganese in the water sample to divalent manganese ion, then adjusting the PH value of the solution, finally adding the characteristic chromogenic reagent to react to form the brown complex, the absorbance of the complex is proportional to the total manganese concentration in the water sample, and the total manganese content in the water sample can be obtained by measuring the absorbance of the complex.
It is suitable for laboratory Analyzer or industrial production process water, sewage, urban domestic sewage, river, lake, sea and other surface water testing.
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
