Dissolved Oxygen Sensor Measuring Range: | 0~20mg/L | Dissolved Oxygen Sensor Accuracy: | ±0.6mg/L |
---|---|---|---|
Dissolved Oxygen Sensor Resolution: | 0.01mg/L | Turbidity Sensor Measuring Range: | 0~200NTU, 0~1000NTU |
Turbidity Sensor Accuracy: | <3%F.S. | Turbidity Sensor Resolution: | 0.1NTU |
High Light: | 1000NTU Turbidity Multi Parameter Sensor,Auto Cleaning Multi Parameter Sensor,ORP Multi Parameter Water Quality Sensor |

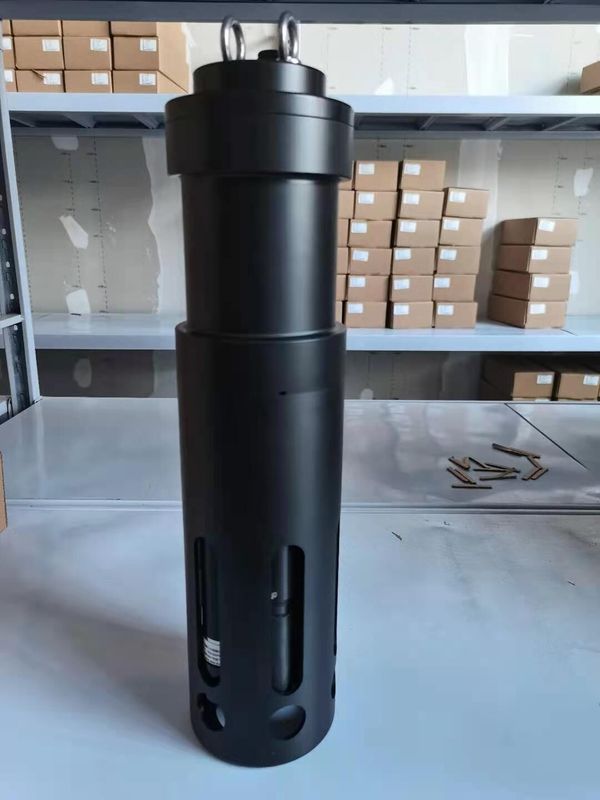

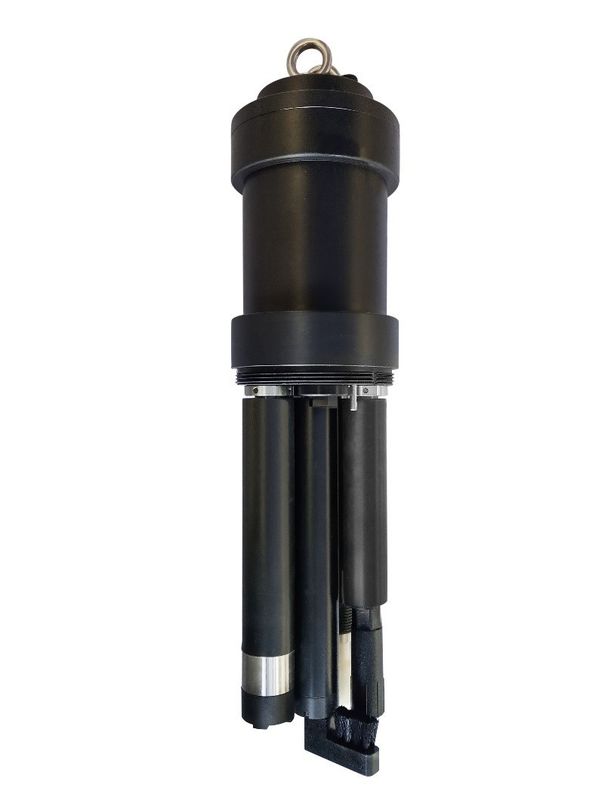

The online multi-parameter self-cleaning digital sensor is integrated and designed to be reliable and easy to use. Up to 6 parameters can be measured simultaneously. The sensor types can be selected such as dissolved oxygen, pH, ORP, conductivity/salinity, ammonia nitrogen, turbidity, etc. Using RS-485 bus (Modbus/RTU) communication protocol, data can be directly transmitted to the acquisition platform.
The online multi-parameter water quality sensor is equipped with an automatic cleaning device, which can set the automatic cleaning interval and the number of automatic cleaning cycles to suit the water quality of different cleaning levels. The automatic cleaning device can effectively clean the sensor surface to prevent microbial adhesion and greatly reduce maintenance costs. Each sensor is equipped with a quick-release waterproof connector for easy assembly and disassembly.

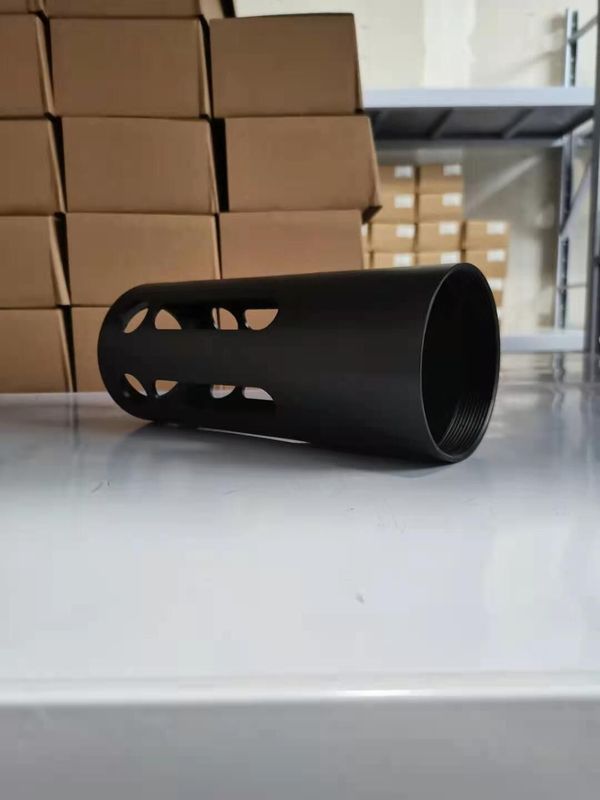

The sensor cover at the front end is used to protect the internal sensor from damage. The cover is covered with a slot to prevent large suspended particles and biological damage to the sensor probe without affecting the accuracy of the measurement.
Features
Dissolved oxygen sensor | |
Measuring range | 0~20mg/L |
Accuracy | ±0.6mg/L |
Resolution | 0.01mg/L |
Turbidity sensor | |
Measuring range | 0~200NTU, 0~1000NTU |
Accuracy | <3%F.S. |
Resolution | 0.1NTU |
Conductivity / salinity sensor | |
Measuring range |
0~5000uS/cm 0~200mS/cm 0~70PSU |
Accuracy | ±1.5% F.S. |
Resolution |
0~5000uS/cm:1uS/cm 0~200mS/cm:0.1mS/cm 0~70PSU:0.1PSU |
pH sensor | |
Measuring range | 0~14pH |
Accuracy | ±0.1pH |
Resolution | 0.01pH |
ORP sensor | |
Measuring range | -1500mV~+1500mV |
Accuracy | ±6mV |
Resolution | 1mV |
Ammonia nitrogen sensor | |
Measuring range | 0~100mg/L or 0~1000mg/L |
Accuracy | ±10% or ±2mg/L |
Resolution | 0.1mg/L |
Temperature | |
Measuring range | 0~50℃ |
Accuracy | ±0.5℃ |
Resolution | 0.1℃ |
Other Information of Multi-parameter sensor | |
Output | RS-485(Modbus/RTU) |
Cleaning method | Automatic cleaning |
power supply | 12VDC±5% |
Cable length |
|
Structure diagram
Note: The sensor measurement is installed with a lifting ring or 4NPT pipe thread to avoid direct cable stress.
