| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE |
| Model Number: | KPH310 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $0-$2000 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 3-10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Range Range: | 0 ~ 14 Ph | Resolution: | 0.01 Ph |
|---|---|---|---|
| Precision: | ± 0.1 Ph | Operating Temperature: | 0 ~ 65 °C |
| Working Pressure: | < 0.2 Mpa | Temperature Compensation: | Automatic Temperature Compensation (NTC) |
| High Light: | Pom Material Water PH Sensor,Double High Impedance Water PH Probe |
||

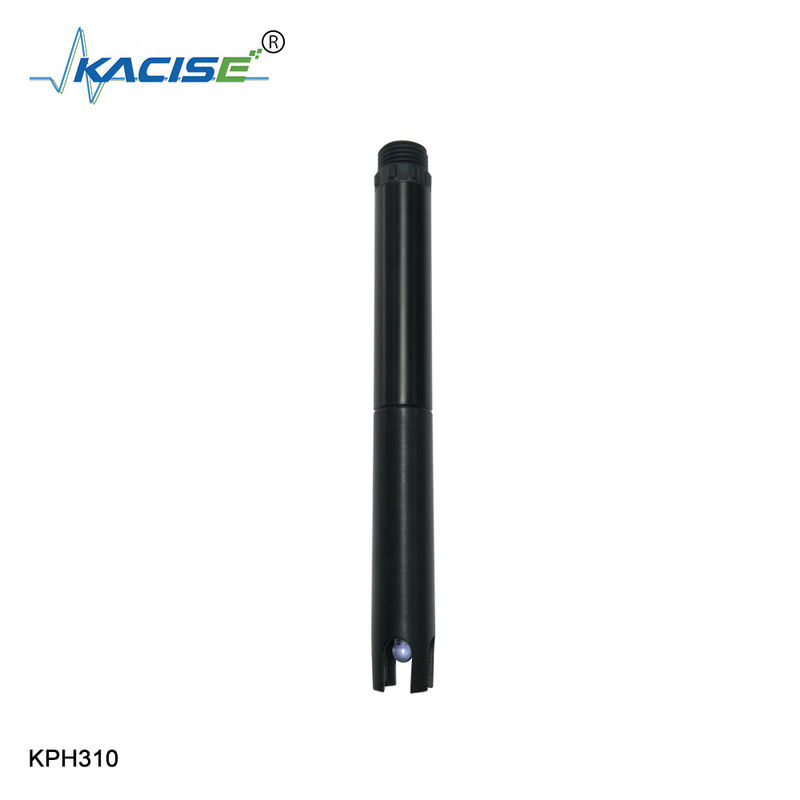

Introduction
pH sensor is a sensor used to detect the concentration of hydrogen ions in the measured substance and convert it into the corresponding available output signal.
feature
1. Fast cable connector, waterproof function, avoid cable twisting phenomenon during installation;
2. Long life, good performance in toxic ion aqueous solution;
3. A variety of installation methods, easy to assemble;
4. Strong resistance to chemical corrosion, integral seal, eliminate leakage phenomenon.
For environmental water quality monitoring, acid/alkali/salt solution, chemical reaction process, industrial production process, can meet the majority of industrial applications on-line pH measurement requirements.
| Model Number | KPH310 |
| Range Range | 0 ~ 14 Ph |
| Resolution | 0.01 ph |
| Precision | ± 0.1 ph |
| Operating Temperature | 0 ~ 65 °C |
| Working Pressure | < 0.2 mpa |
| Temperature Compensation | Automatic temperature compensation (NTC) |
| Power Supply | 12 ~ 24 VDC ± 10% |
| Signal Output | RS-485(Modbus/RTU) |
| Contact Material | Pom |
| Installation Mode | Immersion mounting |
| Cable Length | 5 meters, other length can be customized |
| Calibration Mode | Two-point calibration |
| Power Consumption | < 0.05 W |
| Protection Level | IP68 |
Tips:Q&A
1.What is pH?
pH is a measure of how acidic/basic water is. The range goes from 0 to 14, with 7 being neutral. pHs of less than 7 indicate acidity, whereas a pH of greater than 7 indicates a base. The pH of water is a very important measurement concerning water quality.
2.What does ppm stand for in pools?
parts per million
By Steve Donohoe. As pool service guys, we use the term parts per million several times a day when checking the chemical parameters of a swimming pool. It's the unit of measure that we use for chlorine, alkalinity, salt, TDS, cyanuric acid, and so on.
3.Is pH 10 Water Safe?
There has been no evidence of harm found in drinking water with a pH of between 7 and 8.5. (Interesting to note: The pH of human blood is a little on the basic side, 7.365.) When the PH of water becomes greater than 8.5, water taste can become more bitter.
