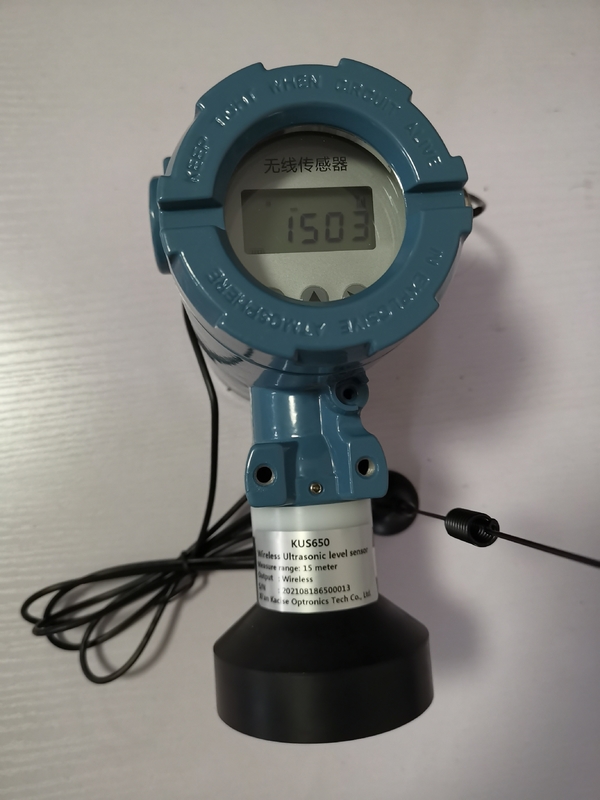

Intelligent Waterproof Ultrasonic Fluid Level Sensor 25khz DC3.6V

Intelligent Waterproof Ultrasonic Fluid Level Sensor 25khz DC3.6V

  • Intelligent Waterproof Ultrasonic Fluid Level Sensor 25khz DC3.6V
Intelligent Waterproof Ultrasonic Fluid Level Sensor 25khz DC3.6V
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KUS650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: Digital Sensor Theory: Ultrasonic Sensor
Type: Waterproof Center Frequency: 25khz +- 1khz
Color: Blue And Black Application: Home Automation
High Light:

Waterproof Ultrasonic Fluid Level Sensor

,

Ultrasonic Fluid Level Sensor 25khz

,

DC3.6V Ultrasonic Fluid Level Sensor

ultrasonic fluid level sensor



The KUS650 series intelligent wireless level/level sensor is an intelligent digital display product with high precision and high stability. Suitable for real-time measurement and display of liquid level/level. The product uses a dedicated wide temperature LIQUID crystal display, high stability sensor, and through precision digital temperature compensation and nonlinear correction technology carefully manufactured to ensure high precision and high stability of liquid level/level measurement. The built-in wireless module uses the network to provide users with wireless long-distance data transmission with low power consumption, and sends all status data of sensors to the cloud background management server in real time to realize alarm linkage and data statistical analysis with the smart cloud platform.



Parameters



Enter
Measured variable Liquid

level, material level



Maximum measuremen trange

1.2-30m (can be customized according to demand)



Output
Comprehensive accuracy ±0.15%FS/ 0.15℃
Temperature compensation -10℃~70℃
Vibration effects < ± 0.05%/g, 500Hz in all directions (according to IEC 68-2-64)

Rated conditions

environmental conditions

Ambient temperature -25~+85℃
Storage temperature -40~+85℃
Protection class IP68 , according to EN 60529
Electromagnetic Compatibility EN 61326/A2 Annex A (2001)
Display and control
Display SFTN liquid crystal, white backlight, 5-digit display.
Limit value Free setting
Parameter setting Use 3 buttons
Unit

The unit is mm, and the default unit is m.



Weight

about 1.35kg



Materials of non-wetted parts
Joint 1NPT, stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements).
Electrical connection

Make waterproof connector, air vent cable entry according to EN 175301-803A standard



Measurement period

≤ 100ms





Application field

• Fire water system.

• City water supply.

• Sewage treatment.

• Long distance heating supply.

• Food industry.

• power chemical or oil industry.



Storage and transportation

1. The product should be stored at -40℃~+80℃, relative humidity not more than 90%, ventilated, dry and non-corrosive gas warehouse.

2. The product, the certificate of conformity and the instruction manual are packed in one package, and strong collision is strictly prohibited during transportation.

Note: The contents of the manual are subject to change without prior notice, please pay attention to keep in touch.



Communication methods

1. MODBUS communication

There are two types of MODBUS protocols: MODBUS-RTU (commonly used in China)

MODBUS-ASCII

The communication protocol of this instrument complies with the MODBUS-RTU communication protocol

Suppose the instrument parameters are: the instrument address is set to 1; the communication baud rate is 9600; the invalid check digit; the decimal point is 0; the unit is KPa;

2. Wireless communication (NB-IoT/4G/LoRa)

According to the different needs of users, wireless communication has different transmission methods and protocol contents. Please inquire for details.
