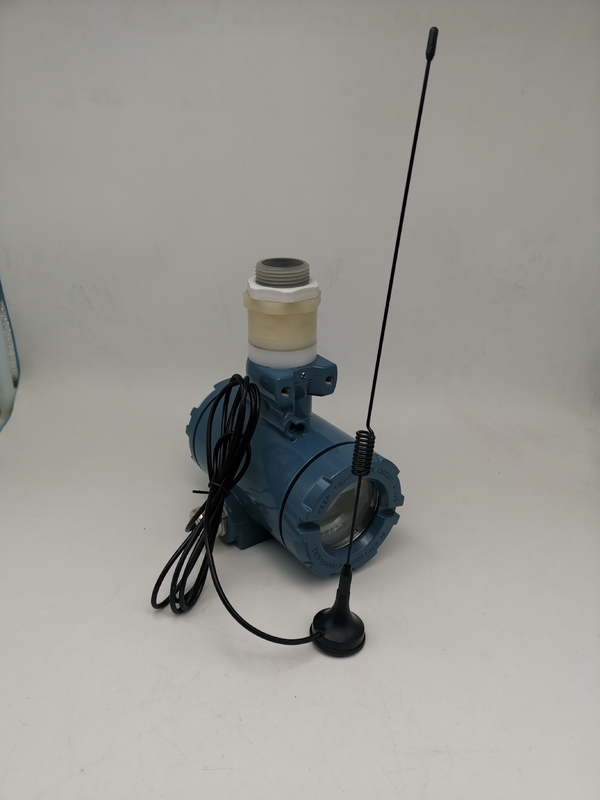

KUS650 Ultrasonic Tank Wireless Level Sensor For Sewage Treatment

KUS650 Ultrasonic Tank Wireless Level Sensor For Sewage Treatment

  • KUS650 Ultrasonic Tank Wireless Level Sensor For Sewage Treatment
KUS650 Ultrasonic Tank Wireless Level Sensor For Sewage Treatment
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KUS650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Protection: IP65 Detection Range: 200mm~3000mm
Model: KUS650 Name: Ultrasonic Tank Level Sensor
Applied For: Fire Water System Brand: Kacise
High Light:

RTU Ultrasonic Wireless Level Sensor

,

IP65 Tank Wireless Level Sensor

,

3000mm LCD Wireless Level Sensor

KUS650 ultrasonic tank level sensor



 Product overview

KUS650 series intelligent wireless digital wireless liquid level/level sensor is an intelligent digital display product with high precision and high stability introduced by our company. Suitable for real-time measurement and display of liquid level/material level. This product adopts special wide temperature liquid crystal display, high stability sensor, and is carefully manufactured through precise digital temperature compensation and nonlinear correction technology to ensure the high precision and high stability of liquid level/level measurement. The built-in wireless module uses the network to provide users with wireless long-distance and low-power data transmission, and sends all the status data of the sensor to the cloud background management server in real time to realize alarm linkage and data statistical analysis with the smart cloud platform.



Application



• Fire water system

• City water supply

• Sewage treatment

• Long-distance heating

• Food industry

• Chemical, energy



parameters



Enter

Measured variable Liquid

level, material level



Maximum measuremen trange

1.2-30m (can be customized according to demand)



Output

Comprehensive accuracy

±0.15%FS/ 0.15

Temperature compensation

-10℃~70

Vibration effects

± 0.05%/g, 500Hz in all directions (according to IEC 68-2-64)

Rated conditions

environmental conditions

Ambient temperature

-25+85

Storage temperature

-40+85

Protection class

IP68 , according to EN 60529

Electromagnetic Compatibility

EN 61326/A2 Annex A (2001)

Display and control

Display

SFTN liquid crystal, white backlight, 5-digit display.

Limit

value Free setting

Parameter

setting Use 3 buttons

Unit

The unit is mm, and the default unit is m.



Weight

about 1.35kg



Materials of non-wetted parts

Joint

 1NPT, stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements).

Electrical connection

 Make waterproof connector, air vent cable entry according to EN 175301-803A standard



Measurement period

≤ 100ms





parameter settings



1 Sending time setting

Operation code: 2121 units (minutes)

In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2121"; press the "M" key to confirm, Display "S_TIM", press "M" key, display "00000" (last setting value), and set the value (range 1) by "up" key (data left key) and "down" key (data increase key) ~09999), press "M" key to confirm and save after adjustment is completed.

2 Collection time interval setting

Operation code: 2122 units (seconds)

In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2122"; press the "M" key to confirm, Display "S_FrE", press "M" key, display "00000" (last setting value), set the value (range 1~09999) with "up" and "down" keys, press "M" after adjustment is completed Press to confirm and save. On time interval setting.

3 Data upload method setting

Operation code: 2124

In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2124"; press the "M" key to confirm, Display "S.MOdE", press "M" key, display "Last set value", set by "Up" and "Down" keys, press "M" key to confirm and save after adjustment is completed.

4 Alarm interval time setting

Operation code: 2125 units (minutes)

In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2125"; press the "M" key to confirm, Display "S_ErT", press "M" key, display "00000" (last setting value), set the value (range 1~09999) by "up" and "down" keys, press "M" after adjustment is completed Press to confirm and save.

5 Liquid level/material level alarm upper limit setting

Operation code: 2311

In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2311"; press the "M" key to confirm, Display "Ad1H", press the "M" key to set the upper limit alarm value, set the value through the "up" and "down" keys, the "Ad1F" alarm upper limit return difference, the "Ad1d" alarm upper limit delay, all adjustments After completion, press the "M" key to confirm and save.

6 Liquid level/level alarm lower limit setting

Operation code: 2312

In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "2312"; press the "M" key to confirm, Display "Ad2H", press the "M" key to set the upper limit alarm value, set the value through the "up" and "down" keys, the "Ad2F" alarm upper limit return difference, the "Ad2d" alarm upper limit delay, all adjustments After completion, press the "M" key to confirm and save.

7 Instrument zero

Operation code: 1000

In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "1000"; press the "M" key to confirm, Display "bd_0" and press the "up and down" keys to select "NO (exit without calibration) or YES (calibrate zero)". Press the "M" key to confirm saving and exit.

8 Meter zero cut

Operation code: 1511

In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "1511"; press the "M" key to confirm, Display "CUTO", press "M" key, display "00000" (last setting value), set the value (range 1~29999) by "up" and "down" keys, press "M" after adjustment is completed Press to confirm and save.

9 Meter offset setting

Operation code: 1510

In the measurement state, press the "M" key to display "-COd-"; press the "M" key to confirm, display "00000", the ones digit flashes, press the "up and down" keys to adjust to "1510"; press the "M" key to confirm, Display "OFSET", press "M" key, display "00000" (the last set value), set the value (range -19999~29999) with "up" and "down" keys, press "M" after adjustment "Key to confirm and save.



way of communication

1 MODBUS communication

There are two types of MODBUS protocol: MODBUS-RTU (commonly used in China)

MODBUS-ASCII

The communication protocol of this instrument complies with the MODBUS-RTU communication protocol

Assuming that the instrument parameters are: The address of the instrument is set to 1; the communication baud rate is 9600; the invalid check digit; the decimal point is 0; the unit is KPa;

2 Wireless communication(NB-IoT/4G/LoRa)

According to different user needs, wireless communication has different transmission methods and protocol contents. Please consult for specific content.



Installation and maintenance

1 Installation

1) The meter should be installed on a vertical horizontal plane.

2) Pay attention to the range matching when using with other instruments.

3) Before installing the digital meter on the equipment, first check whether the meter head is clean. During use, the pipeline should be kept clean.

2 Maintenance

1) The instrument is a high-precision instrument and should be placed in a place with air circulation, easy to observe, easy to maintain and operate.

2) Although the digital sensor can exceed the range during use, long-term use will affect the accuracy of the measurement and may damage the meter. It is recommended that the user use the meter according to the range.

3) When the LCD screen of the wireless digital meter displays the battery voltage as blank, please replace the battery to ensure the normal operation of the measurement.

Note: The rechargeable battery can be charged, and the charging time is 3~4 hours.



Storage and transportation

1. The product should be stored at -40℃~+80℃, relative humidity not more than 90%, ventilated, dry, and non-corrosive gas warehouse.

2. The product is packed in the same package with the certificate and instruction manual. Strong collisions are strictly prohibited during transportation.

Note: The contents of the manual are subject to change without notice, please pay attention to keep in touch.
