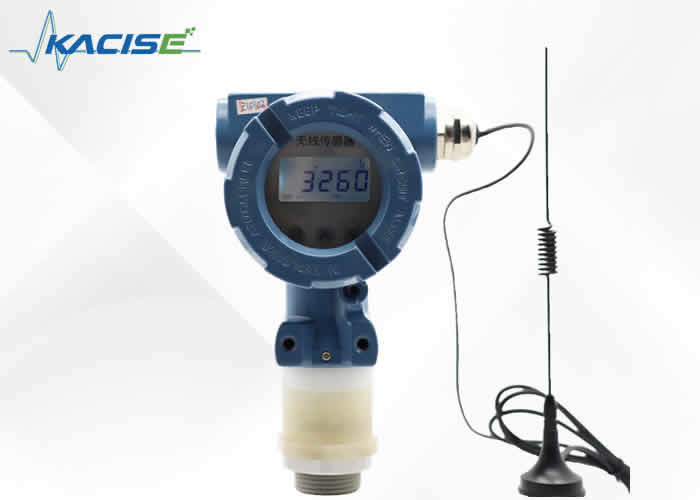

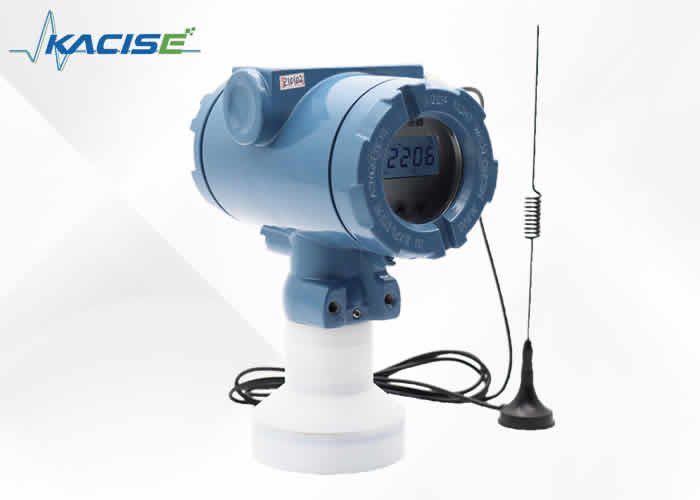

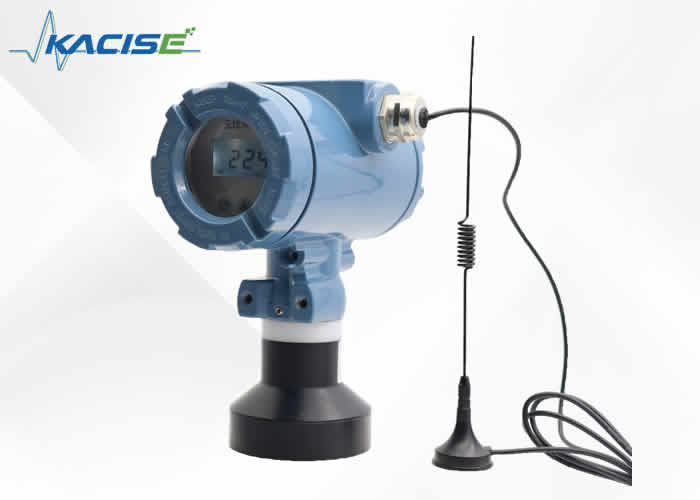

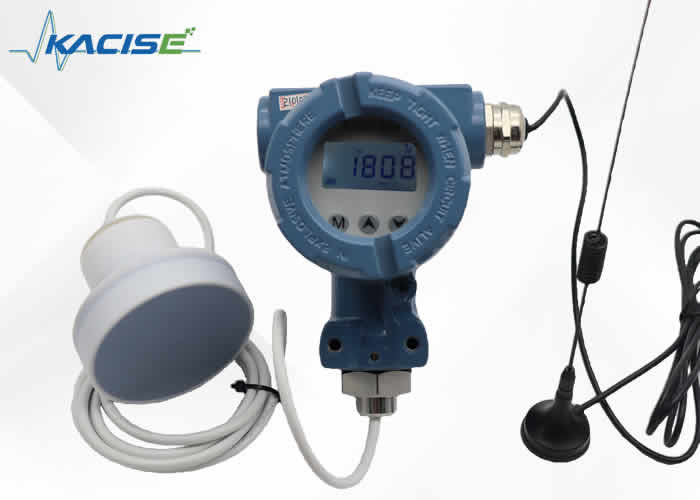

KUS650 Ultrasonic Level Sensor
1.Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.
2.Application
KUS650 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:
• Fire water system • City water supply
• Sewage treatment • Long-distance heating
• Food industry • Chemical, energy
3.Features
. Designed for outdoor or indoor environments
. High sensitivity
. Free run operation can continually measure and output ranger information
. Sensor beam angle is 7 degrees.
4.Technical parameters
| Enter |
| Measured variable Liquid |
level, material level
|
| Maximum measuremen trange |
1.2-30m (can be customized according to demand)
|
| Output |
| Comprehensive accuracy |
±0.15%FS/ 0.15℃ |
| Temperature compensation |
-10℃～70℃ |
| Vibration effects |
< ± 0.05%/g, 500Hz in all directions (according to IEC 68-2-64) |
|
Rated conditions
environmental conditions
|
| Ambient temperature |
-25～+85℃ |
| Storage temperature |
-40～+85℃ |
| Protection class |
IP68 , according to EN 60529 |
| Electromagnetic Compatibility |
EN 61326/A2 Annex A (2001) |
| Display and control |
| Display |
SFTN liquid crystal, white backlight, 5-digit display. |
| Limit |
value Free setting |
| Parameter |
setting Use 3 buttons |
| Unit |
The unit is mm, and the default unit is m.
|
| Weight |
about 1.35kg
|
| Materials of non-wetted parts |
| Joint |
1NPT, stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements). |
| Electrical connection |
Make waterproof connector, air vent cable entry according to EN 175301-803A standard
|
| Measurement period |
≤ 100ms |
Selection reminder: For special requirements, please contact our company and indicate in the order.
Precautions:
1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.
2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
