| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KSACT160 and KSAC-T185 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | 55 grams,1.0 in. dia. X 0.73 in. high,Stainless Steel |
| Supply Ability: | 100+ |
| Input Range: | ±20 G | Bias: | <20 Mg |
|---|---|---|---|
| Scale Factor: | 2.75 MA/g ±1.8% | Input Voltage: | ±12.5 To ±15.5 VDC |
| Quiescent Current: | 6 MA Per Supply | Core Materials: | Stainless Steel |
| Operating Temperature: | -40 To 185ºC/-40 To 160ºC | Weight: | 55 Grams |

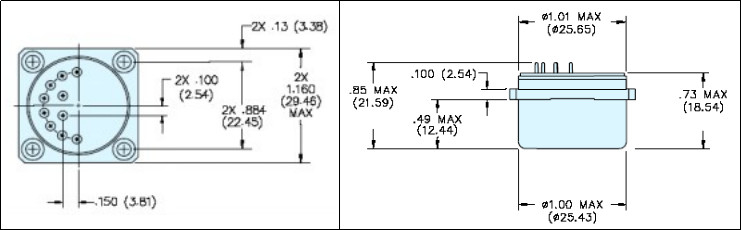

| Size: | 1.0 In. Dia. X 0.73 In. High | ||
| High Light: | 20g Accelerometer Sensor,High Temperature Accelerometer Sensor,20g industrial accelerometer |
||

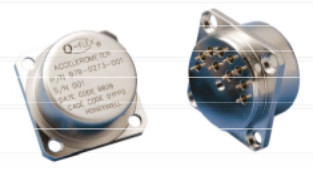

KSACT160 and KSAC-T185 Accelerometer
High Temperature Energy Sensors
For high-temperature Q-Flex® technology in a ruggedized package, Honeywell produces the QA-T160 and QA-T185 models for down-hole measurement-while- drilling and wireline applications.
As with the entire Q-Flex accelerometer family, QA-T160 and QA-T185 feature a patented Q-Flex etched-quartz- flexure seismic system. An amorphous quartz proofmass structure provides excellent bias, scale factor, and axis alignment stability.
The integral kacise develop an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer-supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.
The KSAC-T160 and KSAC -T185 also include a current- output internal temperature sensor. By applying temperature-compensating algorithms, bias, scale factor, and axis misalignment performance are dramatically improved.
Robust design and quality assurance provides superior reliability.
