Name: KUS600 5 Meter RS485 Low Power Level Measurement Sensor IP68
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS600
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

KUS600 5 Meter RS485 Low Power Level Measurement Sensor IP68

Level Measurement Sensor IP68

5m Level Measurement Sensor

KUS600 Ultrasonic Transducer Sensor

Place of Origin:

China

Brand Name:

Kacise

Model Number:

KUS600

Request A Quote

Product Details

Range:

0.6m-5m

Unusable Area:

0 ...0.6m

Power Supply:

3.3V-24V

Output Signal:

0-5V/0-3V/4-20mA/NPN/PNP/RS485

Protection Class:

IP68

Casing Material:

PVDF

Working Temperature:

-25…70℃(233...358K)

Storage Temperature:

-40…85℃(233...358K)

Ranging Resolution:

1mm

Measurement Accuracy:

0.5%-1 %F.S.

Temp. Compensation:

Yes

Highlight:

Level Measurement Sensor IP68

5m Level Measurement Sensor

KUS600 Ultrasonic Transducer Sensor

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

21*16*8cm,0.3kg

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

High Accuracy KWD400 360-Degree Scanning Sonar Power Consumption ≤12W

Get Best Price

86--17719566736

Contact Now

Product Description

KUS600 Series Ultrasonic Sensor

1. Features

Non-contact measurement
PVDF casing for corrosion environment
Low power consumption solution
Various output options, wide voltage power supply

2. Dimension
Unit in the diagram is mm.
KUS600 5 Meter RS485 Low Power Level Measurement Sensor IP68 1

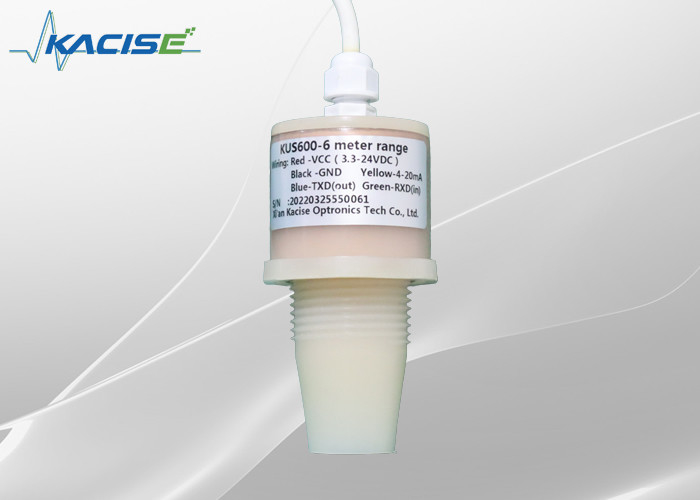

3. Electronic interface and signals definition

Wire color	Pin	Description	Note
Red	1	Power supply	3.3V-24V
Black	2	GND
Yellow	3	Analogue output	Low power version hasn’t analogue output
Blue	4	RS485A+
Green	5	RS485B-

4. Parameter

Model:KUS600
Range	0.6m-5m, low-power product supports wide voltage input, this range is for 3.3V power supply (6m range customizable)
Unusable area	0 ...0.6m
Power supply	3.3V-24V
Power consumption	less than 0.3mA when sleep, less than 20mA when emitting, less than 5mA than when measurement
Output signal	0-5V /4-20mA/NPN/PNP/RS485
Electrical connection	5-core cable (analog), 6-core cable (switch)
Ranging resolution	1mm
Measurement accuracy	0.5%-1 %F.S.
Temp. compensation	Yes
Working temperature	-25…70℃(233...358K)
Storage temperature	-40…85℃(233...358K)
Protection class	IP68
Casing Material	PVDF

5.Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, it should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the nuts, it has to be fixed at the middle of the housing thread.

6. Ordering information

KUS	Body size	Output		Max range	Description
	600
	Customized	Customized
		4-20mA	4-20mA mode output with RS485 MODBUS protocol
		0-3.3V	The power supply range is 3.3 at least
		0-5.0V	The power supply range is 5.0 at least
		RS485	Power save mode with RS485 MODBUS protocol
			XX m		XX m is the maxim range can be detected, the default length is 1 meter
KUS	600	RS485	3m

7.PVDF Corrosion Resistance Data Sheet

Medium	Concentration%	Maximum operating temperature℃	Medium	Concentration%	Maximum operating temperature℃
sulfuric acid	＜10	85	Oxalic acid	—	60
—	＜60	85	citric acid	—	85
—	80-93	80	benzoic acid	—	85
—	98	65	Benzoic acid	—	50
Cresyl acid	50	60	acid	—	60
nitric acid	＜10	85	salicylic acid	—	85
—	＜50	50	sodium hydroxide	＜50	75
—	70-90	25	Calcium hydroxide	—	85
glycolic acid	—	25	ammonium sulfate	—	85
hydrochloric acid	—	85	ammonium nitrate	—	85
phosphoric acid	＜85	85	Toluene	—	75
—	＞85	85	Ethylbenzene	—	50
hydrofluoric acid	40	85	Isopropionic acid	—	60
Hydroiodic acid	含12%以上	85	fatty acid	—	85
formic acid	—	85	Hydroxy acid	—	50
Acetic acid	＜50	85	calcium chloride	—	85
—	80	65	Ammonium acetate	—	80
ice	—	50	ammonia	—	85
propionic acid	—	85	sodium sulfate	—	85
oxalic acid	—	85	Aluminum nitrate	—	85
butyric acid	—	50	Sulfite	—	85
Hydrocyanic acid	—	85	sodium benzoate	—	85
Sulfurous acid	—	85	sodium bicarbonate	—	85
Nitrous acid	—	70	magnesium carbonate	—	85
carbonic acid	—	85	Ferrous chloride	—	85
hypochlorous acid	—	60	benzene	—	85
Methanesulfonic acid	—	85	cresol	—	65
Benzenesulfonic acid	—	40	fluorine	干或湿	20
malic acid	—	85	iodine	液	65
