| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUS3000 M30-Type3 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 15*20*15cm,0.3kg |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Range: | 6m/12m | Output: | 4~20mA/NPN/PNP/RS485 |
|---|---|---|---|
| Protection Class: | IP65 | Power Supply: | 13-30V |
| Material: | Nickel Plated Copper | Temperature: | -25~70℃ |
| Accuracy: | ≤1 % |

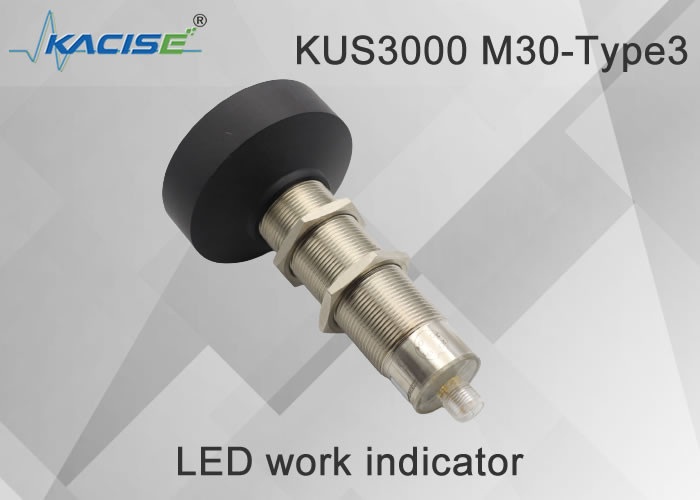

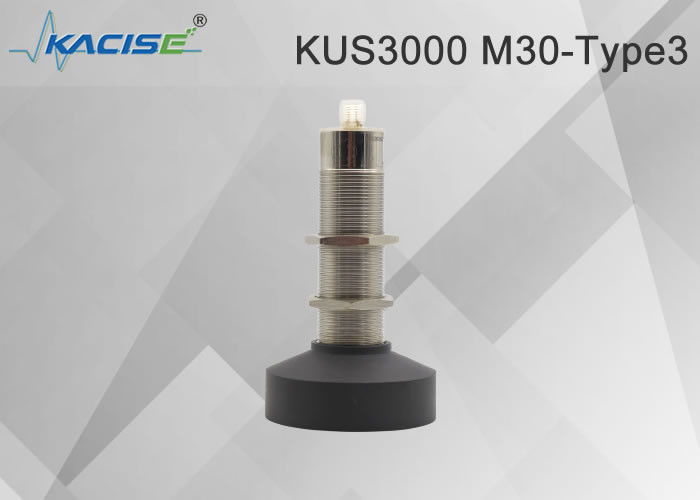

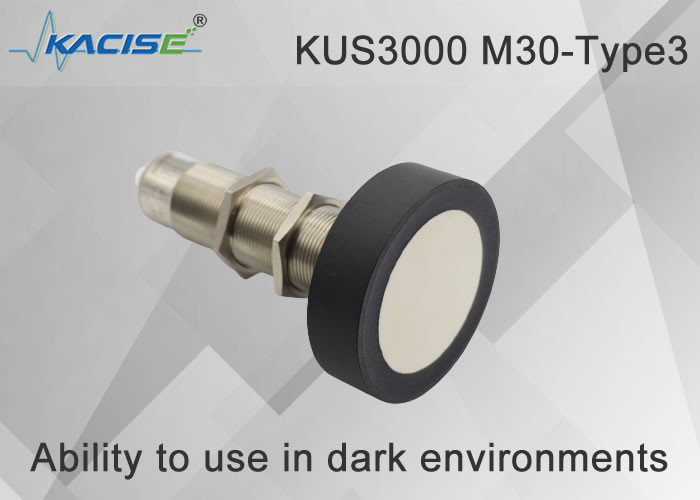

KUS3000 M30-Type3 Ultrasonic Level Meter
1. Dimensional structure
The unit is mm.
M30 type 3 size structure
2. Electrical interface
Note: This product has two cable specifications, and the cable wiring instructions of the two specifications are as follows:
| Type A cable | Type B cable | ||
| Pin1 | Brown | Pin1 | Yellow |
| Pin2 | White | Pin2 | Black |
| Pin3 | Blue | Pin3 | Red |
| Pin4 | Black | Pin4 | Green |
The default cable mix is based on the specifications received by the customer
3. Technical parameter
| M18 | |
| Range |
400... 6500 mm Or 600-12000mm |
| Adjustable interval range |
400... 6500 mm Or 600-12000mm |
| Blind spot |
0 ... 400 mm Or 0 ... 600 mm |
| Response time | approx. 40 ms |
Indicator light
| Blue led light | The blue light flashes to indicate that calibration can be performed. Blue and other constants indicate that the power supply of the sensor is normal. The blue light will flash within 5 minutes after the power is turned on, indicating that the user can perform output adjustment and calibration. After 5 minutes, the blue light is always on to indicate that the sensor cannot be receiving Calibration command. . |
| Tellow led light | It is used to indicate whether the measured object is detected. During the calibration stage, the yellow light flashes to indicate that the current calibration state is locked, and it can be switched to the next calibration state. |
| Red LED light |
In normal working state, the red light is not on, and the red light is on to indicate that there is a fault. During the calibration process, the flashing red light indicates that the sensor locks the current echo loss or infinity state, and the user can switch to the next calibration state. |
Electrical parameters
| Supply voltage | 13 ... 30 V DC , Special wide voltage requirements can be customized |
| No-load current I0 | ≤ 45 mA |
IOT-spectric models
| Supply voltage | 3.3-12 DC , ripple 10 %SS |
| Power consumption I0 | ≤ 15 mA, sleep mode≤1mA, Serial wake up, |
Output
| output type |
1 Switch output PNP output normally open and long closed can be calibrated 2 Switch output NPN output normally open and long closed programmable 3 Analog voltage output 0-10V programmable. 4 Analog 4-20mA output programmable 5 RS485 output E4 programmable. |
| Overcurrent Ie | 200 mA , Reverse polarity protection, short circuit protection |
| Default setting |
M18 Switch point A1: 150mm Switch point A2: 1000mm M30 Type 1 switch point A1 200mm switch point A2: 2000mm M30 type 2 switch point A1 300mm switch point A2: 4000mm M30 type 3 switch point A1 500mm switch point A2: 6000mm |
| Output voltage drop | ≤ 2.5 V |
| Repeatability | ≤1 % |
| On-off level f | ≤ 13 Hz High frequency can be customized |
| Default hysteresis characteristic amplitude | 5% of the set value, special requirements can be customized |
| Temperature Compensation Range | -40℃-85℃ |
Temperature Requirements
| Working temperature | -25…70℃(248...343K) |
| Storage temperature | -40…85℃(233...358K) |
Mechanical part description
| Connection | V1 connector(M12×1),4-Pin |
| Protection class | IP65 Other can be customized |
| Shell material | Nickel-plated copper, others can be customized |
Note: When the M18 product and M30 product have 4-20mA analog output, the meter connection method is different from that of the 550,600 product. Since the output terminal of the M18 and M30 products is powered by VDD, as shown in Figure 1, the meter should be connected to the power supply port. Between the output terminal and the output terminal, the connection instruction diagram is shown in Figure 2:
Figure 1 Output power supply circuit diagram
Figure 2 Schematic diagram of connection method
4. Order information
| KUS | Types of | output | range | describe | |
| M18 | M18 housing, maximum measuring range is 1 meter | ||||
| M30-Type1 | M30 maximum measuring range is 2 meter | ||||
| M30-Type2 | M30 maximum measuring range is 3 meter | ||||
| M30-Type3 | M30 maximum measuring range is 6 meter, 8 meters can be customized | ||||
| Customized | Shell supports user customization | ||||
| NPN | output as NPN | ||||
| PNP | output as PNP | ||||
| 10Vout | The output is analog 0-10V, the power supply requirement is greater than 11V | ||||
| 5Vout | The output is analog 0-5V, the power supply requirement is greater than 6V | ||||
| mAout | The output is analog 4-20mA | ||||
| RS485 | The output is RS485 Modbus protocol, please refer to the software interface manual for specific description. | ||||
| XXX mm | The customer specifies the linear interval or switch interval, which can be set at the factory | ||||
| KUS | M30 | RS485 | 6000mm | ||
5.Application
