| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | ce,ISO9001 |
| Model Number: | KUS series |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Product: | Ultrasonic Distance Sensor | Detection Range: | 300mm~5000mm |
|---|---|---|---|
| Transducer Frequency: | Approx. 220kHz | Output: | RS485 + 4-20mA/0-10V |
| Input Power: | 3.3V~24V | IP Grade: | IP68 |
| Material: | PVDF | Type: | Waterproof |
| Theory: | Ultrasonic Sensor | Warranty: | 12 Months |
| Product Name: | PVDF 5m Ultrasonic Water Level Meter | ||
| High Light: | Anti Theft Ultrasonic Fuel Level Sensor,5V Ultrasonic Fuel Level Sensor,RS485 Ultrasonic Fuel Level Sensor |
||
Electrical connections and signal definitions
| Line order | Colour | Definition |
| 1 | Red | Power is positive |
| 2 | Black | power return ground |
| 3 | Yellow | Analog output, voltage output, current output switch output |
| 4 | Blue | RS485 A+ or uart TXD |
| 5 | Green | RS485 B- or uart RXD |

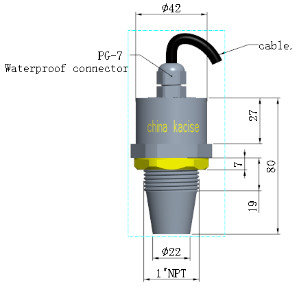

Unit in the diagram is mm
4. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
5. Ordering information
| KUS | model | output | range | describe |
| 630 | Product series model | |||
| Custom made | ||||
| 0-10V | Analog 0-10V output | |||
| 0-5V | Analog 0-5V output | |||
| 0-3V | Analog 0-3V output | |||
| 4-20mA | Analog 4-20mA output | |||
| SW | Switch output | |||
| Uart | Uart serial output MODBUS RTU protocol | |||
| RS485 | RS485 output MODBUS RTU protocol | |||
| XX m |
XX m means the maximum measurement distance (default 10m) |
|||
| KUS | 550 | RS485 | 2m | |

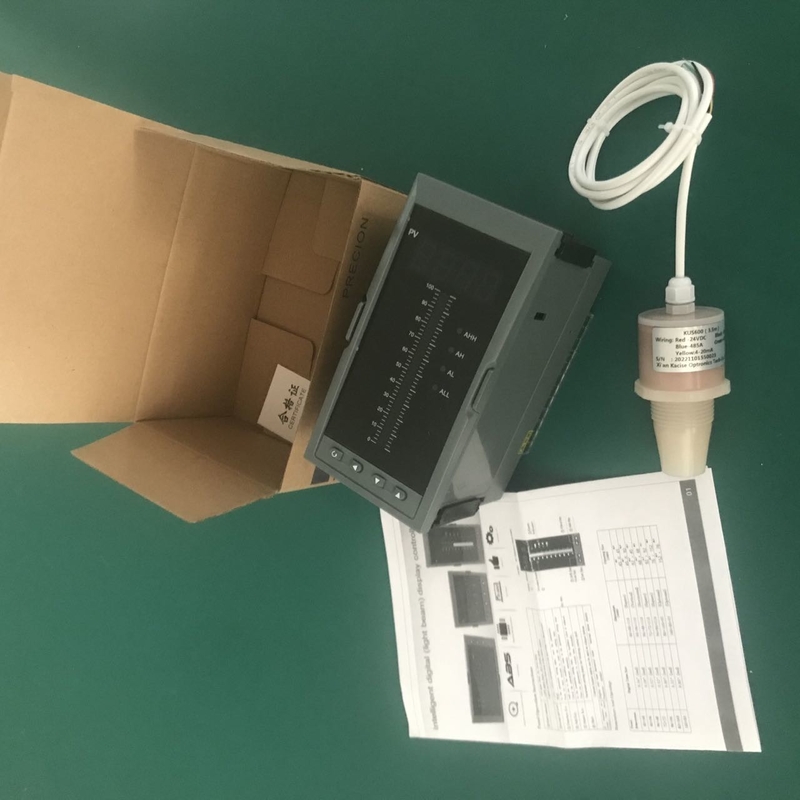

Packing and shipping
