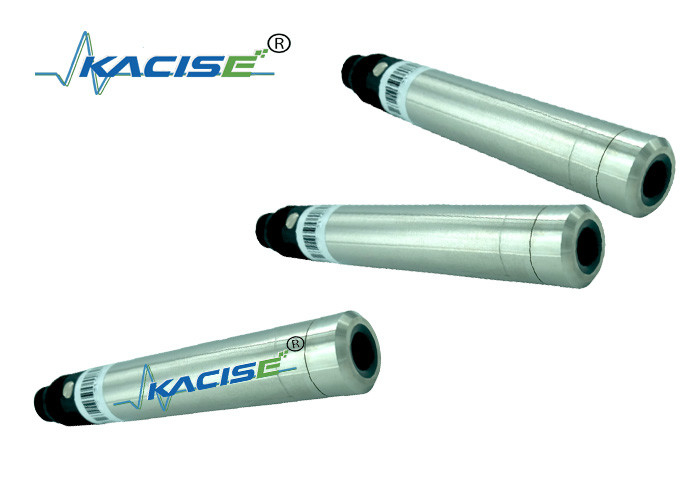

Name: Digital Dissolved Oxygen Sensor fishpound electrode Optical Dissolved Oxygen Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS610
Price: 400.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

Digital Dissolved Oxygen Sensor fishpound electrode Optical Dissolved Oxygen Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KWS610

Request A Quote

Digital Dissolved Oxygen Sensor fishpound electrode Optical Dissolved Oxygen Sensor

Product Details

Product Name:

Aquaculture Fluorescence Dissolved Oxygen Sensor

Range:

0-20mg/L

Accuracy:

±3%

IP Grade:

IP68

Sensor Drift:

<1% Per Year

Casing Material:

Titanium Alloy/Stainless Steel

Output:

RS485

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

USD200-USD600

Packaging Details

gift box,carton box

Delivery Time

5 working days

Payment Terms

Western Union, MoneyGram, T/T

Supply Ability

1000 Pieces per month

KCW101 Frequency - Modulated Electromagnetic Wave Water Treatment Equipment

Get Best Price

KHM100 On - line Automatic Heavy Metal Water Quality Monitor

Get Best Price

KCW104 Automatic Softening Water Device

Get Best Price

KCW105 Ionization Water Purification Device

Get Best Price

86--17719566736

Contact Now

Product Description

RS485 fishpound dissolved oxygen electrode Optical Dissolved Oxygen Sensor

Digital Dissolved Oxygen Sensor fishpound electrode Optical Dissolved Oxygen Sensor 0

Introduction

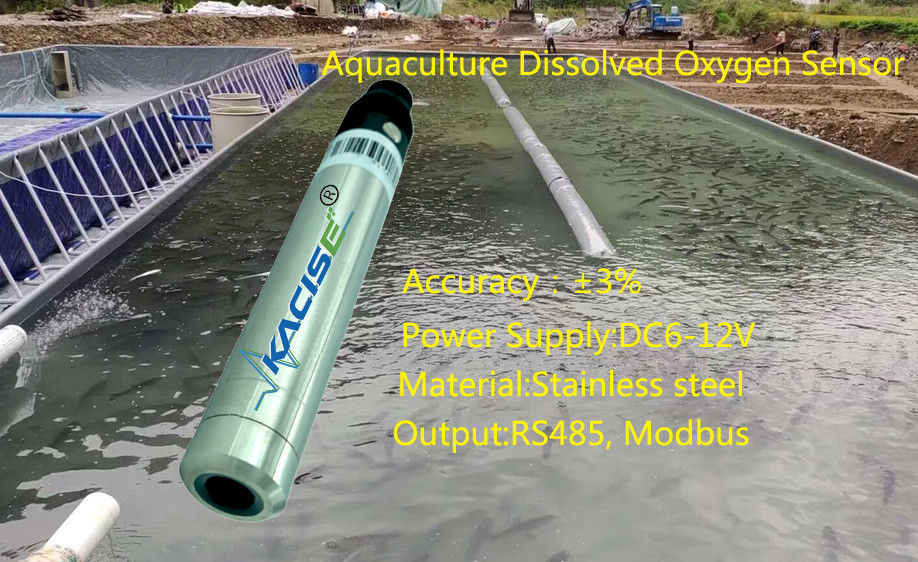

The Kacise KWS-610 fluorescence dissolved oxygen sensor is designed for the aquaculture industry. It has the characteristics of stable online monitoring, and it has excellent characteristics compared with the traditional type sensor. It has no membrane, no need electrolyte, strong anti-interference, no need for frequent calibration, no consumption of oxygen, no flow rate limitation, auto matic temperature and Gas pressure compensation, gast reaction speed, long service life and more economical and convenient, so the fluorescence dissolved oxygen sensor is the best choice for real-time dynamic monitoring of oxygen content in aquaculture.

Features

No membrane, no need electrolyte
No need to consume oxygen, not affected by flow rate
Built-in temperature sensor, automatic temperature compensation
Free from chemical interferences such as sulfides
Small annual drift, fast response, and more accurate measurement
Free of maintenance, longer application cycle and lower cost of use
Fluor cap replacement is simple
Support RS-485, MODBUS protocol

Digital Dissolved Oxygen Sensor fishpound electrode Optical Dissolved Oxygen Sensor 1

Technical Specifications

Range	0-20mg/L or 0-200% saturation
Accuracy	±3%
Response Time	60s
Ip Grade	IP68
Sensor Drift	<1% per year
Temperature Accuracy	Temperature Accuracy
Output	RS485, Modbus
Power Supply	DC6-12V ±5%, current<50mA
Temperature Sensor	NTC
Casing Diameter	22mm
Casing Length	188.3mm
Cable Length	Standard 5m, customizable 10m, 15m and 30m
Fluorescent Cap Lifetime	1 year (under normal use)
Casing Material	Titanium alloy/Stainless steel

Digital Dissolved Oxygen Sensor fishpound electrode Optical Dissolved Oxygen Sensor 2
