Place of Origin:
China
Brand Name:
Kacise
Model Number:
KPG201

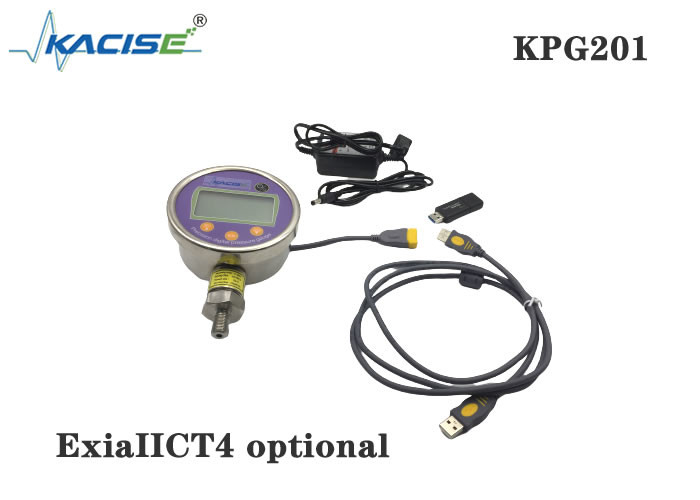

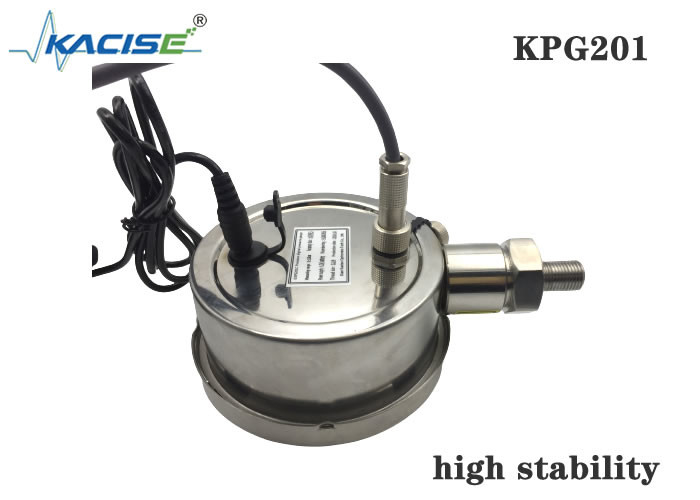

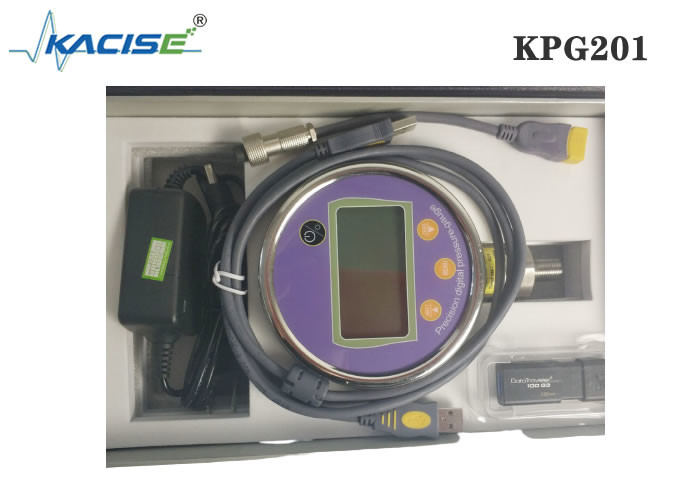

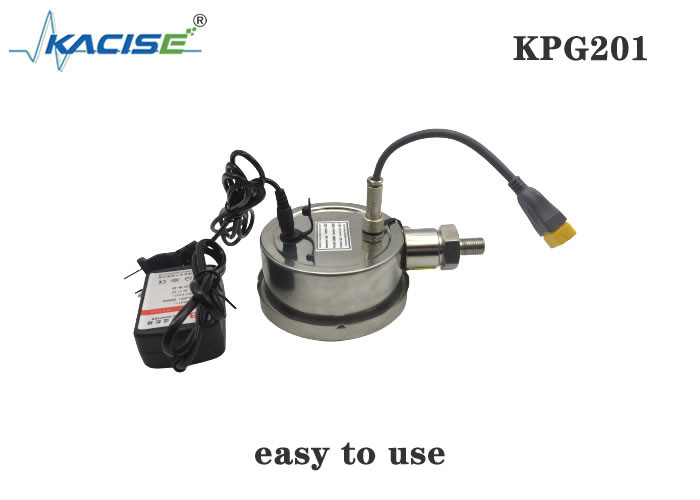

KPG201 Digital Pressure Gauge With Data Logger
1. Description
Liquids and gases behave differently depending on the pressure and can be reactive in different ways. Accordingly, checking the pressure using a pressure gauge is a widespread standard in many areas of industry, including in the petrochemical, chemical and food industries. The pressure switches and pressure gauges from Kacise offer a wide range of different solutions for a wide variety of production environments.
Starting with simple pressure gauges with the highest precision up to flexible differential pressure gauges, which can be both permanently installed and used as hand-held gauges. In order to be able to optimally adapt to any production and every material, the pressure switches and pressure gauges from Kacise work with different methods for pressure measurement and display. This means that every pressure measurement method can be optimally adapted to the prevailing conditions.
It does not matter whether the relative pressure, the absolute pressure or a differential pressure is to be determined: The high-quality and powerful pressure gauges from Kacise offer the optimal solution for industry and are used worldwide. The pressure gauges are divided into different categories. Probably the most important subdivision factor concerns the pressure range covered by the pressure gauges. Low pressure, high pressure and vacuum gauges are suitable for a wide variety of applications and measuring materials.
The pressure measurement method also plays an important role. A distinction is made between electrical, mechanical and mechatronic pressure gauges. In this way, the pressure measurement can be optimally adapted to every situation and every need.
2. Features
• Touch button, no mechanical contact, a good solution to the problem of life and sealing.
• Wide temperature compensation, ultra-low power consumption.
• Unit changing, peak valley and other functions fully preserved.
• Multi additional setting and functions available, user can set by environment and habits.
• IP grade ≧ IP66, higher than the industry level.
3. Specification
| Item | Spec. |
| Pressure range | -100kpa~250pa~5kpa~250Mpa |
| Accuracy | 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02% |
| Display | 5-digit dynamic display + percentage indicator |
| Pressure unit | Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2 |
| Overload pressure | 150% FS |
| Destruction pressure | 200% FS |
| Power supply | 4.2V rechargeable lithium battery |
| Temperature | -20 ℃ ~ 60 ℃ |
| Humidity | ≤ 85% RH |
| Calibration environment | 20 ℃ ± 2 ℃ |
| Explosion-proof level | ExiaIICT4 optional |
| IP Grade | IP66 |
| Data record limit | 50000 |
| Process connection | M20 × 1.5 (male), special thread customizable |
| Dimensions | height 170mm, width 110mm, thickness 50mm |
The pressure gauges and differential pressure gauges can be easily integrated into a wide variety of production environments thanks to the standardised connection options and impress with their long service life and high display quality. Thanks to various analogue and digital displays and an adjustment and calibration of all pressure gauges, display errors or measurement errors can be minimised. In this way, work safety and work comfort can be noticeably improved through the use of high-quality pressure gauges.
Suitable pressure gauges for different media
Pressure can be a risk factor, especially in closed systems, which must be minimised if possible. Pressure switches are a simple and effective way to avoid this hazard. The pressure switches work according to different measuring principles and can therefore be easily adapted to the medium used and the required pressure range.
If a previously set pressure level is reached, the pressure switch can trigger an action. This can either be opening or closing, but also an output signal which is passed on via the pressure transmitter. In this way, the various pressure switches can be easily integrated into different systems and adapted to the different requirements.
Hand-held gauges for determining pressure are also widespread and are used in many branches of industry. Especially when checking and maintaining certain work areas, the pressure gauges must function optimally and be able to display the pressure precisely in mbar. In particular, the use of mobile differential pressure meters for pressure monitoring at transitions and membranes is extremely common and standard in many areas.
Kacise gauges are not only characterised by their high level of accuracy, but above all by their simple handling and their good and clear display of all relevant values. The mobile pressure gauges can either be provided with their own probe or combined with permanently installed probes.
