| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KWS-400 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Principle: | Fluorescence Principle | Measuring Range: | 0~400ug/L Or 0~100RFU |
|---|---|---|---|
| Resolution: | 0.1 µg/L Or 0.1% RFU | Linearity: | R2>0.99 |
| Protection Rate: | IP68 | Deepest Depth: | Underwater 60 Or 10 Meters |
| Temperature Range: | 0 ~ 50℃ | Output: | Support RS-485, MODBUS Protocol |
| Power Supply: | DC 5~12V, Current <50mA | Installation: | Input Type, Circulation Type |
| Optical Window: | POM | ||
| High Light: | Water Chlorophyll Meter,Water Chlorophyll Digital Sensor,KWS-400 Water Quality Sensor |
||

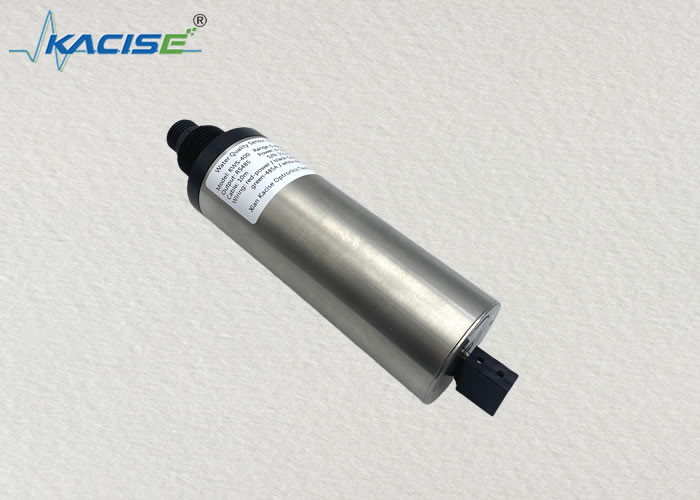

KWS-400 Optical Fiber Chlorophyll Sensor
Introduction
The fiber-optic chlorophyll sensor adopts the principle of the fluorescence method. According to the spectral absorption characteristics of chlorophyll a, it irradiates water with a high-energy LED light source to excite the chlorophyll a in the water to generate a specific wavelength of fluorescence and measure the concentration of chlorophyll an in water.
Advantage
The chlorophyll sensor of the fiber optic chlorophyll sensor provides excellent repeatability and stability and is not susceptible to ambient light.

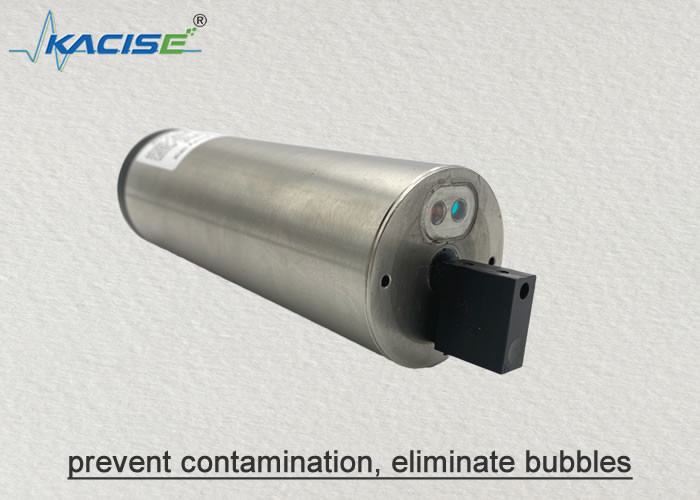

With an automatic cleaning brush, it eliminates air bubbles, reduces the impact of contamination on measurement, makes maintenance cycles longer, and maintains excellent stability for long-term online use.
| Item | Fiber Chlorophyll Sensor | Self-Cleaning Chlorophyll Sensor |
| Model | KWS-400A | KWS-400B |
| Photo |  |
|
| Principle | fluorescence principle | |
| Measuring Range | 0~400ug/L or 0~100RFU | |
| Resolution | 0.1 µg/L or 0.1% RFU | |
| Linearity | R2>0.99 | |
| Protection Rate | IP68 | |
| Deepest Depth | Underwater 60 meters | Underwater 10 meters |
| Temperature Range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power Supply | DC 5~12V, current <50mA | DC 5~12V, current <50mA (not clean) |
| Installation | Input type, circulation type | Input type |
| Size | Φ22mm*120mm | Φ33mm*156mm |
| Cable Length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| Self-Cleaning System | NO | Yes |
| Optical Window | POM | |
Application
