| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUFS2000A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 202~236USD/pc |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Accuracy: | ≤1% | Velocity Range: | 0~±10m/s, Bi-directional Measurement |
|---|---|---|---|
| Pipe Size: | DN32~DN6000 | Temperature: | - 30~160℃ |
| Type Of Liquid: | Single Liquid Can Transmit Sound Wave. Such As Water, Sea Water, Sewage, Oil, Chemicals , Alcohol, Etc | Pipe Material: | Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed |
| Signal Output: | 1 Way 4-20mA Output(impedance 0~1K, Accuracy 0.1%) 1 Way OCT Pulse Output( Pulse Width 6 ~ 1000ms) 1 Way Relay Output | Interface: | RS485, Support MODBUS |
| Power Supply: | DC8~36V Or AC85~264V | ||
| High Light: | Split Ultrasonic Flow Meter,Pipe Type Ultrasonic Flow Meter,Wall Mounting Ultrasonic Water Meter |
||
KUF2000 Series Clamp On Ultrasonic Flow Meter
Introduction

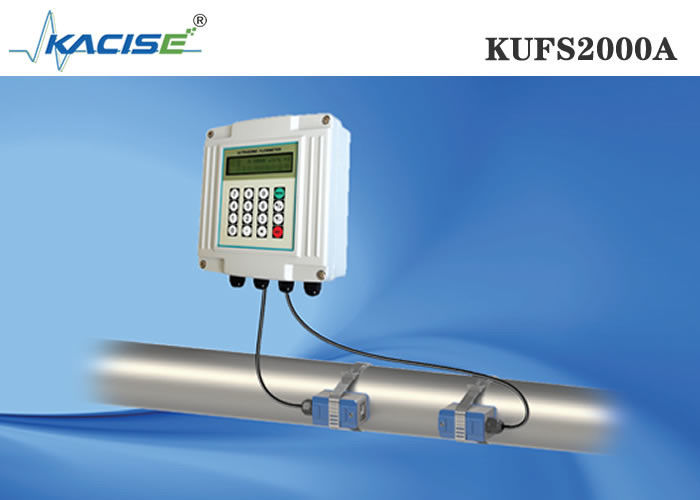

KUF2000 series clamp on ultrasonic flow meter consists of the meter and clamp on sensor.
The clamp on ultrasonic flow meter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.
The KUFS2000A flow meter can be installed on the wall or in instrument box.
Clamp on sensors are fixed on the pipe by steel belt. Suitable for pipe sizes from DN32mm to DN6000mm.
Working Condition
| Main Unit | Sensor | |
| Protection | IP65 | IP68 |
| Humidity | ≤85%RH | |
| Temperature | -20~60℃ | -30~160℃ |
Basic Parameters
| Accuracy | ≤1% |
| Velocity Range | 0~±10m/s, Bi-directional measurement |
| Pipe Size | DN32~DN6000 |
| Temperature | - 30~160℃ |
| Type of Liquid | Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc |
| Pipe Material | Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed |
| Signal Output |
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output |
| Signal Input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data Storage | SD card regularly store the pre-set results (optional) |
| Power Supply | DC8~36V or AC85~264V |

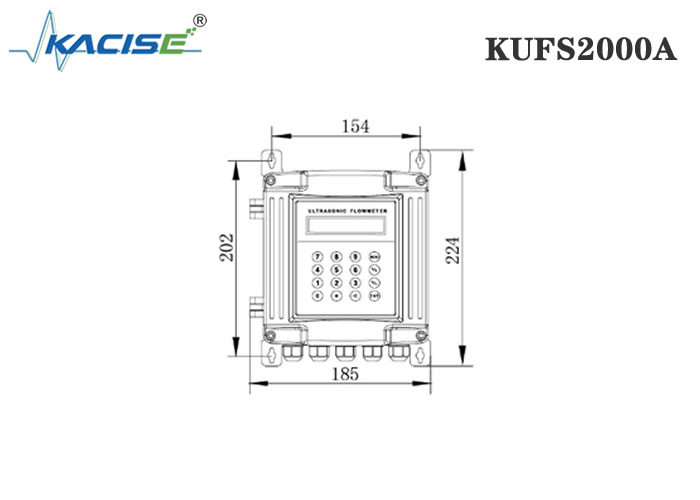

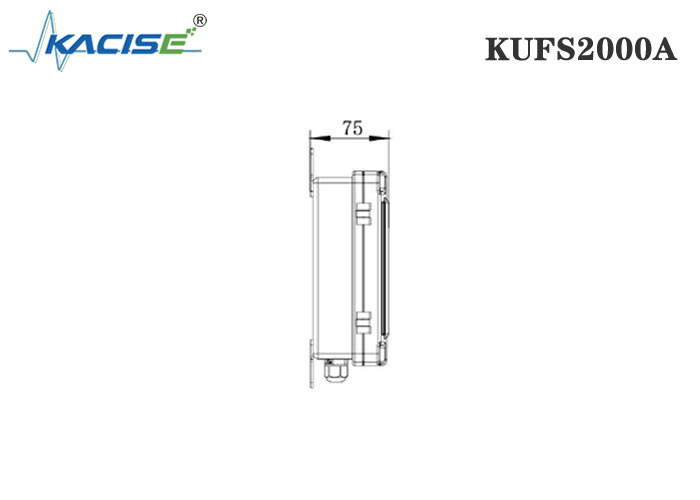

Dimension
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2 | DN32~DN100 | - 30~90℃ | 45×25×28mm |
| Middle Size | TM-1 | DN50~DN700 | - 30~90℃ | 64×39×44mm |
| Large Size | TL-1 | DN300~DN6000 | - 30~90℃ | 97×54×53mm |
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2-HT | DN32~DN100 | - 30~160℃ | 45×25×28mm |
| Middle Size | TM-1-HT | DN50~DN700 | - 30~160℃ | 64×39×44mm |
| Large Size | TL-1-HT | DN300~DN6000 | - 30~160℃ | 97×54×53mm |

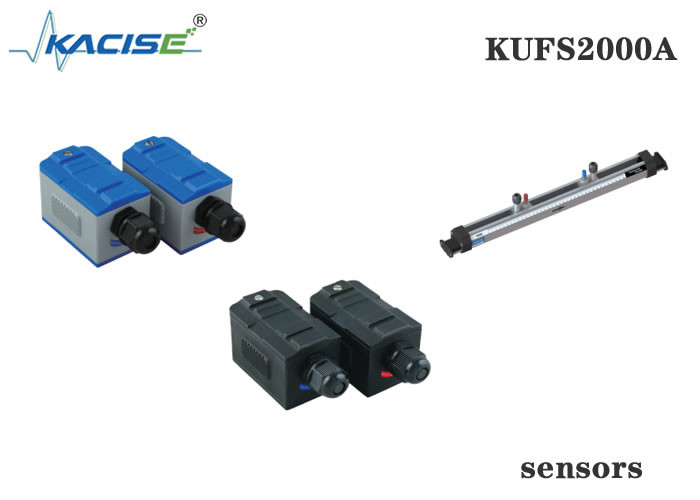

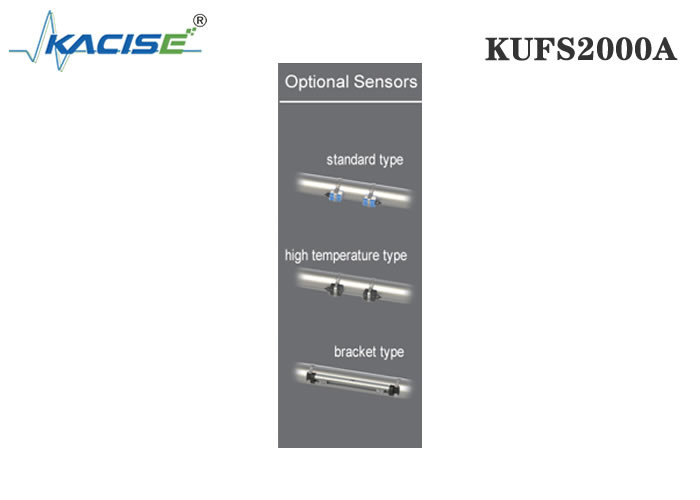

Mounting Bracket Clamp On Sensor
| Type | Model | Measuring Range | Temperature | Dimension |
| Standard Small Size Sensor | HS | DN32~DN100 | - 40~90℃ | 318×59×85mm |
| Standard Middle Size Sensor | HM | DN50~DN300 | - 40~90℃ | 568×59×85mm |
| Extended (bracket only) | EB-1 | ＞DN300 | - 40~90℃ | 88×59×49mm |
| High Temp. Small Size Sensor | HS-HT | DN32~DN100 | - 40~160℃ | 318×59×145mm |
| High Temp. Middle Size Sensor | HM-HT | DN50~DN300 | - 40~160℃ | 568×59×145mm |
| Extended (bracket only) | EB-1-HT | ＞DN300 | - 40~160℃ | 88×59×49mm |
