| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUFS2000C |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 294~308USD/pc |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Accuracy: | ≤1% | Velocity Range: | 0~±10m/s, Bi-directional Measurement |
|---|---|---|---|
| Pipe Size: | DN32~DN6000 | Temperature: | - 30~160℃ |
| Type Of Liquid: | Single Liquid Can Transmit Sound Wave. Such As Water, Sea Water, Sewage, Oil, Chemicals , Alcohol, Etc | Pipe Material: | Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed |
| Signal Output: | 1 Way 4-20mA Output(impedance 0~1K, Accuracy 0.1%) 1 Way OCT Pulse Output( Pulse Width 6 ~ 1000ms) 1 Way Relay Output | Interface: | RS485, Support MODBUS |
| Power Supply: | DC8~36V Or AC85~264V | ||
| High Light: | Explosion Proof Ultrasonic Flow Sensor,20mA Ultrasonic Flow Meter,Clamp On Ultrasonic Water Flow Meter |
||

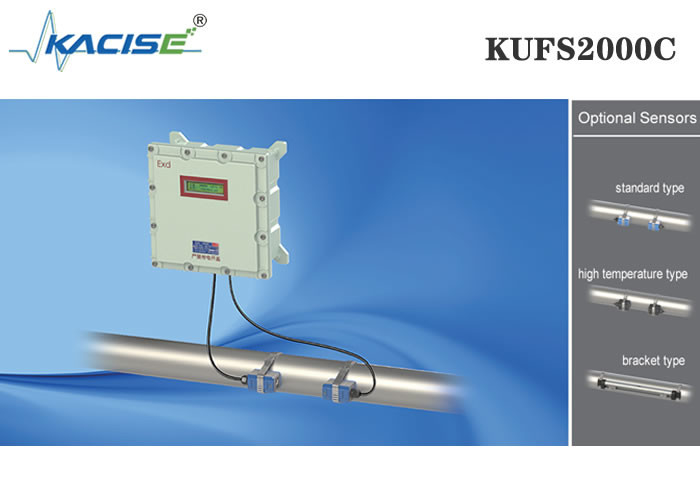

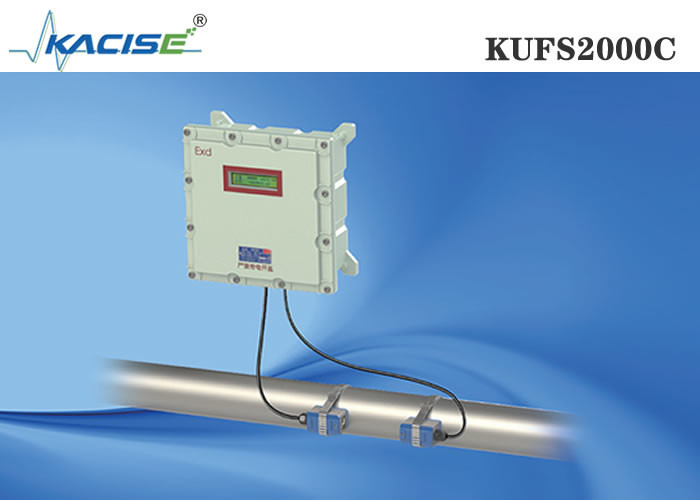

KUF2000 Series Clamp On Ultrasonic Flow Meter
Introduction
KUF2000 series clamp on ultrasonic flow meter consists of the meter and clamp on sensor.
The clamp on ultrasonic flow meter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.
The KUFS2000C flow meter adopts isolated explosion proof, grade DΙΙBT5
Clamp on sensors are installed on the pipe. After gluing and sealing, grade will be Intrinsically safe explosion.
Suitable for pipe sizes from DN32mm to DN6000mm.
Working Condition
| Main Unit | Sensor | |
| Protection | IP65 | IP68 |
| Humidity | ≤85%RH | |
| Temperature | -20~60℃ | -30~160℃ |
Basic Parameters
| Accuracy | ≤1% |
| Velocity Range | 0~±10m/s, Bi-directional measurement |
| Pipe Size | DN32~DN6000 |
| Temperature | - 30~160℃ |
| Type of Liquid | Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc |
| Pipe Material | Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed |
| Signal Output |
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output |
| Signal Input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data Storage | SD card regularly store the pre-set results (optional) |
| Power Supply | DC8~36V or AC85~264V |

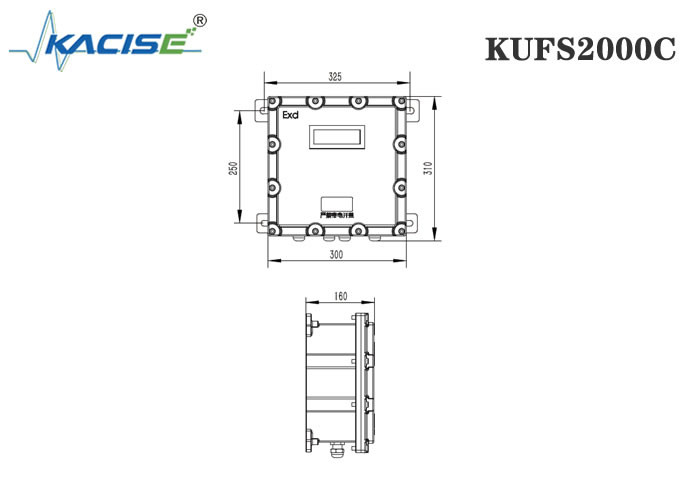

Dimension
Unit: mm
Opening Dimensions: 154*77mm
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2 | DN32~DN100 | - 30~90℃ | 45×25×28mm |
| Middle Size | TM-1 | DN50~DN700 | - 30~90℃ | 64×39×44mm |
| Large Size | TL-1 | DN300~DN6000 | - 30~90℃ | 97×54×53mm |
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2-HT | DN32~DN100 | - 30~160℃ | 45×25×28mm |
| Middle Size | TM-1-HT | DN50~DN700 | - 30~160℃ | 64×39×44mm |
| Large Size | TL-1-HT | DN300~DN6000 | - 30~160℃ | 97×54×53mm |

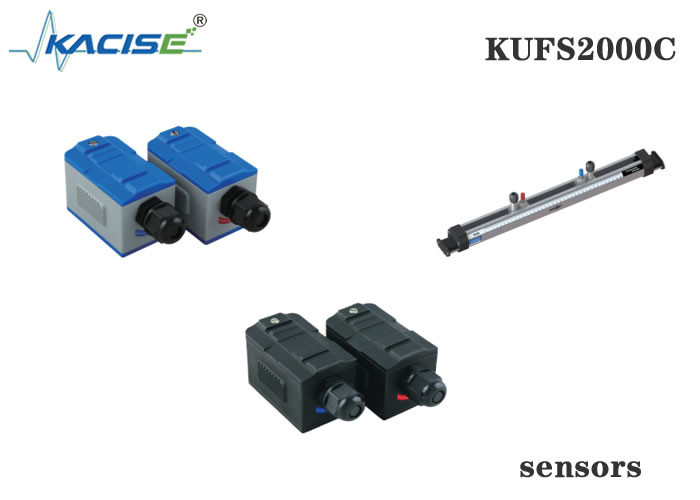

Mounting Bracket Clamp On Sensor
| Type | Model | Measuring Range | Temperature | Dimension |
| Standard Small Size Sensor | HS | DN32~DN100 | - 40~90℃ | 318×59×85mm |
| Standard Middle Size Sensor | HM | DN50~DN300 | - 40~90℃ | 568×59×85mm |
| Extended (bracket only) | EB-1 | ＞DN300 | - 40~90℃ | 88×59×49mm |
| High Temp. Small Size Sensor | HS-HT | DN32~DN100 | - 40~160℃ | 318×59×145mm |
| High Temp. Middle Size Sensor | HM-HT | DN50~DN300 | - 40~160℃ | 568×59×145mm |
| Extended (bracket only) | EB-1-HT | ＞DN300 | - 40~160℃ | 88×59×49mm |
