Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock

Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock

  • Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock
  • Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock
  • Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock
  • Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock
Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 Pieces per Week
Contact Now
Detailed Product Description
Type:: Shock Absorber Material:: Aluminum And Stainless Steela
Brand: Kacise Feature:: Durable
Load Range: 3.5-2000KG Natural Frequency: 7Hz-15Hz
Certificate:: ISO9001:2008 Relative Product:: Backdraft Damper
Usage:: Industrial Machinery Application:: Marine And Industrial Engine
High Light:

Anti Shock Wire Rope Vibration Isolator

,

Antenna Wire Rope Isolator

,

Engine Wire Rope Shock Absorber

Anti-shock Helical Wire Rope Isolator for Energy Absorption and Vibration Isolation



1. Product Description

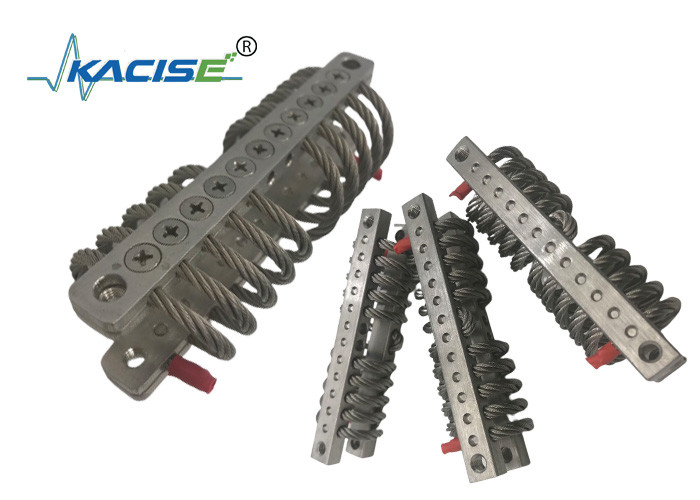

                       Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock 0

Wire rope isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.

Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.

Wire rope isolators provide higher levels of isolation than any other medium or design, with excellent vibration damping. Cable mounts are truly unique, adapted to a spectrum of physical and engineering requirements so broad that it includes almost every isolation need. They have put to rest the notion that a single mount cannot handle both shock and vibration.

Taking GH Series ALL Metal Wire Rope Isolator as example: It has three-dimensional variable stiffness and variable damping characteristics. To meet the aircraft, communications, oil tanks and logging trucks, ocean transportation and other equipment, instrumentation isolation, noise reduction requirements. So that the electronic device can also work in harsh mechanical environments, isolators to replace the traditional ideal.





2.Type

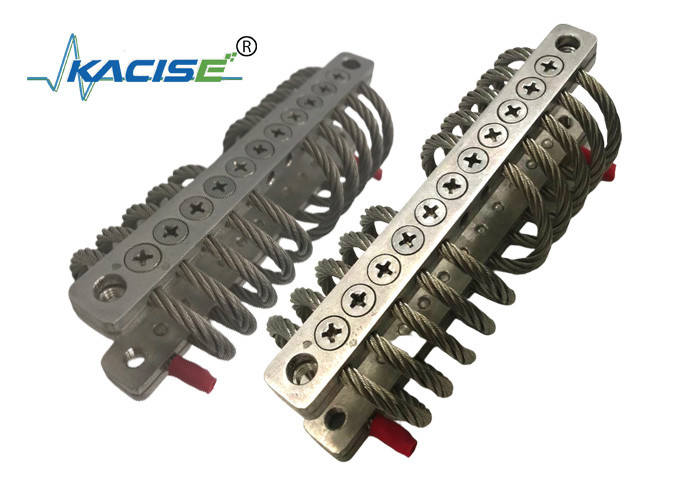

                              Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock 1





3. Feature



1. High temperature resistance, strong corrosion resistance, easy to install and install



2.Universal damping,strong impact resistance,durable



3.Good earthquake resistance



4.Mounting holes can be customized



4.Advantages of wire rope isolators:



1. With nonlinear stiffness



2. All-round shock absorption



3. The resonance frequency is low, and the low-frequency shock absorption effect is good



4. Corrosion resistance, high and low temperature resistance, can continue to work in harsh environments



5. Easy installation, maintenance-free, long service life



5.Application Field



                          Antenna Launcher Engine Stainless Steel Wire Rope Isolator Anti Shock 2


Applications Typical Equipment Protection From Operational Advantages
Shipboard Electronics, Computers,
Machinery
Explosive blast,
Inherent vibration, Storms
Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection
Rough Terrain Vehicles Instrumentation, Generators,
Electronics
Rough terrain,
Poor road conditions,
Collision
Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation
Aircraft Electronics, Computers High-G maneuvering,
Hard landings, Turbulent air
Temperature and altitude extremes, Lightweight
Shipping Containers Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock Maintenance-free, No out gassing, Can be sterilized
Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments
