Name: GXPS500D Differential Pressure Transmitter Against Severe Electromagnetic Interference Lightning Protection
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS500
Price: 110 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

GXPS500D Differential Pressure Transmitter Against Severe Electromagnetic Interference Lightning Protection

Explosion Proof Differential Pressure Transmitter

Precision Differential Pressure Transmitter

Against Lightning Precision Pressure Sensor

Place of Origin:

China

Brand Name:

Kacise

Model Number:

GXPS500

Request A Quote

Product Details

Pressure Range:

0~±5kPa……±5000kPa

Load Pressure:

1.5 Times Nominal Value

Pipeline Isostatic Pressing:

3, 5, 10 Times Nominal Value 20MPa

Accuracy:

±0.25%F.S, ±0.5%F.S

Stability:

Typical Value 0.1%F.S Max. Value: 0.2%F.S

Operating Temperature:

-40°C~85°C

Compensation Temperature:

-10 °C~70 °C

Medium Compatibility:

All Caustic Medium Compatible With 1Cr18Ni9Ti & 316L

Highlight:

Explosion Proof Differential Pressure Transmitter

Precision Differential Pressure Transmitter

Against Lightning Precision Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

Price

110USD/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

Auto Parts Automotive Air Conditioning Pressure Sensor

Get Best Price

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Get Best Price

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Get Best Price

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Get Best Price

86--17719566736

Contact Now

Product Description

GXPS500 Differential pressure sensor

Feature
AC,DC voltage output
Various screw connection
Accuracy ±0.25,±0.5%F.S
Diffused-Silicon oil-filled core
Non polarity 2 line current output
Display and output node available
Multiple pressure range and output signal
Intrinsically safe mode , isolation explosion protection, CE
Against severe electromagnetic interference, lightning protection

Application
Effluent treatment
Flow measurement
Underwater engineering
Water-efficient irrigation
Coal mine air pressure difference
Hydropower station stage difference
Centralized air-condition Terminal Control
City flood protection and water logging drainage project

Electronic interface and signals definition

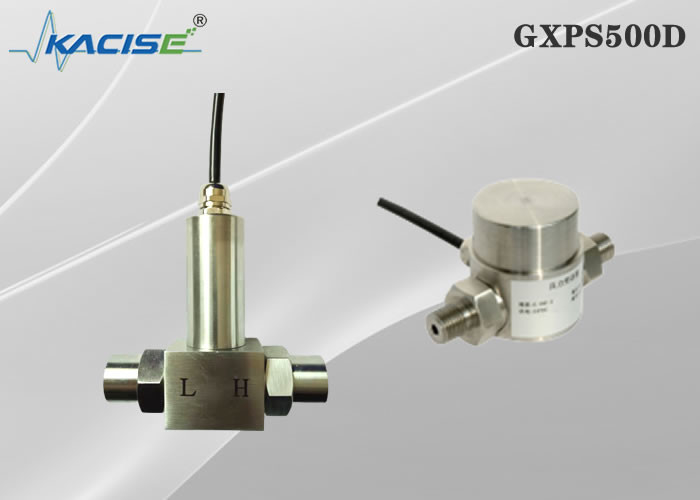

GXPS500D Differential Pressure Transmitter Against Severe Electromagnetic Interference Lightning Protection 1

Parameter

Spec.	Value
Pressure range	0~±5kPa……±5000kPa
Load pressure	1.5 times nominal value
pipeline Isostatic pressing	3, 5, 10 times nominal value 20MPa
Accuracy	±0.25%F.S, ±0.5%F.S
Stability	Typical value 0.1%F.S, Max. value: 0.2%F.S
Operating temperature	-40°C~85°C
Compensation temperature	-10 °C~70 °C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti & 316L
Electrical properties	two-wire system	Three-wire system
Output signal	4~20mA	0/1~5V	0~10V
Power supply	10~30Vdc	8~36Vdc/ac	11~30Vdc/ac
Load resistance	(U-10)/0.02Ω	>100kΩ
Min. isolation	>100M Ω@50V (between case & terminations)
Electric Strength	500V@60 second
vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Seal grade	Waterproof cable, Protection grade IP68; DIN43650, IP65
Response time	10ms
Pressure durable	2×10⁶pressure circle @25 °C
EMI/ EMC	EMI: EN50081-1/-2; EMC: EN50082-2
lightning protection	Air conduction resistance 8000V, outer casing, cable conduction resistance 4000V

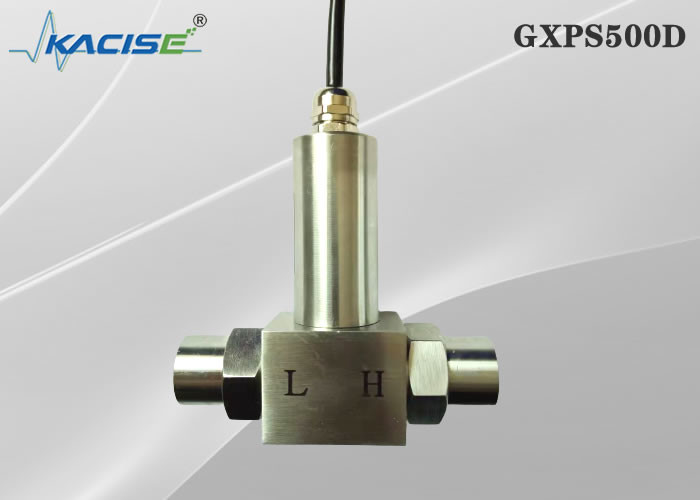

GXPS500D Differential Pressure Transmitter Against Severe Electromagnetic Interference Lightning Protection 2

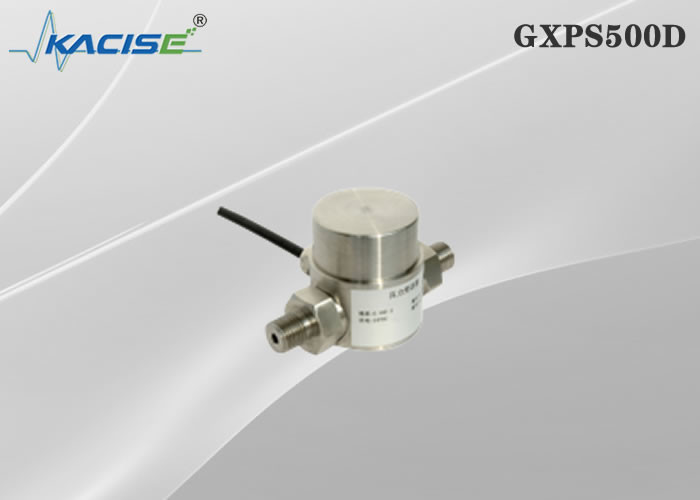

GXPS500D Differential Pressure Transmitter Against Severe Electromagnetic Interference Lightning Protection 3
