12V High Accuracy Ultrasonic Transducer Sensor Water Tank Level Meter RS485 5m

12V Ultrasonic Transducer Sensor

Water Tank Level Meter RS485

Water Tank Level Ultrasonic Transducer Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

ce,ISO9001

Model Number:

KUS600

Document:

KUS600 series ultrasonic se....7.pdf

Request A Quote

Product Details

Product:

Ultrasonic Distance Sensor

Detection Range:

300mm~5000mm

Transducer Frequency:

Approx. 220kHz

Output:

RS485 + 4-20mA/0-10V

Input Power:

3.3V~24V

IP Grade:

IP68

Material:

PVDF

Type:

Waterproof

Theory:

Ultrasonic Sensor

Warranty:

12 Months

Product Name:

PVDF 5m Ultrasonic Water Level Meter

Highlight:

12V Ultrasonic Transducer Sensor

Water Tank Level Meter RS485

Water Tank Level Ultrasonic Transducer Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

10mW Resolution KWD300 Ultrasonic Noise Detection Sensor for Precise Detection

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

KWD510 M26 Hydrophone

Get Best Price

86--17719566736

Contact Now

Product Description

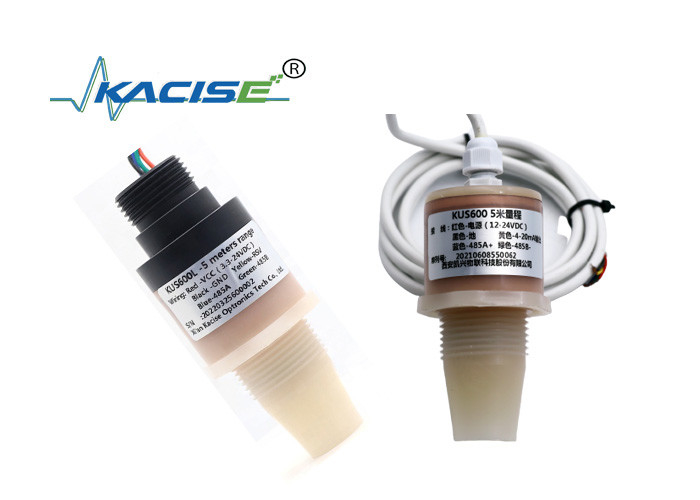

12V High Accuracy Ultrasonic Transducer Sensor Water Tank Level Meter RS485 5m

12V High Accuracy Ultrasonic Transducer Sensor Water Tank Level Meter RS485 5m 0

1. Parameter

Model: KUS600
Measuring range	600... 5000 mm. The measure distance can reach 6 meters if the power supply is 24V.
Blind spot	600 mm
Supply voltage	3.3 ... 24 VDC,ripple 10 %SS
No-load supply current I0	≤ 20 mA active period and ≤0.3mA during sleep time
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP68
shell material	PVC /PVDF/PTFE/ABS

2. Electronic interface and signals definition

Electrical connections and signal definitions

Line order	Colour	Definition
1	Red	Power is positive
2	Black	power return ground
3	Yellow	Analog output, voltage output, current output switch output
4	Blue	RS485 A+ or uart TXD
5	Green	RS485 B- or uart RXD

3. Dimensions

Unit in the diagram is mm

12V High Accuracy Ultrasonic Transducer Sensor Water Tank Level Meter RS485 5m 1

4. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

5. Ordering information

KUS	model	output	range	describe
	630	Product series model
	Custom made
		0-10V	Analog 0-10V output
		0-5V	Analog 0-5V output
		0-3V	Analog 0-3V output
		4-20mA	Analog 4-20mA output
		SW	Switch output
		Uart	Uart serial output MODBUS RTU protocol
		RS485	RS485 output MODBUS RTU protocol
			XX m	XX m means the maximum measurement distance (default 10m)
KUS	550	RS485	2m

12V High Accuracy Ultrasonic Transducer Sensor Water Tank Level Meter RS485 5m 2

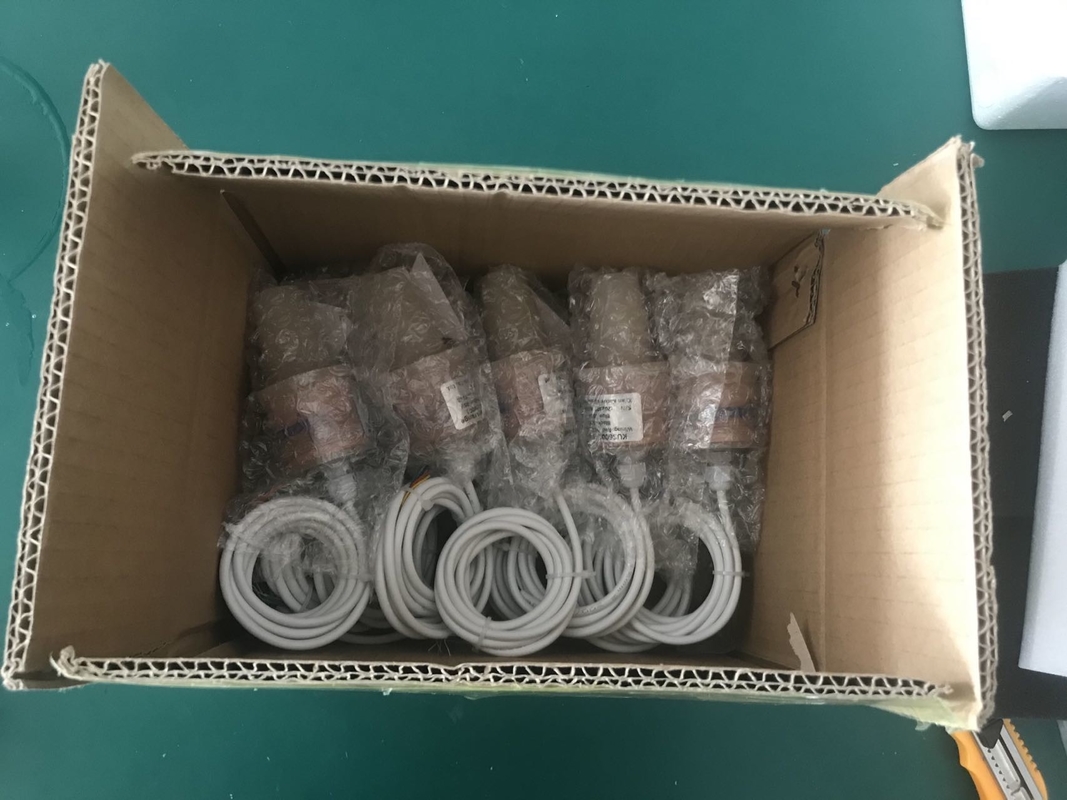

6. Packing and shipping

12V High Accuracy Ultrasonic Transducer Sensor Water Tank Level Meter RS485 5m 3
