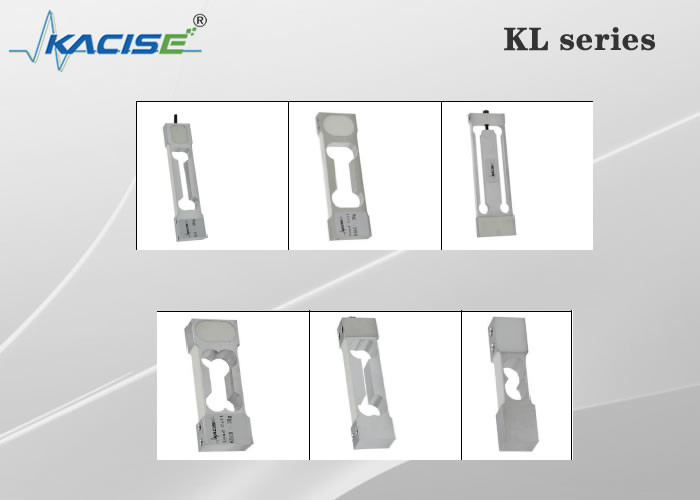

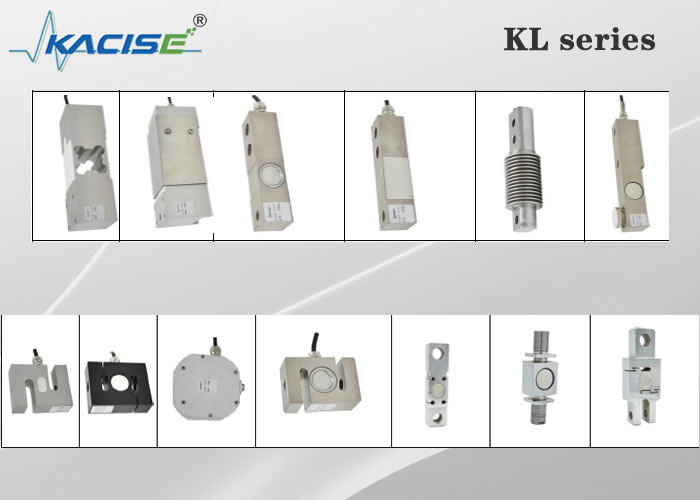

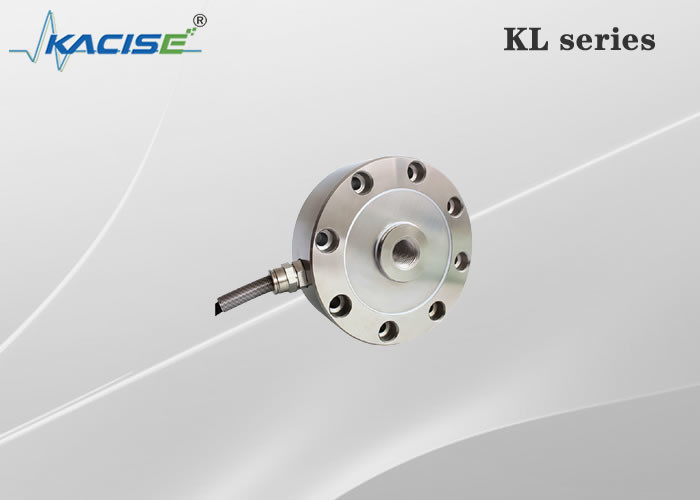

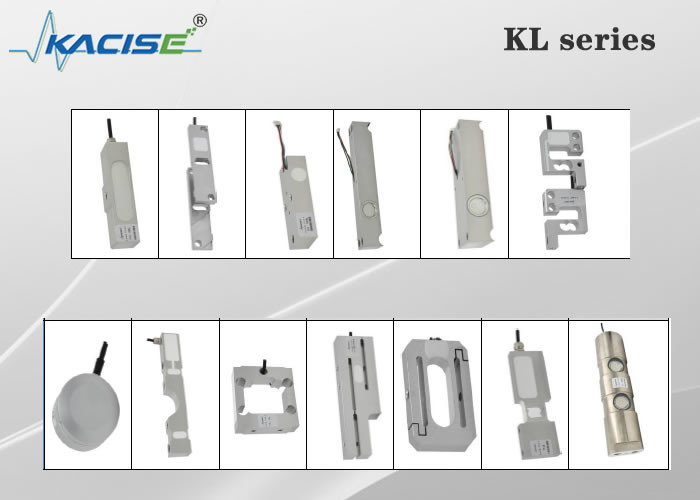

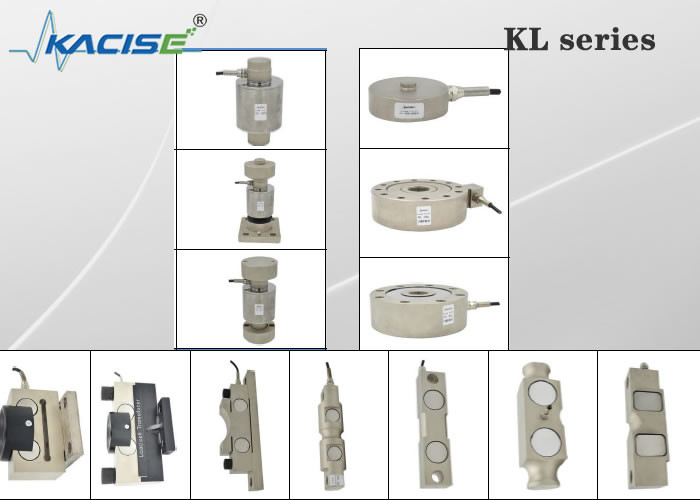

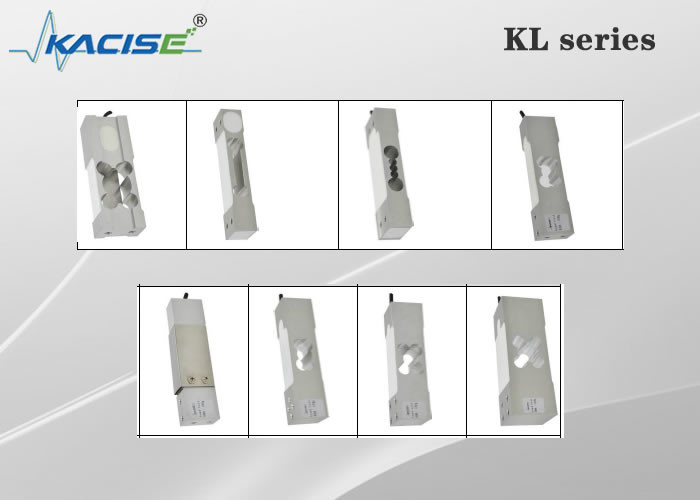

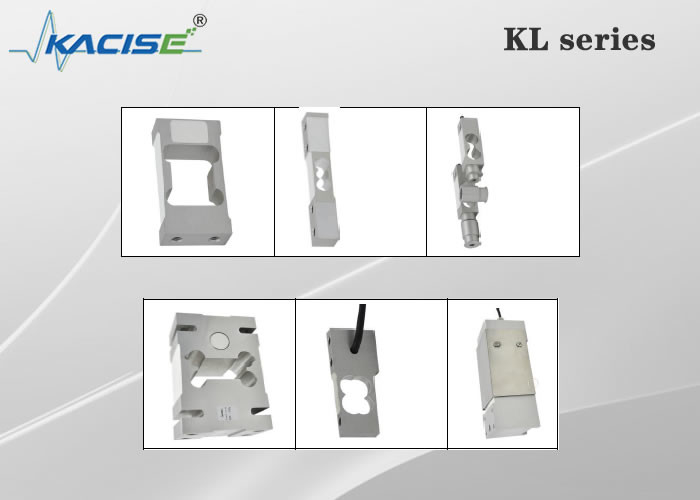

KL Series Load Cell Sensor Multiple Models 5 - 15V

KL Series Load Cell Sensor Multiple Models 5 - 15V

15V Load Cell Sensor

300kg Load Cell Sensor

KL Load Cell Weight Sensor

Place of Origin:

China

Brand Name:

Kacise

Model Number:

GXLC-DZ-0.5T

Chat Now
Chat Now
KL Series Load Cell Sensor Multiple Models 5 - 15V KL Series Load Cell Sensor Multiple Models 5 - 15V KL Series Load Cell Sensor Multiple Models 5 - 15V KL Series Load Cell Sensor Multiple Models 5 - 15V KL Series Load Cell Sensor Multiple Models 5 - 15V KL Series Load Cell Sensor Multiple Models 5 - 15V KL Series Load Cell Sensor Multiple Models 5 - 15V
Product Details
Capacity:
300kg
Rated Output:
1.2±10%mV/V
Zero Balance:
±1%F.S.
Impedance:
700/1400ohm
Ultimate Overload:
200%F.S
Safe Overload:
150%F.S
Operation Temp Range:
-20~80 ℃
Recommended Excitation:
5~15V
Highlight:

15V Load Cell Sensor

,

300kg Load Cell Sensor

,

KL Load Cell Weight Sensor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
50USD/pc
Packaging Details
carton
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100+
RELATED PRODUCTS
Good price Mavin Load Cell 100kg 300kg 500kg 1000kg online

Mavin Load Cell 100kg 300kg 500kg 1000kg

Get Best Price
Good price High Accuracy Load Cell Sensor Column Type Stainless Steel Material online

High Accuracy Load Cell Sensor Column Type Stainless Steel Material

Get Best Price
Good price 500KG GXLC-DZ-0.5T Load Cell Heavy Sensor online

500KG GXLC-DZ-0.5T Load Cell Heavy Sensor

Get Best Price
Good price GXLC-DZ-1T 1000KG Heavy Sensor Load Cell With Impedance Of 700/1400Ω online

GXLC-DZ-1T 1000KG Heavy Sensor Load Cell With Impedance Of 700/1400Ω

Get Best Price
Contact Us
86--17719566736
Chat Now
Product Description

GXLC-DZ-0.3T Load Cell

Specification

Item Parameters
Capacity 300kg
Rated output 1.2±10%mV/V
Zero balance ±1%F.S.
Non-linearity 0.05%F.S
Hysteresis 0.05%F.S
Repeatability 0.03%F.S
Creep (30min) 0.03%F.S
Temp.effect on output 0.03%F.S/10 ℃
Temp.effect on zero 0.03%F.S/10 ℃
impedance 700/1400ohm
Insulation ≥5000M ohm/100VDC
Recommended excitation 5~15V
Operation temp range -20~80 ℃
Safe overload 150%F.S
Ultimate overload 200%F.S
Cable size Φ5x3000mm


Tags：

strain gauge weight sensor

Tension Load Cell

load cell weight sensor
