Name: KWS-1100 Oil In Water Sensor Monitored Online In Real Time
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-1100
Price: 1,270.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

KWS-1100 Oil In Water Sensor Monitored Online In Real Time

IP68 Oil In Water Detector

KWS-1100 Oil In Water Sensor

Fluorescence Oil In Water Sensor

Place of Origin:

China

Brand Name:

Kacise

Model Number:

KWS-1100

Request A Quote

Product Details

Measuring Range:

5ppm（NDSA）/ 1.1ppm（BTEX）

Principle:

Fluorescence Method

Laser Wavelength:

254nm

Fluorescence Monitoring Wavelength:

360nm

Resolution:

0.01ppb

The Detection Limit:

5ppb（NDSA）/ 1ppb（BTEX）

Linearity:

R2>0.999

IP Grade:

IP68

Max. Depth:

30m Under Water

Output:

RS485, Modbus

Power Supply:

DC12-24V, Current<50mA (when Not Cleaning)

Temperature Range:

0~50℃

Highlight:

IP68 Oil In Water Detector

KWS-1100 Oil In Water Sensor

Fluorescence Oil In Water Sensor

Payment & Shipping Terms

Minimum Order Quantity

Price

1060~1480USD/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

KCW102 Low - Frequency Electromagnetic Wave Water Treatment Device

Get Best Price

KCW101 Frequency - Modulated Electromagnetic Wave Water Treatment Equipment

Get Best Price

KHM100 On - line Automatic Heavy Metal Water Quality Monitor

Get Best Price

KCW104 High - Efficiency Frequency - Sweeping Device

Get Best Price

86--17719566736

Contact Now

Product Description

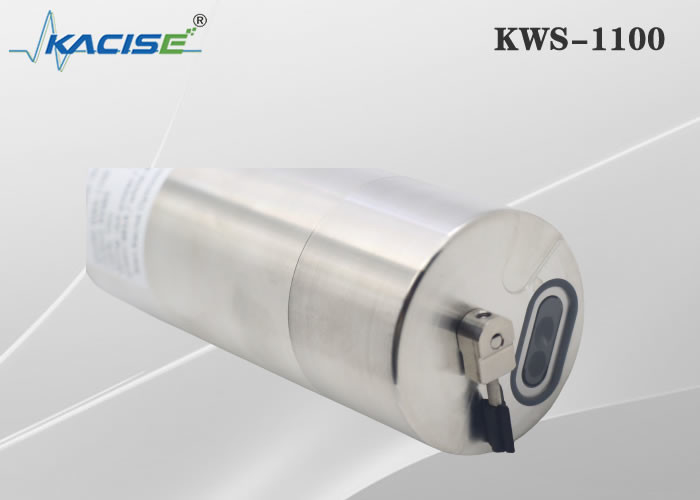

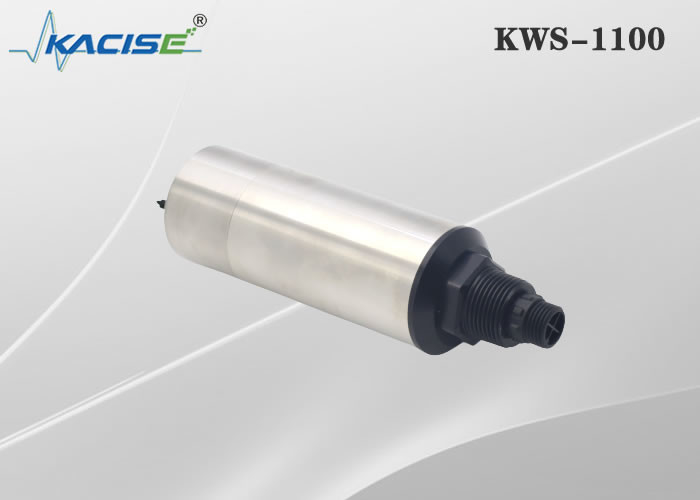

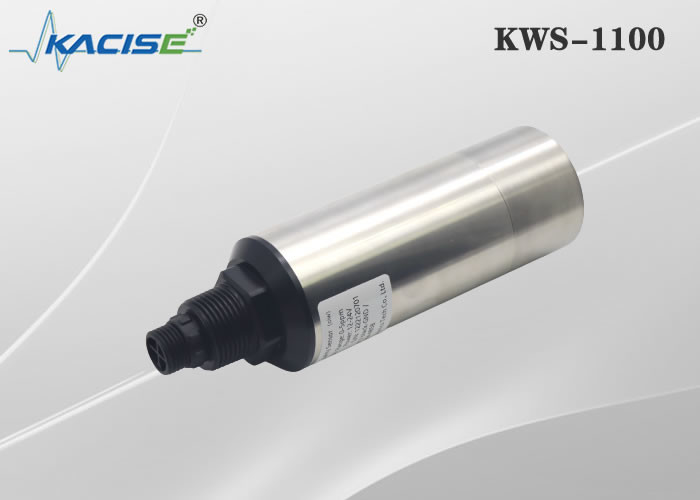

KWS-1100 Online Oil-In-Water Sensor

Introduction

Kacise online water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker, and can be monitored online in real time. The sensor has better repeatability and stability. Optional with an automatic cleaning brush, it eliminates air bubbles, reduces the effects of contamination on the measurement, makes the maintenance cycle longer, and maintains excellent stability for long-term online use. It can play an early warning role on oil pollution in water.

Principe

The oil content in the water body was monitored by ultraviolet fluorescence method, and the oil concentration in the water body was quantitatively analyzed according to the fluorescence intensity of the oil and its aromatic hydrocarbon compound and the conjugated double bond compound absorbing ultraviolet light. The aromatic hydrocarbons in the petroleum form fluorescence under the excitation of ultraviolet light, and the value of the oil in the water is calculated according to the intensity of the fluorescence.

Feature

Digital sensor, RS-485 output, support MODBUS
Optional automatic cleaning brush to eliminate the impact of oil on the measurement
Eliminate the impact of ambient light on measurements with unique optical and electronic filtering techniques
It is not affected by suspended solids in water

Technical Specifications

Model	KWS-1100
Measuring Range	5ppm(NDSA)/ 1.1ppm(BTEX)
Principle	fluorescence method
Laser wavelength	254nm
Fluorescence monitoring wavelength	360nm
Resolution	0.01ppb
The detection limit	5ppb(NDSA)/ 1ppb(BTEX)
Linearity	R²>0.999
IP Grade	IP68
Max. depth	30m under water
Temperature Range	0~50℃
Output	RS485, Modbus
Installation	Submersible
Power Supply	DC12-24V, current<50mA (when not cleaning)
Cable Length	Standard 10m, customizable
Casing Material	316L (titanium alloy customizable)
Self-cleaning Function	Optional

Dimension
