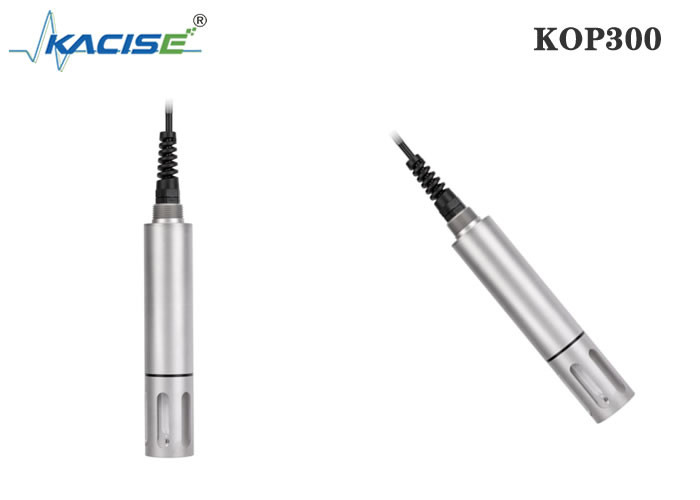

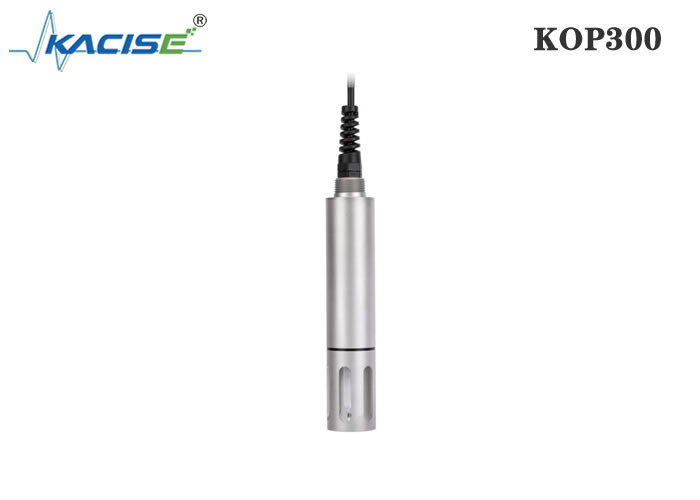

Industrial KOP300 Online ORP Sensor Easy Networking And System Integration

Industrial KOP300 Online ORP Sensor Easy Networking And System Integration

  • Industrial KOP300 Online ORP Sensor Easy Networking And System Integration
  • Industrial KOP300 Online ORP Sensor Easy Networking And System Integration
Industrial KOP300 Online ORP Sensor Easy Networking And System Integration
Product Details:
Place of Origin: China
Brand Name: Kacise
Model Number: KOP300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100+
Contact Now
Detailed Product Description
Measuring Range: ORP: (- 2000 ~ + 2000) MV Temperature: (0 ~ 60) °C Accuracy: ≤ ± 1 Mv
Repeatability: ≤ ± 1 Mv Resolution: 0.1 Mv
Response Time: ≤10s Drifts: ≤ ± 1 Mv
Calibration Period: Six Months Protection Level: IP68
Supply Voltage: (12/24) V DC Material Quality: Stainless Steel, POM
High Light:

System Integration Online ORP Sensor

,

Industrial Online ORP Sensor

,

Online ORP Probe

KOP300 Online ORP Sensor Brief Datasheet

Industrial KOP300 Online ORP Sensor Easy Networking And System Integration 0

Instrument Introduction
KOP300 online ORP sensor is an online water quality analyzer based on digital water quality analysis platform. Integrated design, using industrial online electrode, digital, intelligent sensor design concept. The functions of electrode signal detection, temperature detection and digital signal conversion are realized in the instrument. RS485 signal output, easy networking and system integration, widely used in surface water, pollution sources and other industries.



Characteristics

  • Integrated design, immune to electromagnetic interference
  • Industrial Online composite electrode, can work stably for a long time
  • Stainless steel case, IP68 waterproof grade, suitable for various working conditions
  • RS485 signal output, Standard Modbus protocol, easy integration, networking

Technical Specifications

Model number KOP300
Measurement parameter ORP, temperature
Method of measurement Glass electrode method
Measurement mode Immersion measurement
Measuring range

ORP: (- 2000 ~ + 2000) mV

Temperature: (0 ~ 60) °C

Accuracy ≤ ± 1 mv
Repeatability ≤ ± 1 mv
Resolution 0.1 mv
Response time ≤10s
Drifts ≤ ± 1 mv
Calibration period Six months
Temperature range (0 ~ 60) °C
Protection level IP68
MTBF ≥1440h/Time
Means of communication RS485(Modbus RTU), maximum baud rate 115200 bps
Supply voltage (12/24) V DC
Power consumption < 0.5W
Material Quality Stainless steel, POM
Weight 0.5 kg
Contour dimension 205 mm × φ40 mm
