| Place of Origin: | China |
| Brand Name: | Kacise |

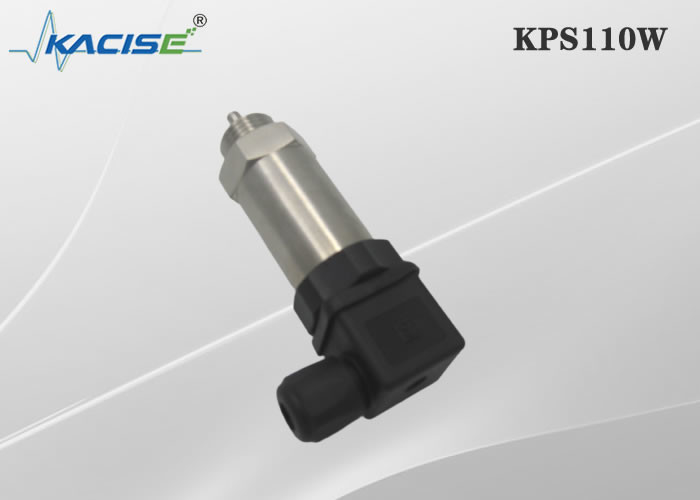

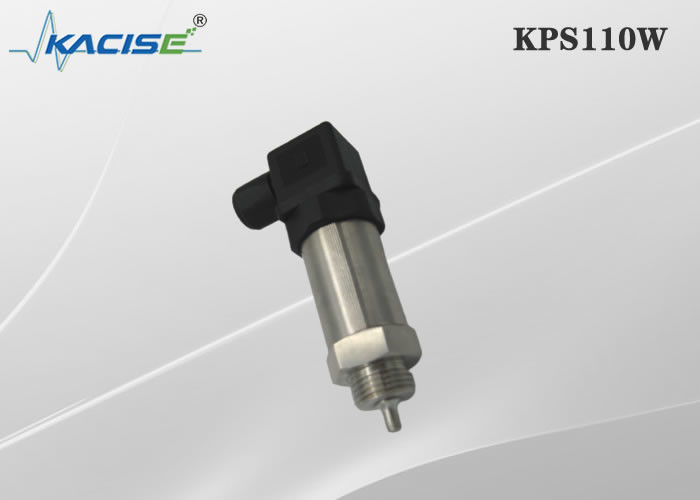

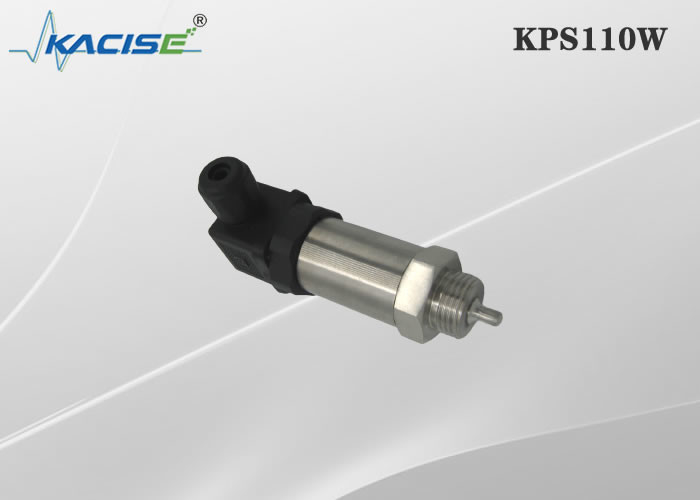

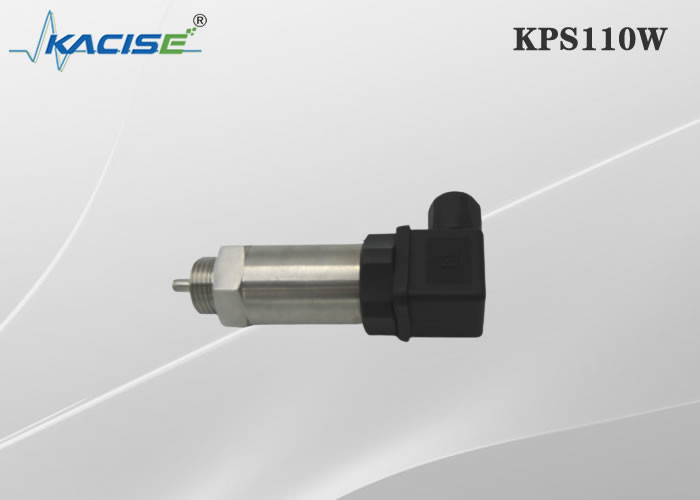

| Model Number: | KPS110W |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 96USD/pc |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Pressure Range: | -0.1MPa┅0Mpa~0.01Mpa┅100Mpa | Temperature Range: | -25℃~80℃ |
|---|---|---|---|
| Output Type: | RS485 Temperature And Pressure Output | Power Supply: | 12~30V DC |
| Case: | Stainless Steel | Accuracy: | 0.5% |
| High Light: | Reverse Polarity Protection Pressure Temperature Transmitter,RS485 Pressure Temperature Transmitter,30V Temperature Precision Pressure Sensor |
||
| Pressure Range | -0.1MPa┅0Mpa~0.01Mpa┅100Mpa | |
| Temperature Range | -25℃~80℃ | |
| Overload | 2 times full scale pressure or 110MPa (whichever is the smaller) | |
| Pressure Type | Gauge pressure, absolute pressure, sealed gauge pressure | |
| Temperature Resistance | PT100 or PT1000 platinum resistance | |
| Output Type | RS485 temperature and pressure output | |
| Power Supply | 12~30V DC | |
| Load Resistance | ≥10k | |
| Insulation Resistance | 100MΩ,100V DC | |
| Case | stainless steel | |
| Sensor | 316L stainless steel | |
| Sealing Ring | fluororubber | |
| Cable | ∅7.5mm polyethylene special cable | |
| Degree of Protection | IP65 (plug type) | IP68 (cable type) |
| Compensation Temperature | -10℃～+80℃ | |
| Operating Temperature | -25℃～+80℃ | |
| Accuracy | 0.5% | |
| Zero Temperature Coefficient | 0.03%FS/℃(≤100kPa); 0.02%FS/℃(＞100kPa) | |
| Full Temperature Coefficient | 0.03%FS/℃(≤100kPa); 0.02%FS/℃(＞100kPa) | |
| Long-Term Stability | ±0.3%FS/year (max.) | |
5.Ordering Information
| KPS110W | Pressure and Temperature Transmitter | ||||||
|
|
Pressure Range | -0.1MPa┅0MPa～0.01 MPa┅100MPa | |||||
| ［0～X］KPa or MPa | X: the actual pressure range | ||||||
| Temperature Range | -25℃~80℃ | ||||||
| ［0～Y］℃ | Y: the actual temperature range | ||||||
| Code | Output | ||||||
| V | RS485 | ||||||
| Material | |||||||
| Code | Diaphragm | Interface | Casing | ||||
| 22 | Stainless steel 316L | Stainless steel | Stainless steel | ||||
| 24 | Stainless steel 316L | Stainless steel 316L | Stainless steel 316L | ||||
| Code | Other function | ||||||
| B1 | Hirschmann connection | ||||||
| B2 | Fixed cable | ||||||
| PC3 | G1/2 male thread with flush film | ||||||
| PC5 | M20×1.5 male thread with flush film | ||||||
| C3 | G1/2 male thread | ||||||
| C5 | M20×1.5 male thread | ||||||
| G | gauge pressure | ||||||
| A | absolute pressure | ||||||
| S | sealed gauge pressure | ||||||
| KPS110W -［0～100］kPa -［0～50］℃ - V - 22 - B1C5G | |||||||
