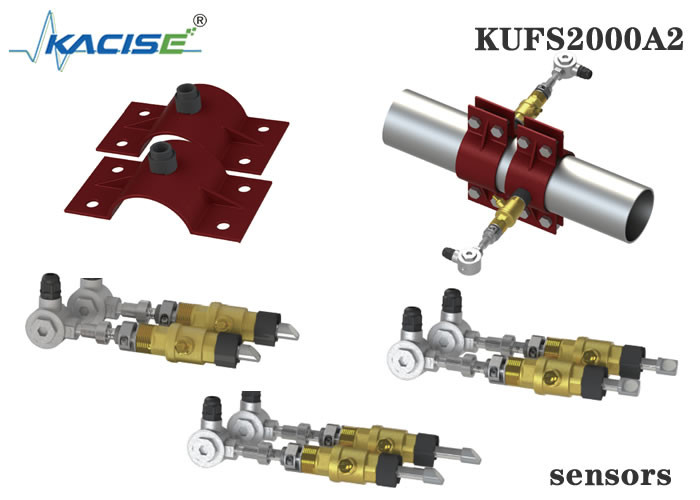

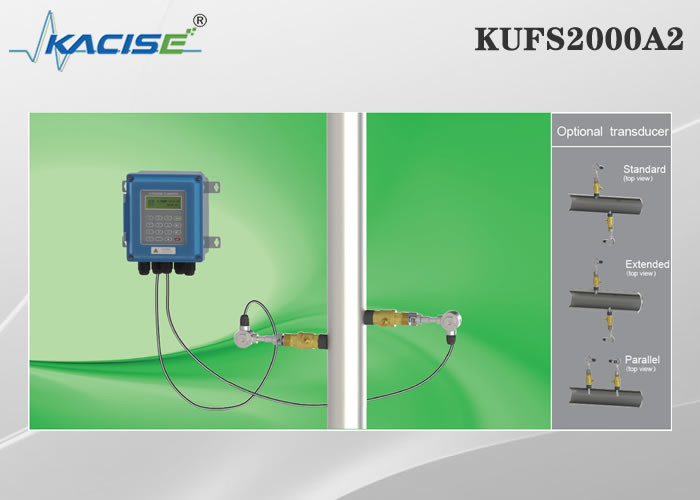

Optional Insertion Sensors
Standard Insertion Sensor
· Suitable for the pipeline can be directly welded, like carbon steel and stainless.
· Pipeline thickness ≤ 2 0
· Measuring range: DN50~DN6000
· Temperature range:-30~+160℃
Extended Insertion Sensor
· Suitable for the pipeline cannot be directly welded, like cement pipe, cast iron, PVC, steel or composite material.
· Pipeline thickness ≤ 7 0
· Measuring range: DN50~DN6000
· Temperature range:-30~+160℃
Parallel Insertion Sensor
· Suitable for installation of insufficient space.
· Suitable for either weldable or non-weldable pipeline.
· Unlimited pipeline thickness, insertion depth=1/3 inner diameter.
· Measuring range: DN80~DN6000
· Temperature range: -30~+160℃
Pipe Clamp
By using pipe clamp, the insertion sensor can be installed without welding. There is no need to cut off
water during installation. Especially suitable for cement pipe, cast iron pipe, PVC, copper pipe or
composite material.
