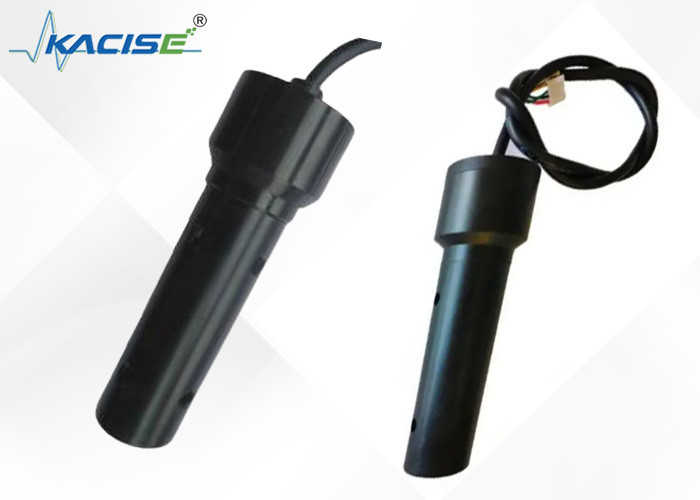

Immersion Type Water Quality Sensor RS485 Dissolved CO2 Sensor For Aquaculture

Immersion Type Water Quality Sensor RS485 Dissolved CO2 Sensor For Aquaculture

  • Immersion Type Water Quality Sensor RS485 Dissolved CO2 Sensor For Aquaculture
  • Immersion Type Water Quality Sensor RS485 Dissolved CO2 Sensor For Aquaculture
Immersion Type Water Quality Sensor RS485 Dissolved CO2 Sensor For Aquaculture
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: Intrinsically safe mode E, RoHS; CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Contact Now
Detailed Product Description
Principle: NDIR Infrared Absorption Measuring Range: 2000ppm/5000ppm/10000ppm
Response Time: 10 Sec Accuracy: ±20ppm/±50ppm/±300ppm
Protection Level: IP68 Deepest Depth: Underwater 60 Meters
High Light:

Immersion Water Quality Sensor

,

RS485 Dissolved Co2 Sensor

,

10000PPM Water Quality Monitoring Equipment

 KWS5000 Dissolved CO2 Sensor In Water For Shrimp Fishing And Aquaculture In Seawater Or Fresh Water



Immersion Type Water Quality Sensor RS485 Dissolved CO2 Sensor For Aquaculture 0

Product Description



Introduction

The KWS5000 is a gas detection module for detecting the concentration of carbon dioxide in an aqueous solution. Patented optical cavity, imported light source and dual channel detector for spatial double reference compensation. KWS5000 has good selectivity, anaerobic dependence and long life. It also has UART, IIC digital output, analog voltage output and PWM frequency output mode, which is convenient for customers to choose applications. The KWS5000 provides customers with zero calibration, sensitivity calibration and clean air calibration commands, and provides customers with manually calibrated MCDL pins. The customer can conveniently use the external free-flowing clean air to perform a relative zero calibration of the sensor module. The KWS5000 uses a convection-diffusion venting method and a protective cover to accelerate the gas convection diffusion rate and protect the gas permeable membrane. Removable construction for easy cleaning of the sensor housing. The KWS5000's unique waterproof construction is removable for easy maintenance and cleaning. KWS5000 can be used to measure the concentration of dissolved CO2 gas in water. It can also be used for HVAC and indoor air quality monitoring, agricultural and livestock production process monitoring, and agricultural product storage status monitoring. It can be installed in home networks, ventilation systems and controllers. Wall-mounted, robotic and automotive applications can also be applied to other equipment to control air quality or hypoxia monitoring.



Dimension

                                     Immersion Type Water Quality Sensor RS485 Dissolved CO2 Sensor For Aquaculture 1

Feature

  • Convective diffusion ventilation and protective cover
  • Removable structure for easy cleaning of the sensor sleeve
  • Realizing spatial double-channel reference compensation
  • No oxygen dependence
  • Long working life

Specification

Item Parameter
Principle NDIR infrared absorption
Measuring range 2000ppm/5000ppm/10000ppm
Response time 10 sec
Accuracy ±20ppm/±50ppm/±300ppm
Protection level IP68
Deepest depth Underwater 60 meters
Temperature range 0 ~ 80°C
Output Support RS-485, MODBUS protocol
Power supply DC 5V
Size Φ27*104.8mm
Probe cable length Φ27*104.8mm
Probe cable length 10 m, customizable 5 m, 15 m and 30 m cable
cap life 1 year
Maximum working pressure 1.5bar
product material POM

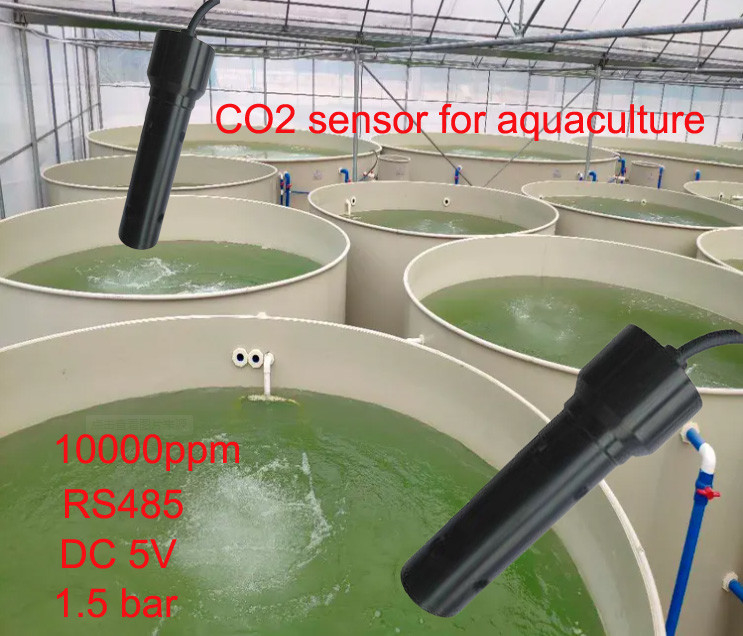

Application

          Immersion Type Water Quality Sensor RS485 Dissolved CO2 Sensor For Aquaculture 2



Shipping & Payment

                                Immersion Type Water Quality Sensor RS485 Dissolved CO2 Sensor For Aquaculture 3
