Strong Corrosion Resistance Radar Level Gauge 80G KLD800 Series KLD804

                 KLD800 series 80G Radar Level Gauge Strong corrosion resistance


The high-frequency 80g radar level gauge has the advantages of low maintenance, high performance, high precision, high reliability, and long service life. Compared with contact instruments such as capacitors and weights, it has incomparable advantages. The transmission of microwave signals is not affected by the atmosphere, so it can meet the requirements of harsh environments such as volatile gas, high temperature, high pressure, steam, vacuum and high dust in the process. This product is suitable for harsh environments such as high temperature, high pressure, vacuum, steam, high dust and volatile gas. Continuous measurement of different material levels is possible.

The main technical indicators of the instrument have reached or surpassed similar products at home and abroad, and it is easy to install and debug. It can be used alone or in a network. It can be widely used in metallurgy, building materials, energy, petrochemical, water conservancy, food and other industries.




​
Feature

⚫ Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the
minimum measurement blind zone is 0.05m.
⚫ The smaller antenna size satisfies the measurement of more working conditions.
⚫ A variety of lens antennas, smaller launch angles, more concentrated energy, stronger
echo signals, and higher reliability than other radar products under the same industrial
and mining conditions.
⚫ It has stronger penetration and can be used normally in the case of adhesion and
condensation.
⚫ The dynamic signal range is larger, and the measurement of low dielectric constant
media is more stable.
⚫ Multiple measurement modes, radar response in fast measurement mode

Technical Specification and Model Selections



FM radar level gauge installed normally three detection methods

First of all, carry out on-site inspection to observe whether the actual working conditions on site are suitable for the model product of the radar level gauge, and confirm whether the installation position is correct and whether the installation environment affects the use of the instrument, etc., so as to avoid the final failure and affect the use. In addition to the on-site inspection of the radar level gauge, other instruments must also carry out this work, which is relatively basic.
Next, perform a power-on check. Because after the power is turned on, it can be observed whether the radar level gauge enters step by step according to the normal startup procedure and displays normally. And there are many accidents that occur because of power-on, or not power-on at all, and the instrument will not work normally. If the site permits, you can also observe whether the level gauge changes linearly and other parameters through the material in and out.
Next, a connection check is performed. This overlaps with the on-site inspection, that is, the linearity of the level gauge can be observed by connecting to the corresponding software. Generally speaking, instruments with buttons can also achieve this function. Users can also check the connection through professional instruments to judge whether the radar level gauge is operating normally.
In addition to the above methods, there are many other ways to detect the situation of the radar level gauge after installation, so that the instrument can be used normally without affecting the work progress.


Connection

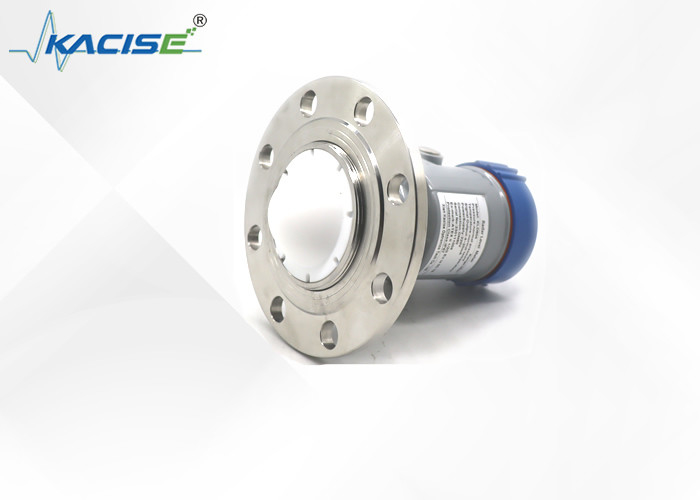

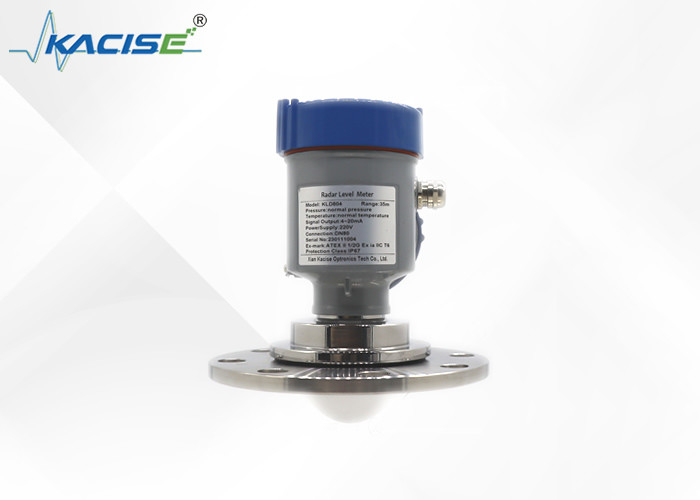

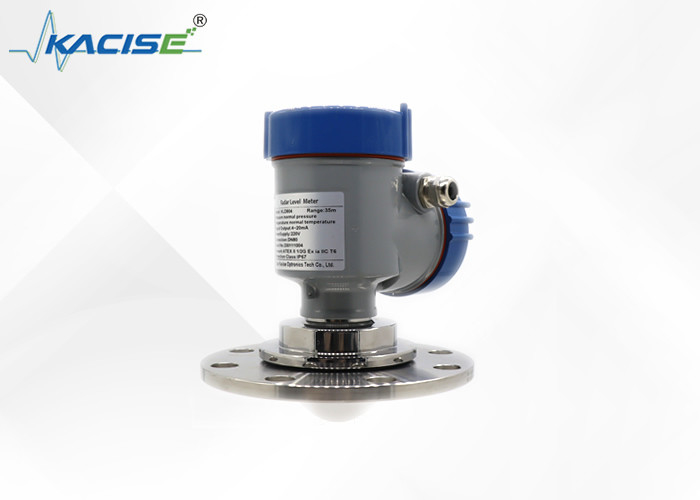

KLD800 series product show
