| Price: | $199.00 - $390.00/pieces |
|---|---|
| Packaging Details: | Carton or customers requests available |
| Supply Ability: | 3000 Piece/Pieces per Month 4-20mA output air flow meter price |
| Accuracy: | Up To 1.0% | Power Supply: | 24VDC, 3*1.2V Battery Or AC90 ~260V Power Adapter |
|---|---|---|---|
| Output Signal: | Pulse / 4~20mA / RS485 / RS232 /OCT | Pipe Diameter: | 15mm~6000mm |
| Measuring Medium: | Hydrogen, Natural Gas, Nitrogen,carbon Dioxide, Oxygen, .etc | Temperature: | Customized Available |
| Protection Grade: | IP68 | Applications: | Water Supply,heating Supply |
| Product Name: | Air Flow Meter | Keywords: | Air Flow Meter |
| Port: | Shanghai Or Other | ||
| High Light: | 20mA Output Air Flow Meter,IP68 Air Flow Meter |
||

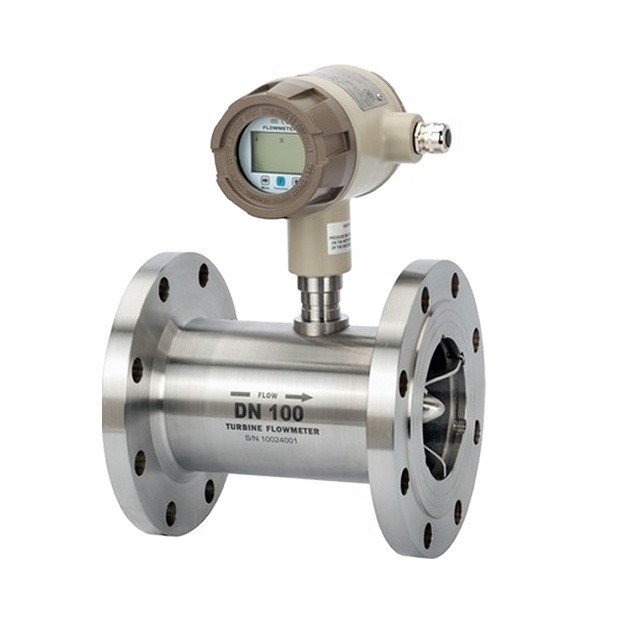

The operation of the 4-20mA output air flow meter price is based on the measurement of the velocity of gas. The flowing gas is accelerated and conditioned by the meters straightening section. The straightening vanes prepare the gas flow profile by removing. undesired swirl, turbulence and asymmetry before the gas flows to the turbine wheel. The dynamic forces of the flowing fluid cause the rotor to rotate.
The turbine wheel is mounted on the main shaft, with special high precision, low friction ball bearings. The turbine wheel has helical blades that have a known angle relative to the gas flow. The conditioned and accelerated gas drives the turbine wheel with an angular velocity that is proportional with the gas velocity.

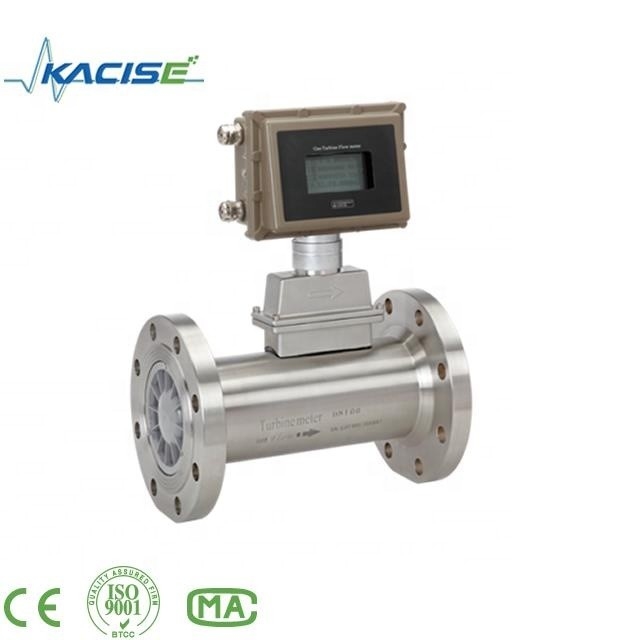

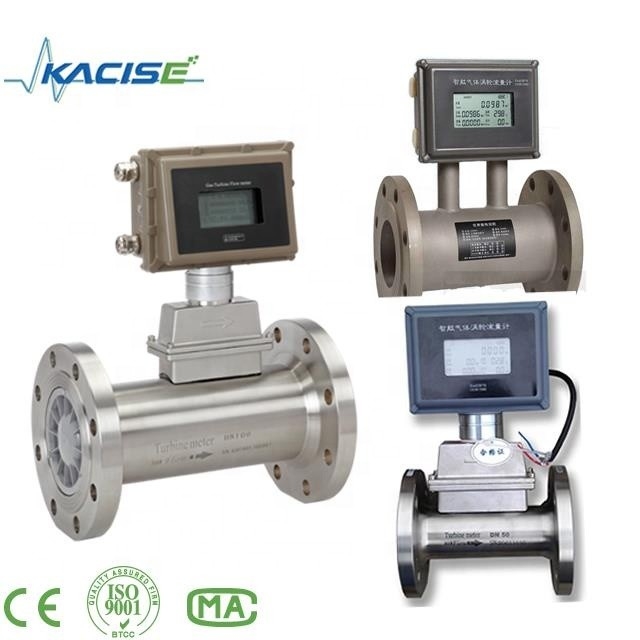

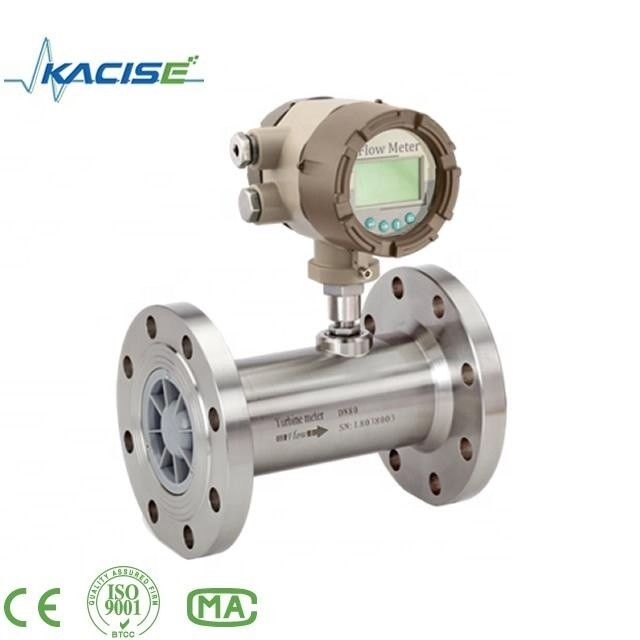

KTFG series gas turbine flow meter is widely used for measurement of natural gas, coal gas, liquefied gas and light hydrocarbon gas, etc.
Feature of 4-20mA output air flow meter price
1. Dedicated instrument for gas measurement
2. Dedicated instrument for oil & gas recycle system
3. High accuracy: ±1.5%, ±1.0% or ±0.75%
4. Good repetitiveness
5. Test temperature, pressure and flow of measured gas; automatic tracking and compensation of flow; indication of gas total volume under standard status; real-time query of temperature, pressure, time and date, etc.
6. Built-in pressure & temperature sensor, high safety performance, compact structure & beautiful outlook
7. Low power consumption, more than 3 years service life for one 3V 10AH lithium cell
8. Instrument factor, total flow value kept for 10 years after power off
Technical Data of 4-20mA output air flow meter price
|
DN (mm) & Connection |
25 ~ 300 flange connection; 25,40,50 thread connnection. |
|
Accuracy |
±1.5%, ±1.0% or ±0.75% (need special order) |
|
Turndown |
1:10; 1:20; 1:30 |
|
Instrument Material |
Body: 304 SS; impeller: anti-corrosive ABS or high-quality aluminum alloy; indicator: cast aluminum |
|
Medium Temperature(℃) |
-30 ℃ ~ +80 ℃ |
|
Ambient Conditions |
Temperature: -20℃~+60℃, relative humidity 5% ~ 90%, atmospheric pressure 86 ~ 106 KPa |
|
Output Signal |
Sensor: pulse frequency signal, low level less than 0.8V, high level more than 8V Transmitter: two wire 4-20mA DC current signal |
|
Power Supply |
Sensor: +12V DC, +24V DC (optional) Transmitter: +24V DC Local indication type: built-in 3V lithium cell |
|
Signal Transmission Line |
STVPV3×0.3 (3 wire), 2×0.3 (2 wire) |
|
Transmission Distance |
No more than 1000 m |
|
Signal Line Interface |
M20×1.5(F) |
|
Explosion Proof |
ExdIIBT6 |
|
Enclosure Protection |
IP65 |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
We supply 4-20mA output air flow meter price, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for 4-20mA output air flow meter price?
A: Yes, we have the warranty of 12 months.
