| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXUM2000 series |
| Price: | $199.00 - $390.00/sets |
|---|---|
| Packaging Details: | Carton or customers requests available |
| Supply Ability: | 3000 Set/Sets per Month |
| Medium: | Water,sea Water,alcohol,Industrial Waste Water,oil | Power Supply: | 24VDC, 3*1.2V Battery Or AC90 ~260V Power Adapter |
|---|---|---|---|
| Output Signal: | Pulse / 4~20mA / RS485 / RS232 /OCT | Accuracy: | Up To 1% |
| Temperature: | -22~320℉ | Protection Grade: | IP67 |
| Model Number: | GXUM Series | Product Name: | Ultrasonic Liquid Flow Meter |
| Application: | Water Supply,heating Supply,energy Conservation | Keywords: | Ultrasonic Liquid Flow Meter |
| Port: | Shanghai Or Other | ||
| High Light: | IP67 Liquid Flow Meter,Turbine Liquid Flow Meter,Liquid Turbine Flow Meter |
||
GXUM2000 series High quality high precision natural gas flow meter
Introduction

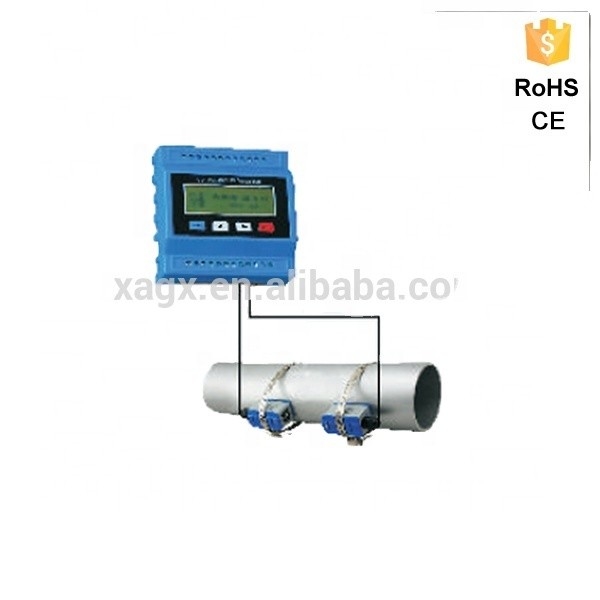

Ultrasonic flow meter is ideal for flow surveys and closed pipe application where non-invasive measurement of liquids is required. The advantages of high measurement accuracy, good consistency, battery power supply, easy operation and portability, make this meter the smallest and lightest flowmeter in domestic and a significant portable ultrasonic flow meter.
Feature

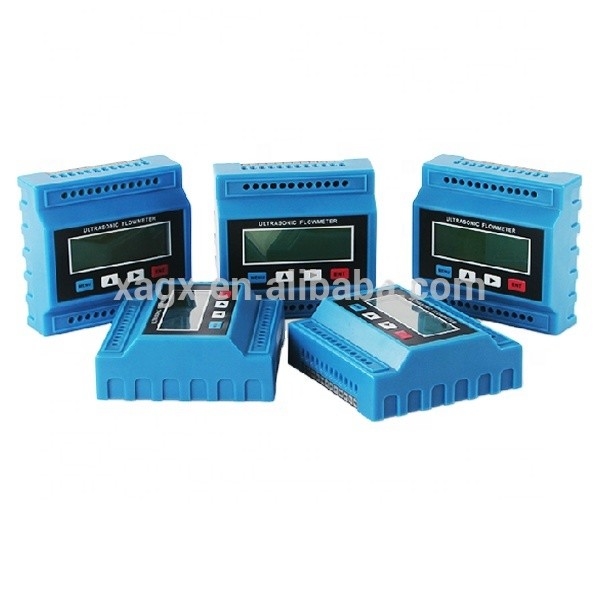

GXUMM2000 series ultrasonic flow module/RTU
|
Parts |
Parameters in detail |
|
|
Host part |
Theory |
Ultrasonic time gap |
|
Accuracy |
±1% |
|
|
Option method |
4-keyboard support magnetic rod operation |
|
|
Signal output |
1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm |
|
|
1 channel OCT pulse output (default pulse width is 200ms, and can be modify between 6 to 1000ms) |
||
|
1 channel relay output (3A@220V) |
||
|
Signal input |
3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc. |
|
|
1 channel mV input use to pt100 for calorimeter |
||
|
Digital port |
RS485 support Mod-bus protocol and support firmware update |
|
|
Cable |
Special cable for RS485 the range up to 1000m |
|
|
Suit pipe |
Pipe material |
Steel, cast iron cement, copper, PVC, Aluminum, glass, etc |
|
Inner DN |
15~6000mm |
|
|
Sensor position |
It’s better the sensor fix at the position of at least 10D far away of upstream, or 5D far away of upstream, at least 20D far away from the pump outlet(D is the inner diameter of the pipe) |
|
|
Suit flow |
Media |
Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc |
|
Temperature |
-30~160℃ |
|
|
Turbidity |
10000pm not so much baubles |
|
|
Flow speed |
0~±10m/s |
|
|
Environment |
temperature |
Host: -20~60℃; Sensor: -30~160℃ |
|
Humidity |
Host: 85%RH; Flow sensor: IP68, less than 2m under water |
|
|
Power supply |
DC8~36V or AC85~265V( optional) |
|
|
Consumption |
1.5W |
|
1.Are you a trade company or a manufacturer?
A: We are an ISO,CE, approved manufacturer specialized in flowmeter isolator Products.
2.What is your MOQ?
A: Mix 2 Size in 20FT, and 4 Size in 40HQ container. Support LCL
3.What is your delivery date?
A: The delivery date is about 5-10 days after receipt of payment.
4.What is your payment terms?
A: T/T,D/A,D/P,L/C,Western union,Paypal,Moneygram.
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 5-10 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
