Place of Origin:
Shaanxi, China
Brand Name:
Xi'an GX- air flow meter price
Model Number:
KUF2000 Series

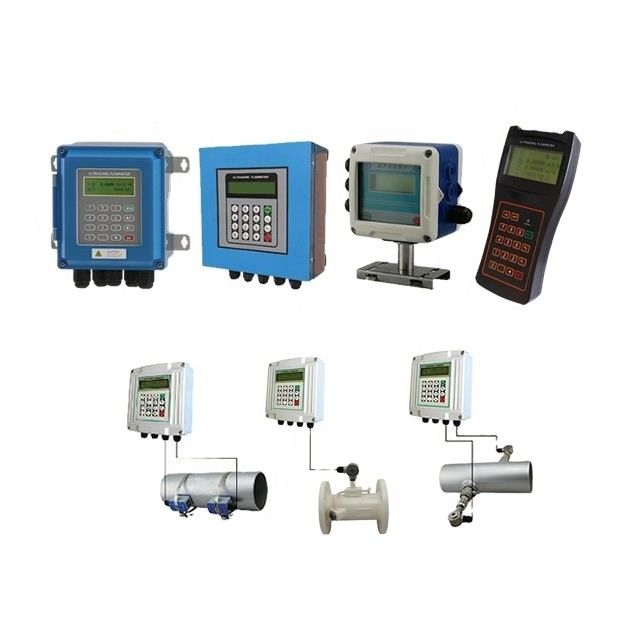

Ultrasonic flow meter is ideal for flow surveys and closed pipe application where non-invasive measurement of liquids is required. The advantages of high measurement accuracy, good consistency, battery power supply, easy operation and portability, make this meter the smallest and lightest flowmeter in domestic and a significant portable ultrasonic flow meter.
Features
GXUMF2000 series smart ultrasonic flow meter
| Parts | Detail | |
|---|---|---|
| Host part | Theory | Ultrasonic time gap |
| Accuracy | ±1.0% | |
| Option method | 4-keyboard support magnetic | |
| Signal output | 1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm | |
| 1 channel OCT pulse output (default pulse width is 200ms, and can be modify between 6 to 1000ms) | ||
| 1 channel relay output (3A@220V) | ||
| Signal input | 3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc. | |
| 1 channel mV input use to pt100 for calorimeter | ||
| Digital port | RS485 support Mod-bus protocol and support firmware update | |
| Cable | Special cable for RS485 the range up to 1000m | |
| Suit pipe | Pipe material | Steel, cast iron cement, copper, PVC, Aluminum, glass, etc. |
| Dimension | 15~6000mm | |
| Sensor position | It is better the sensor fix at the position of at least 10D far away to stream, or 5D far away to stream, at least 20D far away from the pump outlet. | |
| Suit flow | Medium | Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc. |
| Temperature | -30~160°C | |
| Turbidity | 10000pm not so much baubles | |
| Flow speed | 0~±10m/s | |
| Environment | Temperature | Host: -20~60°C; Sensor: -30~160°C |
| Humidity | Host: 85%RH; Flow sensor: IP68, less than 2m under water | |
| Power supply | DC8~36V or AC85~265V(optional) | |
| Consumption | 1.5W | |
GXUMS2000 series separated type ultrasonic flow meter
| Item | Performance and Parameter | |
|---|---|---|
| Host part | Principle | Ultrasonic time gap |
| Accuracy | ±1% | |
| Display | 2×20 character LCD with backlight, support the language of Chinese, English and Italy Convertor dimension:170*180*56cm | |
| Signal output | 1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1% | |
| 1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms) | ||
| 1 way Relay output | ||
| Signal input | 3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level | |
| Connect the temperature transducer Pt100, can finish the heat/energy measurement | ||
| Data interface | Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc. | |
| Cable | Twisted-pair cable, generally, the length under 50 meters; Select the RS485 communication. The transmission distance can over 1000m. | |
| Pipe Condition | Pipe material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
| Pipe Diameter | 15~6000mm | |
| Straight length pipe | Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump. | |
| Medium | Type of Liquid | Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids |
| Temperature | -30~160°C | |
| Turbidity | 10000pm not so much baubles | |
| Flow speed | 0~±10m/s | |
| Environment | Temperature | Host: -20~60°C; Sensor: -30~160°C |
| Humidity | Host: 85%RH; Flow sensor: IP68, less than 2m under water | |
| Power supply | DC8~36V or AC85~265V( optional) | |
| Consumption | 1.5W | |
GXUMM2000 series ultrasonic flow module/RTU
| Parts | Parameters in detail | |
|---|---|---|
| Host part | Theory | Ultrasonic time gap |
| Accuracy | ±1% | |
| Option method | 4-keyboard support magnetic rod operation | |
| Signal output | 1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm | |
| 1 channel OCT pulse output (default pulse width is 200ms, and can be modify between 6 to 1000ms) | ||
| 1 channel relay output (3A@220V) | ||
| Signal input | 3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc. | |
| 1 channel mV input use to pt100 for calorimeter | ||
| Digital port | RS485 support Mod-bus protocol and support firmware update | |
| Cable | Special cable for RS485 the range up to 1000m | |
| Suit pipe | Pipe material | Steel, cast iron cement, copper, PVC, Aluminum, glass, etc |
| Inner DN | 15~6000mm | |
| Sensor position | It’s better the sensor fix at the position of at least 10D far away of upstream, or 5D far away of upstream, at least 20D far away from the pump outlet(D is the inner diameter of the pipe) | |
| Suit flow | Media | Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc |
| Temperature | -30~160°C | |
| Turbidity | 10000pm not so much baubles | |
| Flow speed | 0~±10m/s | |
| Environment | temperature | Host: -20~60°C; Sensor: -30~160°C |
| Humidity | Host: 85%RH; Flow sensor: IP68, less than 2m under water | |
| Power supply | DC8~36V or AC85~265V( optional) | |
| Consumption | 1.5W | |
GXUMH2000 series Ultrasonic Handheld flow meter
GXUMP2000 series Portable ultrasonic flow meter
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 5-10 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
