| Price: | $100.00 - $300.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Controller Casing Material: | Aluminium Alloy (IP65) | Power Supply: | 220 VAC Or 110VAC Or 24VDC |
|---|---|---|---|
| Power Consumption: | 3W | Contact Rating: | SPDT 5A/250VAC |
| Installation: | Vertical Or Horizonta | Port: | Shanghai Or Other |

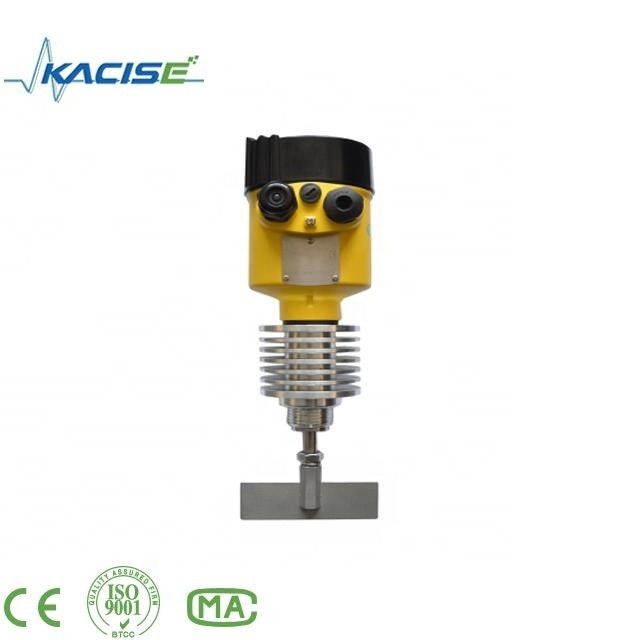

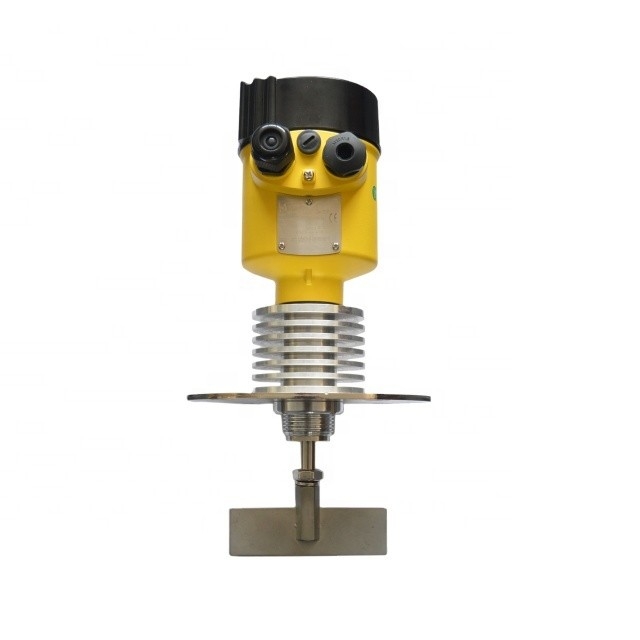

KRS stop rotation material level switch is connected with the clutch by using the drive shaft of synchronous motor. When the material is not in contact, the motor keeps running normally. When the blade contacts the material and causes resistance, the motor will stop rotating.The internal mechanism outputs a contact signal at the same time.
Features
Parameters
| | ||||
Model | KRS10 thread type | Model | KRS20 Flange type | ||
Connection | G1” thread(customizable) | Connection | JIS2-1/2”*5kg Flange thread(customizable) | ||
rotor speed | 1RPM | rotor speed | 1RPM | ||
Operating Temperature | -20℃~80℃ | Operating Temperature | -20℃~80℃ | ||
Measure the torque | 0.1-1.0KG.CM | Measure the torque | 0.1-1.0KG.CM | ||
Proportion | ≥0.5g/cm3 | Proportion | ≥0.5g/cm3 | ||
| | ||||
Model | KRS 21 High temperature Flange type | Model | KRS11 High temperature thread lange type | ||
Connection | JIS2-1/2”*5kg Flange thread(customizable) | Connection | G1” thread(customizable) | ||
rotor speed | 1RPM | rotor speed | 1RPM | ||
Operating Temperature | -20℃~200℃ | Operating Temperature | -20℃~200℃ | ||
Measure the torque | 0.1-1.0KG.CM | Measure the torque | 0.1-1.0KG.CM | ||
Proportion | ≥0.5g/cm3 | Proportion | ≥0.5g/cm3 | ||
| | ||||
Model | KRS30 Shaft length adjustable type | Model | KRS31 high temperature Shaft length adjustable type | ||
Connection | JIS2-1/2”*5kg Flange thread(customizable) | Connection | JIS2-1/2”*5kg Flange thread(customizable) | ||
rotor speed | 1RPM | rotor speed | 1RPM | ||
Operating Temperature | -20℃~80℃ | Operating Temperature | -20℃~200℃ | ||
Measure the torque | 0.1-1.0KG.CM | Measure the torque | 0.1-1.0KG.CM | ||
Proportion | ≥0.5g/cm3 | Proportion | ≥0.5g/cm3
| ||
L=450mm, could adjust to 650mm L=650mm, could adjust to 1000mm L=750mm, could adjust to 1200mm
| L=450mm, could adjust to 650mm L=650mm, could adjust to 1000mm L=750mm, could adjust to 1200mm
| ||||
