| Place of Origin: | Shaanxi, China |
| Brand Name: | Xi'an GX- vortex flowmeter |
| Model Number: | GXUMF2000 Series |
| Price: | $199.00 - $390.00/pieces |
|---|---|
| Packaging Details: | Carton or customers requests available vortex flowmeter |
| Supply Ability: | 3000 Piece/Pieces per Month vortex flowmeter |
| Accuracy: | Up To 1.0% | Power Supply: | 24VDC, 3*1.2V Battery Or AC90 ~260V Power Adapter |
|---|---|---|---|
| Output Signal: | Pulse / 4~20mA / RS485 / RS232 /OCT | Pipe Diameter: | 15mm~6000mm |
| Measuring Medium: | Water, Corrosive Acid Liquid And Alkaline Liquid, Alcohol, Beer, Etc. | Temperature: | Customized Available |
| Protection Grade: | IP68 | Applications: | Water Supply,heating Supply |
| Product Name: | Vortex Flowmeter | Keywords: | Vortex Flowmeter |
| Port: | Shanghai Or Other | ||
| High Light: | IP68 Vortex Flow Sensor,Ultrasonic Digital Vortex Flowmeter,Functional Digital Vortex Flowmeter |
||
Description

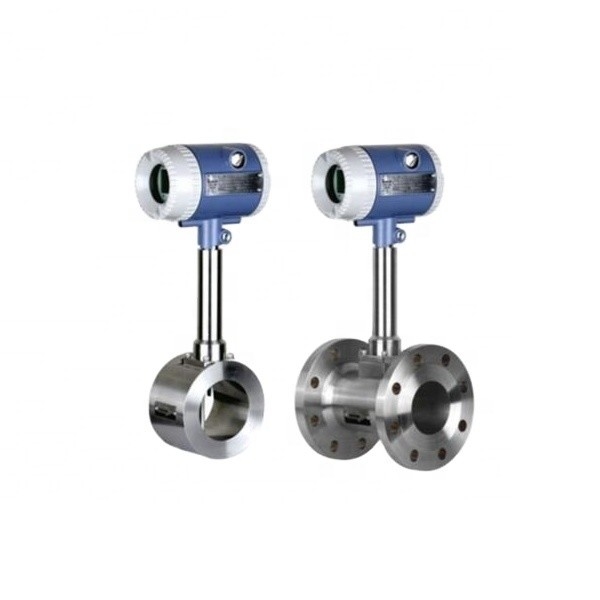

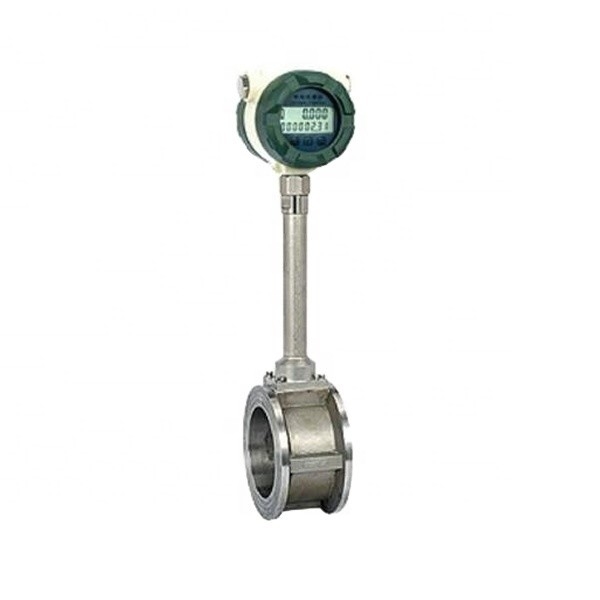

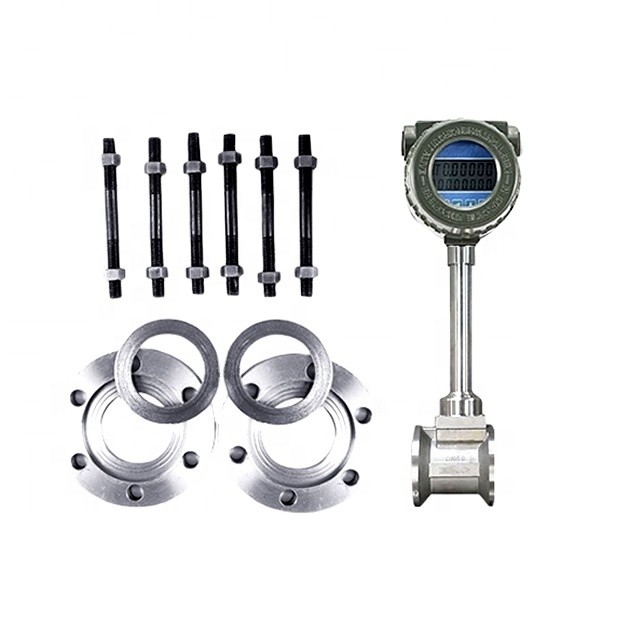

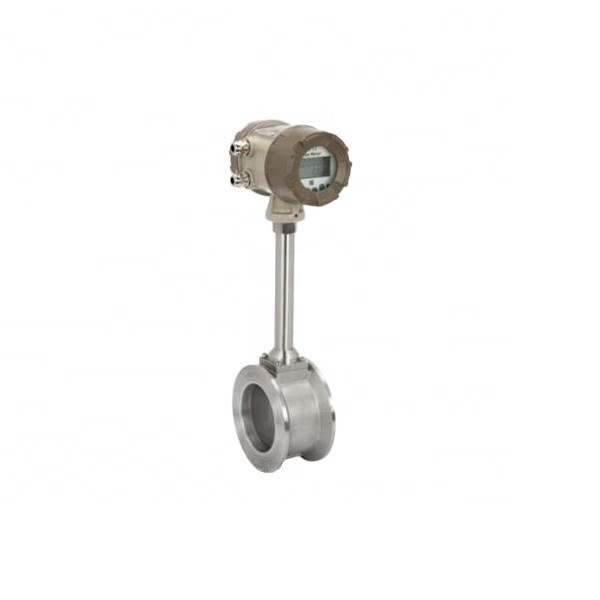

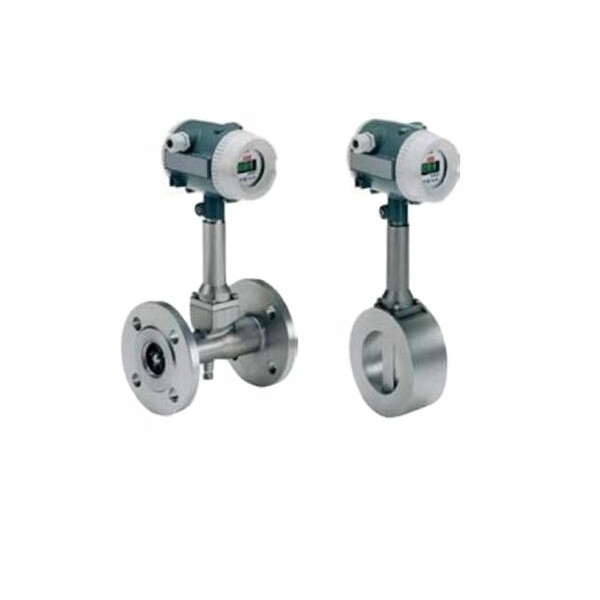

Vortex flowmeter is based on the principle of Karman vortex research and production, mainly for industrial pipe flow measurement fluid medium, such as a gas, liquid, steam and other media. It features a small pressure loss, large measuring range, high accuracy in the measurement of actual volume flow is hardly affected by fluid density, pressure, temperature, viscosity and other parameters. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be long-term stability. Vortex flowmeter piezoelectric stress sensors, high reliability, can work within the operating temperature range of -20 ℃ ~ + 250 ℃ for. Standard analog signals, digital pulse signal output, easily with computers and other digital systems supporting the use of a more advanced and ideal measuring instruments.
Features
|
Flow meter Accuracy |
1.0% (Liquid), 1.5% (Gas) |
|
Class of Protection
|
IP65 |
|
Output |
4-20 mA with HART® 4-20 mA with HART® and Scalable Pulse Output FOUNDATION™ fieldbus with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, and 1 Integrator function block (1 PID function block optional) |
|
Wetted Material |
Stainless Steel - 316/316L and CF3M |
|
Flange Options |
ANSI Class 150 to 900 |
|
Operating Temperatures |
-330¡ãF to 800¡ãF (-200¡ãC to 427¡ãC) |
|
Line Size |
Flanged - 1-in to 12-in (25 to 300 mm) |
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 5-10 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
