| Price: | $200.00 - $6,000.00/pieces |
|---|---|
| Packaging Details: | Wooden crates or customer requirements |
| Supply Ability: | 2000 Piece/Pieces per Month negotiable |
| Pipe Diameter: | DN10-250mm | Accuracy: | ±0.1%(liquid),±0.35%(gas) |
|---|---|---|---|
| Signal Output: | 4-20mA,0-10khz | Temp. Range: | -40~350℃ |
| Pressure: | ≤6.3mpa | Material: | 316L |
| Power Supply: | 24VDC 220VAC | Port: | Shanghai Or Other |

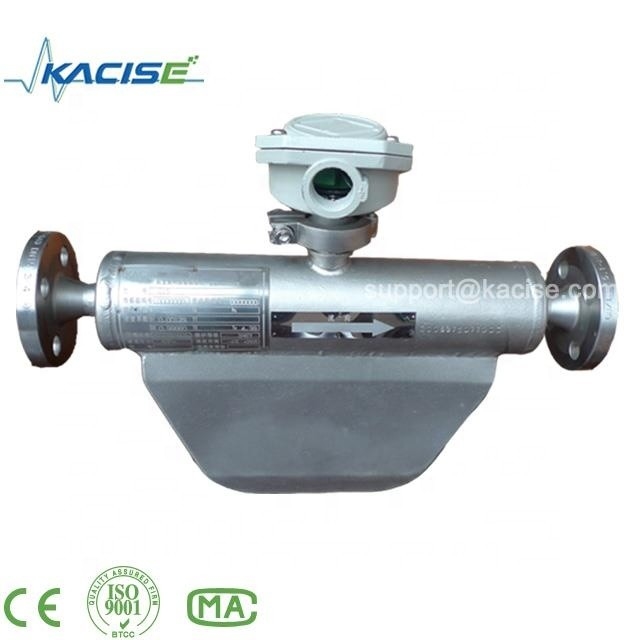

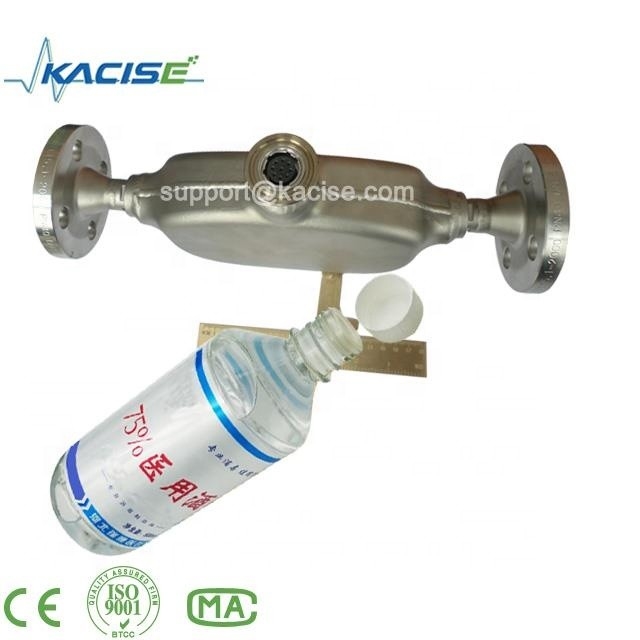

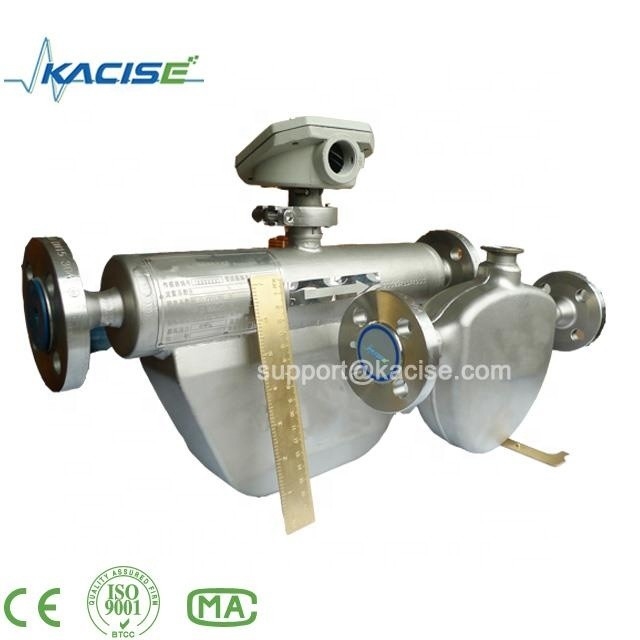

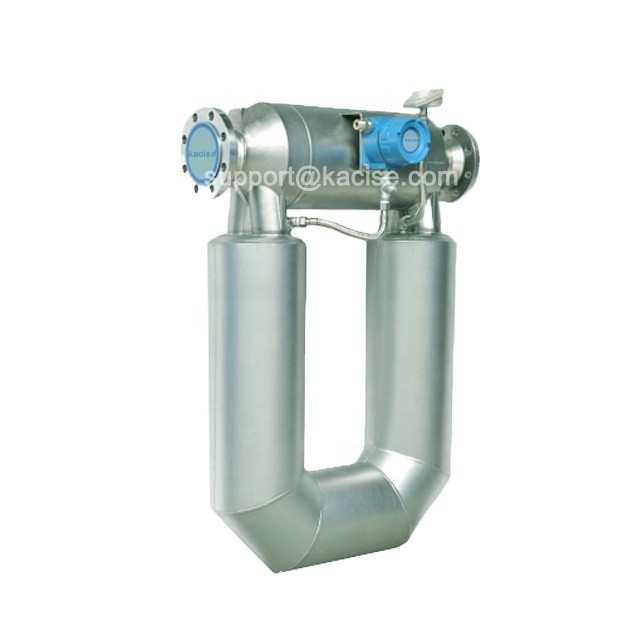

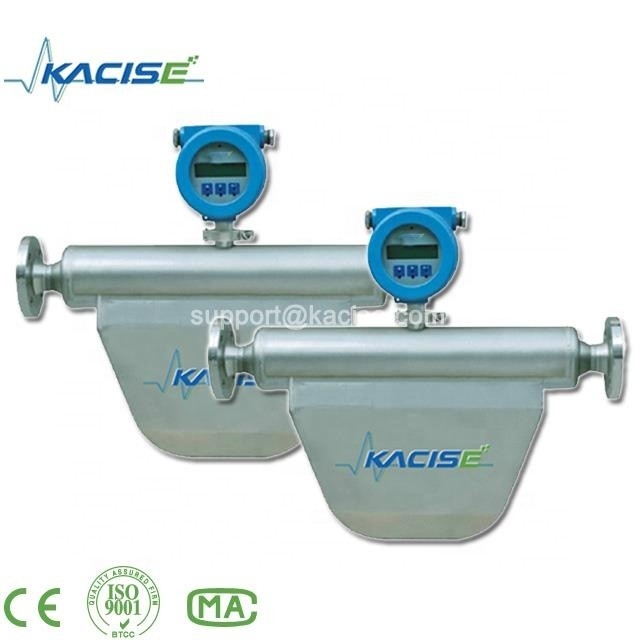

Industrial water coriolis mass flow meter features
1. Double-U or double-C flow tube ensures high accuracy and customer’s requirement.
2. Provides integrated mass flow, volum flow, density, temperature measurement and relative calculated parameter.
3. Easy on Installation, do not need rectifier and filter parts.
4. Fixed parts, maintenace free. High stability, no need for frequent disassembly calibration.
5. Allow low-range operation, reducing pressure loss and energy consumption waste.
6. Integrated installation, low installation costs.
7. Extremely high accuray and long-term stability, could be used for business transaction.
8. Ultra-wide measure range, could measure gas accurately.
9. Transmitter can be exchanged, and will not be influenced by area temperature.
Dimensions of large - scale instrument
Model | Weld Neck Flanges-ANSI B16.5 |
A |
B |
C |
E |
F |
W |
G |
K |
d |
D | |
DN | LB | |||||||||||
KMF-1-6c | 100 | 150 | 670 | 510 | 740 | 858 | 1092 | 260 | 19.1 | 190.5 | 157.2 | 228.6 |
KMF-1-6CD | 125 | 150 | 670 | 510 | 740 | 858 | 1092 | 260 | 22.4 | 215.9 | 185.7 | 254 |
KMF-1-6D | 150 | 150 | 860 | 670 | 950 | 1130 | 1370 | 280 | 22.4 | 241.3 | 215.9 | 279.4 |
APPLIED RANGE
FAQ
1.Q:How long will you get our reply
A:We Will contact you as soon as possible but within 12 hours. Whatsapp:
2.Q:Could I get samples?
A:Yes, samples are available.
3.Q: What certificates do we have ?
A:We have the certification of ISO,CE and SGS etc.,we could send them to you by email.
4.Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality with reasonable price.
5.Q:Could you provide me the shortest lead time?
A:We have inventory for standard models. Pls tell me your detailed requirements, we will send to you as early as we can.
6.Q:Could I visit your factory?
A:Welcome! our factory is located in shanxi province, China.
7.Q: How soon can we arrange your production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
