| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KMF series |
| Price: | $200.00 - $6,000.00/pieces |
|---|---|
| Packaging Details: | Wooden cases or customer requirements |
| Supply Ability: | 3000 Piece/Pieces per Month negotiable |
| Measured Medium: | Liquid/Gas/Double Phases/Triple Phases | Minimum Measuring Range: | 0-1kg/h |
|---|---|---|---|
| Accuracy: | ±0.2/±0.1 Optional | Temperature Range: | -300℃~350℃ |
| Package: | Wooden/ Carton Box Package | Measuring Theory: | Coriolis Force |
| Keywords: | Crude Oil Flow Meters | Port: | Shanghai Or Other |

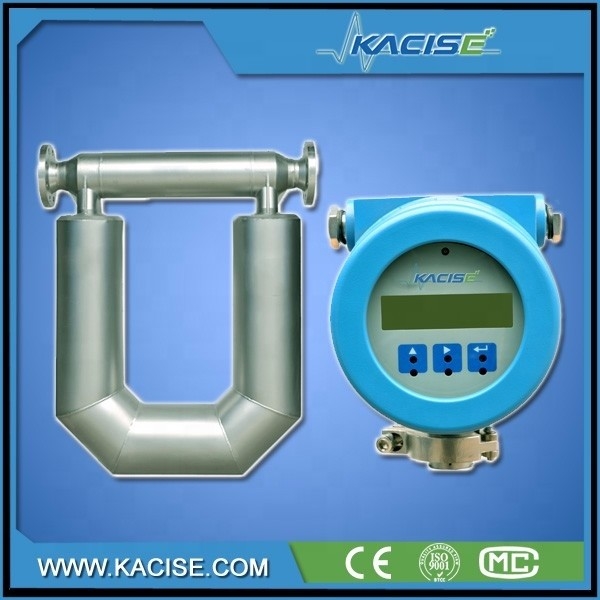

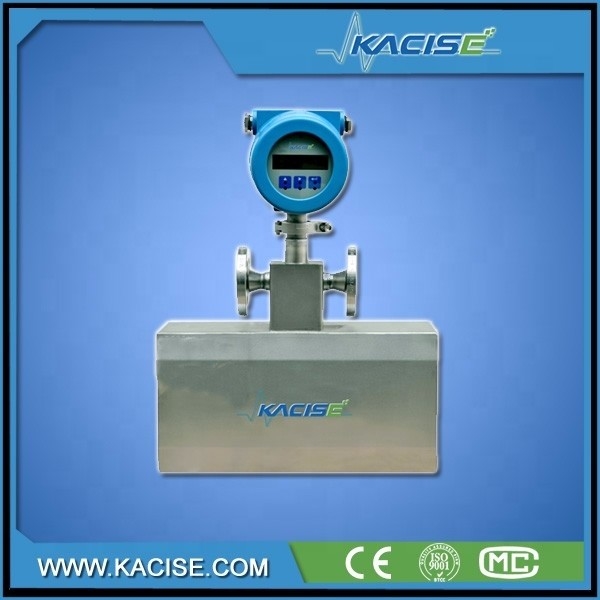

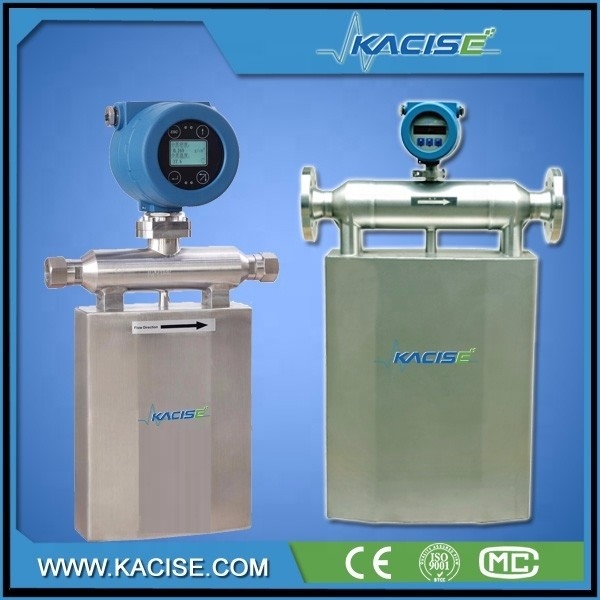

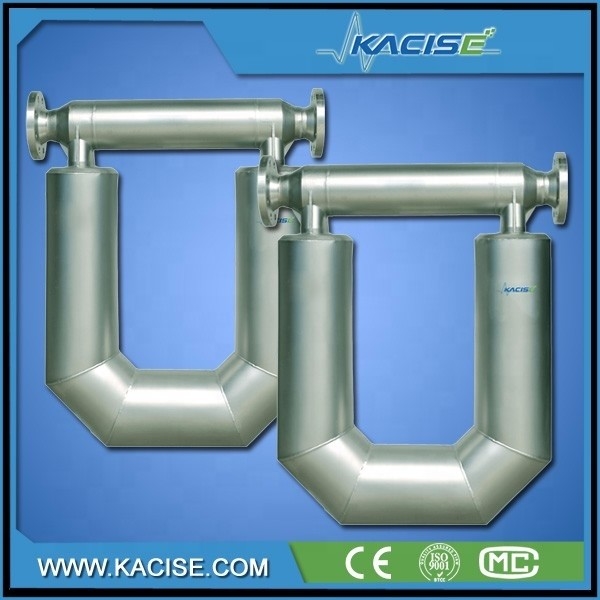

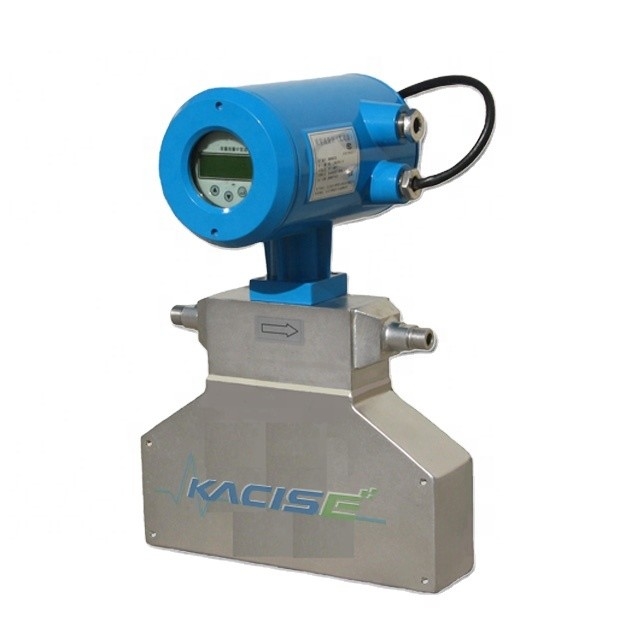

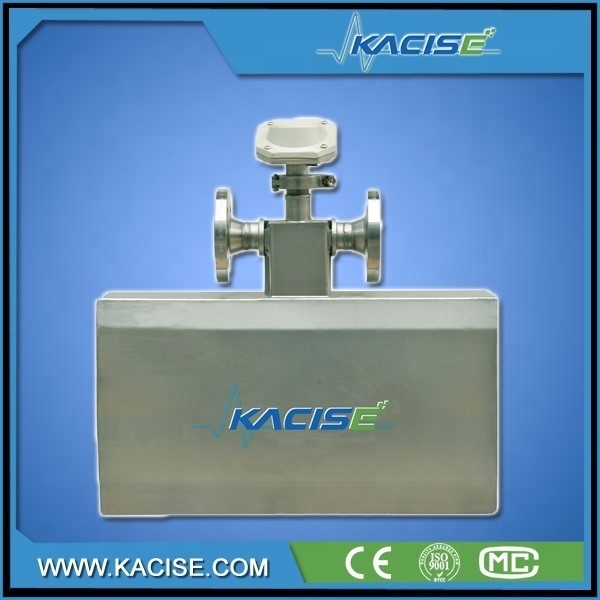

crude oil flow meters is a new type flow meter which is designed according to Micro Motion and Coriolis principle.This kind of new flow meter can measure the fluid directly in a sealed pipeline. It consists of two sections: Sensor and Signal Transmitter.
Features
1.Measuring fluid flow rate directly (It is significant to the energy measurement and 2.chemical reaction during the producing detection)
3.High Measurement accuracy: (0.1%~0.5%)
4.Wide Application (Besides general fluid measurement, other industrial medium which is hard to be measured by general flow meters also can be measured, such as Non-Newtonian fluid and Slurries etc.)
5.Low Installation Requirement: (there is no requirement for straight pipe upstream or downstream) Reliability, low maintenance rate.
Application
The KMF crude oil flow meters can be used in the following fields to meet the requirements of ingredient, mixing processes and commercial measurement.
Chemical: containing chemical reaction system
Petroleum: moisture content analysis
Lipids: including vegetable oils, animal fats and other oils
Pharmaceutical
Painting
Paper making
Textile printing and dyeing
Dimensions of large - scale instrument
|
Model | Weld Neck Flanges-ANSI B16.5 |
A |
B |
C |
E |
F |
W |
G |
K |
d |
D | |
|
| DN | LB |
|
|
|
|
|
|
|
|
|
|
| KMF-1-6c | 100 | 150 | 670 | 510 | 740 | 858 | 1092 | 260 | 19.1 | 190.5 | 157.2 | 228.6 |
| KMF-1-6CD | 125 | 150 | 670 | 510 | 740 | 858 | 1092 | 260 | 22.4 | 215.9 | 185.7 | 254 |
| KMF-1-6D | 150 | 150 | 860 | 670 | 950 | 1130 | 1370 | 280 | 22.4 | 241.3 | 215.9 | 279.4 |
APPLIED RANGE
FAQ
Q: Why choosing Coriolis crude oil flow meters but not the other flow meters?
A:Coriolis crude oil flow meters has huge difference with the volumetric flow meters.All the other flow meters except the Coriolis mass flow meters could be called as volumetric flow meters, including, turbine flow meters, thermal mass flow meters, vortex flow meters, electromagnetic flow meters, etc.
For the Coriolis crude oil flow meters:
The measurement of the Coriolis crude oil flow meters will NOT be influenced by the factors of temperature, pressure, density, viscosity, etc. And the compensation calculation is NOT required.
The accuracy of the Corioliscrude oil flow meters is ±0.1%, ±0.2% . The accuracy will NOT be influenced by the factors mentioned above.
Compared to this,
For the Volumetric Flow Meters:
The measurement of the volumetric flow meters WILL BE influenced by the factors of temperature, pressure, density, viscosity, etc. And the compensation calculation is required.
The accuracy of the volumetric flow meters is said to be reached by ±0.5%. While, the actual accuracy is hard to reach this level of ±1%. The accuracy will be influenced by factors as mentioned above.
Q:Could I get samples?
A:Yes, samples are available.
Q: What certificates do we have ?
A:We have the certification of ISO,CE and SGS etc.,we could send them to you by email.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have inventory for standard models. Pls tell me your detailed requirements, we will send to you as early as we can.
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
