| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KWS series water quality sensor |
| Price: | $800.00 - $1,500.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 2000 Piece/Pieces per Week pressure transducer transmitter |
| Usage: | Water Quality Sensor | Output: | Support RS-485, MODBUS Protocol, Support RS-485, MODBUS Protocol, RS485, Modbus |
|---|---|---|---|
| Brand: | PH Sensor | Measuring Range: | 0-50ppm Or 0-0.40FLU |
| Principle: | Fluorescence Method | Accuracy: | ±3%F.S |
| Temperature Range: | 0~50℃ | Resolution: | 0.01ppm |
| Dimension: | Diameter 45*175.8mm | Power Supply: | DC5-12V Current Less Than 50mA When Not Cleaning |
| Port: | Shanghai Or Other |
Feature
Digital sensor, RS-485 output, support MODBUS
Optional automatic cleaning brush to eliminate the impact of oil on the measurement
Eliminate the impact of ambient light on measurements with unique optical and electronic filtering techniques
It is not affected by suspended solids in water
Introduction

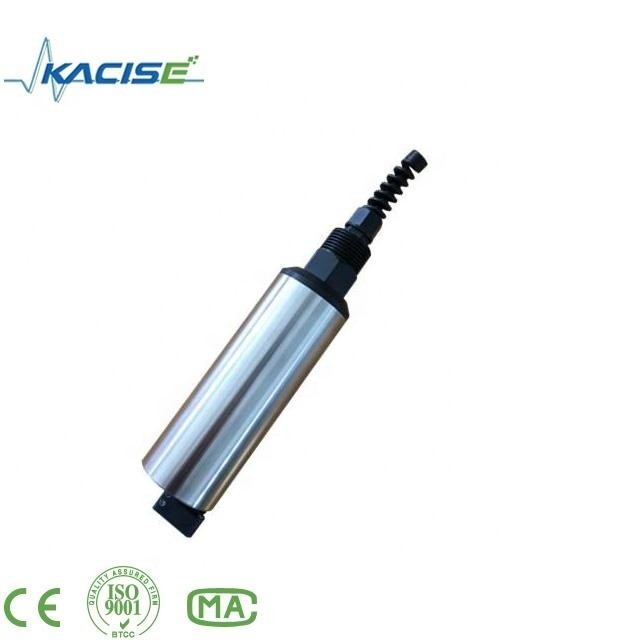

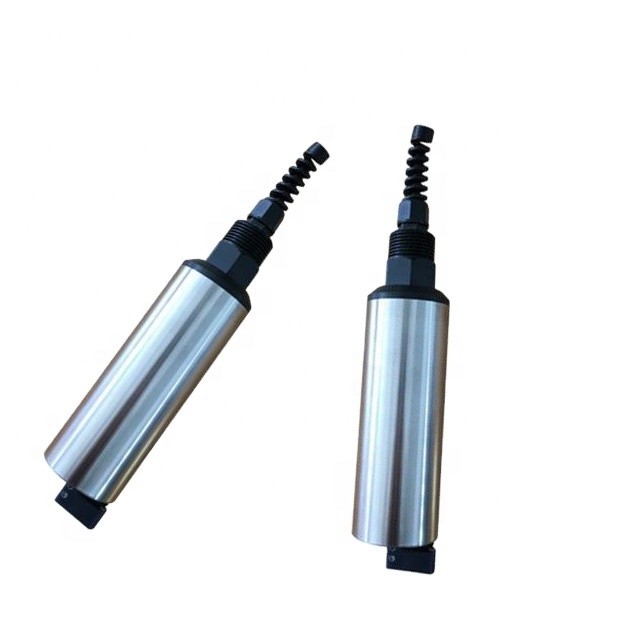

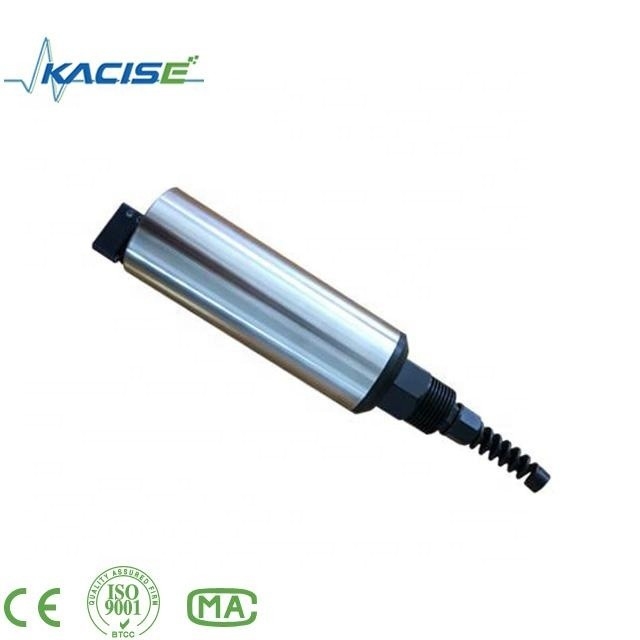

Kacise online water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker, and can be monitored online in real time. The sensor has better repeatability and stability. Optional with an automatic cleaning brush, it eliminates air bubbles, reduces the effects of contamination on the measurement, makes the maintenance cycle longer, and maintains excellent stability for long-term online use. It can play an early warning role on oil pollution in water.
Technical Specifications
Model | KWS-1000 |
Measuring Range | 0-50ppm or 0-0.40FLU |
Principle | fluorescence method |
Resolution | 0.01ppm |
Accuracy | ±3%F.S |
The detection limit | According to actual oil sample |
Linearity | R2>0.999 |
IP Grade | IP68 |
Max. depth | 10m under water |
Dimensions4.Application Picture
