| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KWS series water quality sensor |
| Price: | $100.00 - $200.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 2000 Piece/Pieces per Week pressure transducer transmitter |
| Usage: | Water Quality Sensor | Output: | Support RS-485, MODBUS Protocol, Support RS-485, MODBUS Protocol, Support RS-485, MODBUS Protocol |
|---|---|---|---|
| Brand: | PH Sensor | Measuring Range: | 0-14pH |
| Accuracy: | 0. 1pH | Resolution: | 0.01 |
| Protection Level: | IP68 | Deepest Depth: | Underwater 10 Meters |
| Temperature Range: | 0 ~ 50°C | Power Supply: | DC 5V~15V, Current<50mA |
| Port: | Shanghai Or Other |

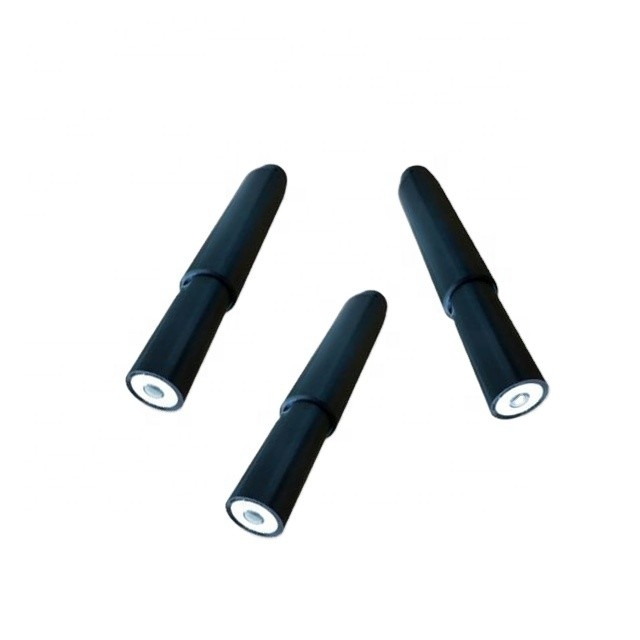

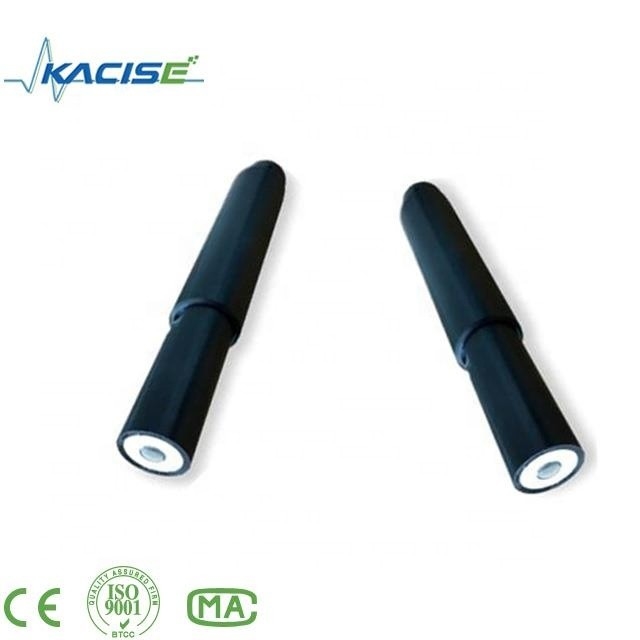

Online Digital pH Sensor
1. Introduction
Kacise digital pH sensor with industrial wire electrode, flat front end Structure, easy to clean. Built-in temperature sensor for automatic temperature compensation, Use an online long-term monitoring environment. The sensor uses RS485 output to support, Modbus enables network and system integration without a controller.
2. Feature
Digital sensor, RS-485 output, support MODBUS Unaffected by transmission distance for better stability
Built-in temperature sensor, automatic temperature compensation
3.Technical Specifications
Item | Parameters |
Measuring range | 0-14pH |
Accuracy | 0. 1pH |
Resolution | 0.01 |
Protection level | IP68 |
Deepest depth | Underwater 10 meters |
Temperature range | 0 ~ 50°C |
Output | Support RS-485, MODBUS protocol |
Power supply | DC 5V~15V, current<50mA |
Size | Φ26*167.5mm |
Installation | Drop in |
Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable |
Casing material | POM |
We supply high quality Online Digital pH Sensor hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
