Optical fluorescence Dissolved Oxygen Sensor For Shrimp Farm And Pond Optical fluorescence Dissolved Oxygen Sensor

Chat Now

Product Details

Type:

KWS-600

Product Name:

Aquaculture Fluorescence Dissolved Oxygen Sensor

Accuracy:

±5%

Range:

0-20mg/L Or 0-200% Saturation

IP Grade:

IP68

Sensor Drift:

<1% Per Year

Port:

Xi'an Or Other

Payment & Shipping Terms

Price

$380.00 - $520.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

500 Piece/Pieces per Month

KCW102 Low - Frequency Electromagnetic Wave Water Treatment Device

Get Best Price

KCW101 Frequency - Modulated Electromagnetic Wave Water Treatment Equipment

Get Best Price

KHM100 On - line Automatic Heavy Metal Water Quality Monitor

Get Best Price

KCW104 High - Efficiency Frequency - Sweeping Device

Get Best Price

86--17719566736

Chat Now

Product Description

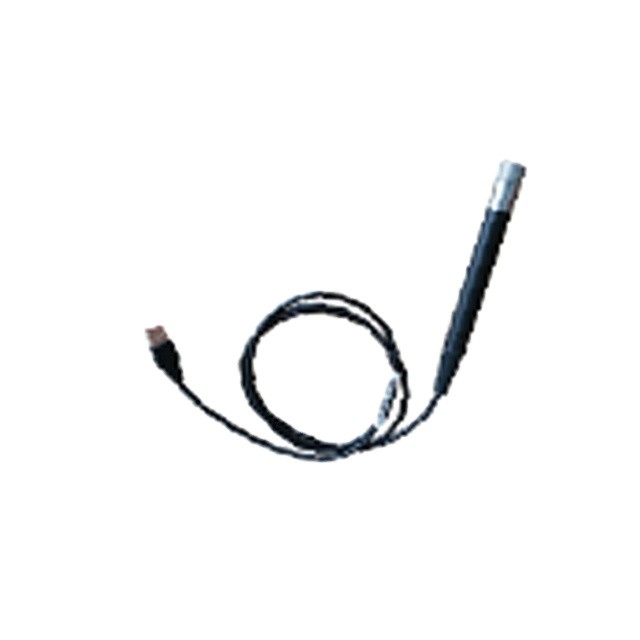

Shrimp Aquaculture Fluorescence Dissolved Oxygen Sensor

Introduction

The Kacise KWS-630 fluorescence dissolved oxygen sensor is designed for the aquaculture industry. It has the characteristics of stable online monitoring, and it has excellent characteristics compared with the traditional type sensor. It has no membrane, no need electrolyte, strong anti-interference, no need for frequent calibration, no consumption of oxygen, no flow rate limitation, auto matic temperature and Gas pressure compensation, gast reaction speed, long service life and more economical and convenient, so the fluorescence dissolved oxygen sensor is the best choice for real-time dynamic monitoring of oxygen content in aquaculture.

Features

No membrane, no need electrolyte
No need to consume oxygen, not affected by flow rate
Built-in temperature sensor, automatic temperature compensation
Free from chemical interferences such as sulfides
Small annual drift, fast response, and more accurate measurement
Free of maintenance, longer application cycle and lower cost of use
Fluor cap replacement is simple
Support RS-485, MODBUS protocol

Technical Specifications

Range	0-20mg/L or 0-200% saturation
Accuracy	±5%
Response Time	3 min
Ip Grade	IP68
Sensor Drift	<1% per year
Operating Temperature	0~50℃
Temperature Accuracy	Temperature Accuracy
Output	RS485, Modbus
Power Supply	DC6-12V ±5%, current<50mA
Temperature Sensor	NTC
Casing Diameter	22mm
Casing Length	188.3mm
Cable Length	Standard 10m, customizable 5m, 15m and 30m
Fluorescent Cap Lifetime	1 year (under normal use)
Casing Material	POM
