Name: Kws-200 Online NH4-N Ammonia Nitrogen Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Kws-200
Price: 745.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

Kws-200 Online NH4-N Ammonia Nitrogen Sensor

Place of Origin:

Shaanxi, China

Brand Name:

Kacise

Model Number:

Kws-200

Request A Quote

Product Details

Usage:

Fiber Optic Chlorophyll Sensor

Theory:

Principle Of Fluorescence

Output:

Support RS-485, MODBUS Protocol, Support RS-485, MODBUS Protocol, Support RS-485, MODBUS Protocol

Accuracy:

Measuring Range:

0-1000mg/L NH4-N

Power Supply:

DC 5~12V, Current <50mA

Port:

Shanghai Or Other

Payment & Shipping Terms

Price

$700.00 - $790.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

2000 Piece/Pieces per Week pressure transducer transmitter

KCW101 Frequency - Modulated Electromagnetic Wave Water Treatment Equipment

Get Best Price

KHM100 On - line Automatic Heavy Metal Water Quality Monitor

Get Best Price

KCW104 Automatic Softening Water Device

Get Best Price

KCW105 Ionization Water Purification Device

Get Best Price

86--17719566736

Contact Now

Product Description

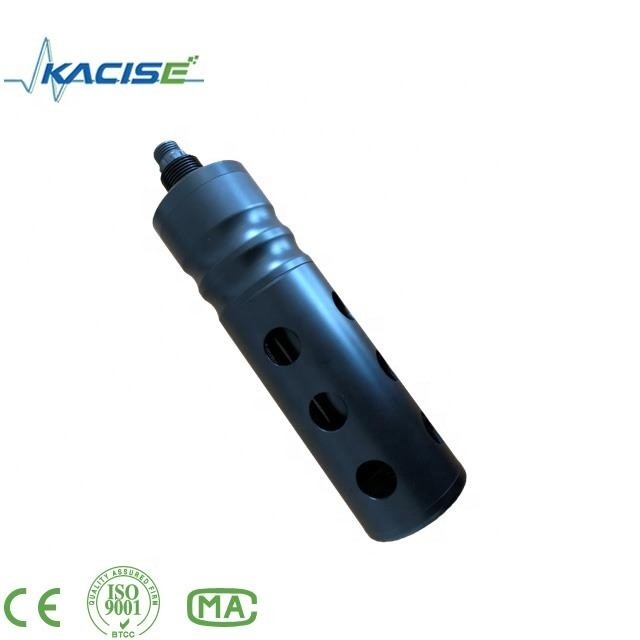

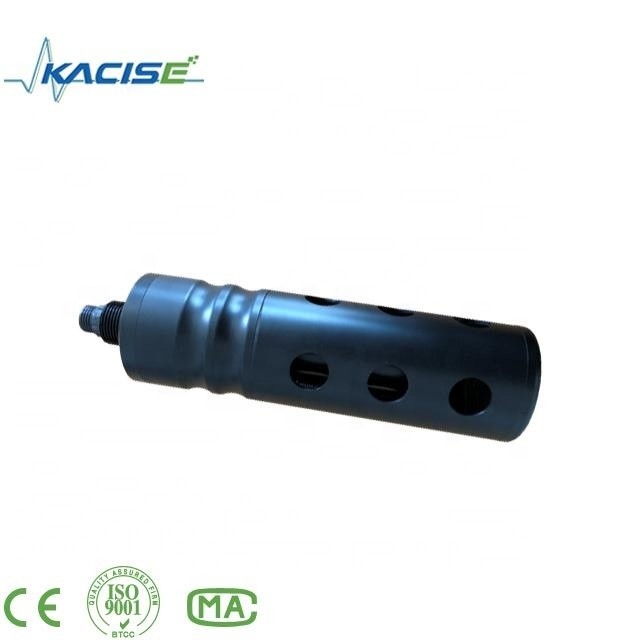

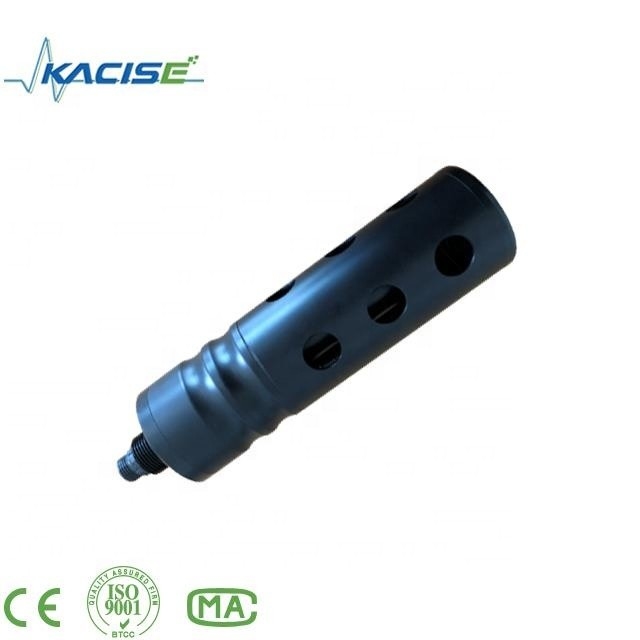

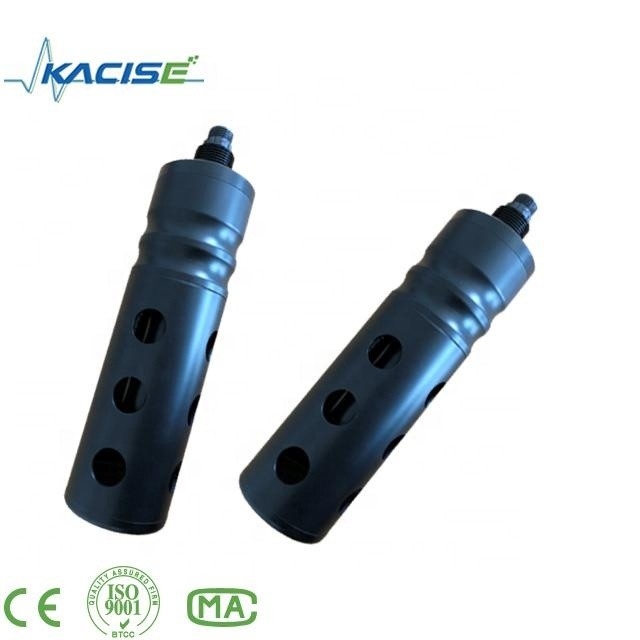

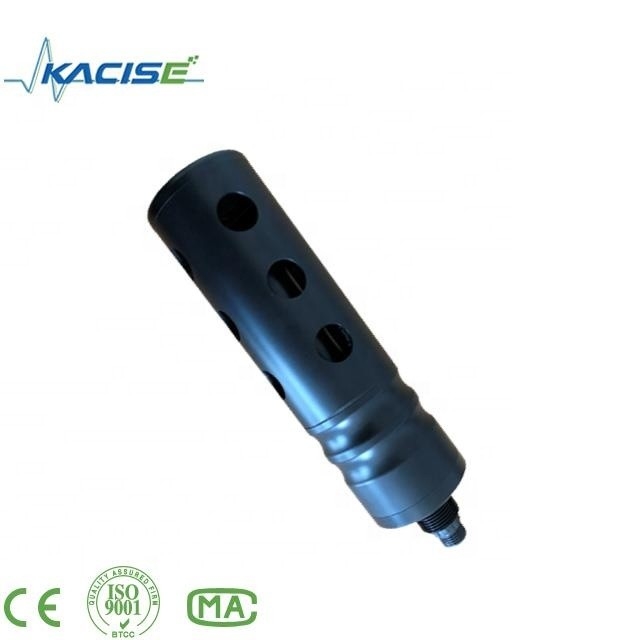

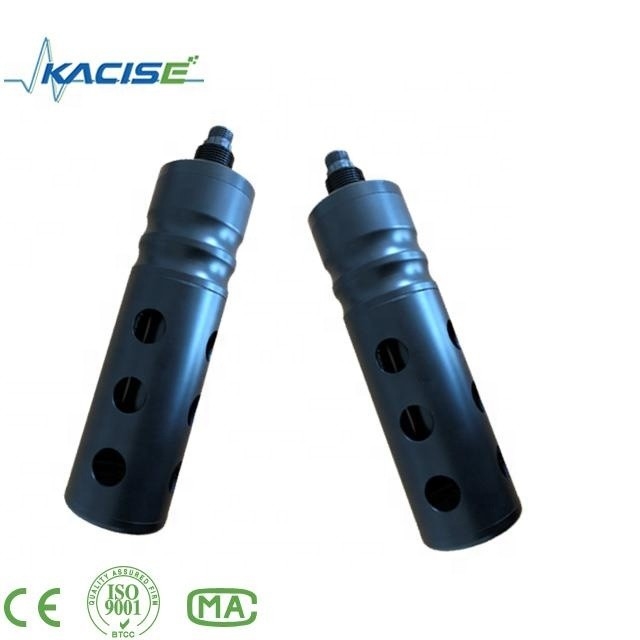

Kws-200 Online NH4-N Ammonia Nitrogen Sensor

1. Feature

Digital sensor, RS-485 output, support MODBUS

No reagents, no pollution, more economical and environmentally friendly

Automatically compensates for pH and temperature in water

Self-cleaning brush to prevent microbial adhesion and longer maintenance intervals

2. Application

Kacise introduces an online ammonia nitrogen sensor that requires no reagents, is green and non-polluting, and can be monitored online in real time. Integrated ammonium, potassium (optional), pH and reference electrodes automatically compensate for potassium (optional), pH and temperature in water. It can be directly put into installation, which is more economical, environmentally friendly and convenient than traditional ammonia nitrogen analyzer. The sensor has a self-cleaning brush that prevents microbial adhesion, resulting in longer maintenance intervals and excellent reliability. It adopts RS485 output and supports Modbus for easy integration.

3.Technical Specifications

product	parameter
Measuring range	0-1000mg/L NH4-N
Response time	10 sec
accurate	5%
pH range	4-10
pH accurate	±0.1
Protection level	IP68
Deepest depth	Underwater 60 meters	underwater 10 meters
temperature range	0 ~ 50℃
Output	Support RS-485, MODBUS protocol
Power supply	DC 5~12V, current <50mA
size	Φ26*177.5 mm
Probe cable length	10 m, customizable 5 m, 15 m and 30 m cable
product material	POM

Kws-200 Online NH4-N Ammonia Nitrogen Sensor 0

Application

4.Application Picture

Product Pictures

5.Production

Kws-200 Online NH4-N Ammonia Nitrogen Sensor 2

Packaging & Shipping

6.Packaging

Kws-200 Online NH4-N Ammonia Nitrogen Sensor 3
