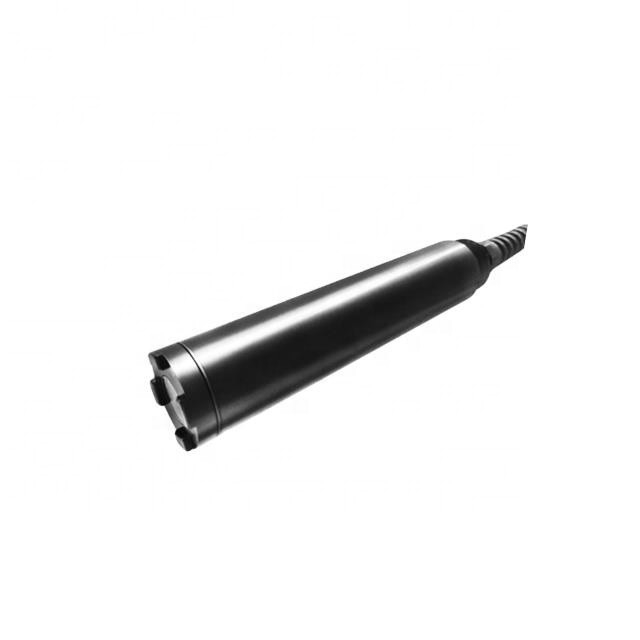

Factory Price optical fiber turbidimeter optical fiber turbidity sensor fiber optic turbidity sensor

Place of Origin:

Shaanxi, China

Brand Name:

KACISE

Request A Quote

Factory Price optical fiber turbidimeter optical fiber turbidity sensor fiber optic turbidity sensor

Product Details

Principle:

90° Scattered Light

90° Scattered Light:

0-1000NTU

Resolution:

0.1NTU

Accurate:

0.3NTU

Protection Level:

IP68

Deepest Depth:

Underwater 60 Meters,

Temperature Range:

0 ~ 50℃

Output:

Support RS-485, MODBUS Protocol

Power Supply:

DC 5~12V, Current <50mA

Product Material:

POM

Port:

Xi'an

Payment & Shipping Terms

Price

$2,000.00 - $4,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

100 Piece/Pieces per Month

KCW101 Frequency - Modulated Electromagnetic Wave Water Treatment Equipment

Get Best Price

KHM100 On - line Automatic Heavy Metal Water Quality Monitor

Get Best Price

KCW104 Automatic Softening Water Device

Get Best Price

KCW105 Ionization Water Purification Device

Get Best Price

86--17719566736

Contact Now

Product Description

Factory Price optical fiber turbidimeter optical fiber turbidity sensor fiber optic turbidity sensor

1. Applications

Kacise Sensing applies fiber technology to the turbidity sensor to make the sensor

Better repeatability and stability, not susceptible to ambient light. coordination

The sensor's automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement.

Long-term online use, longer maintenance intervals and better stability.

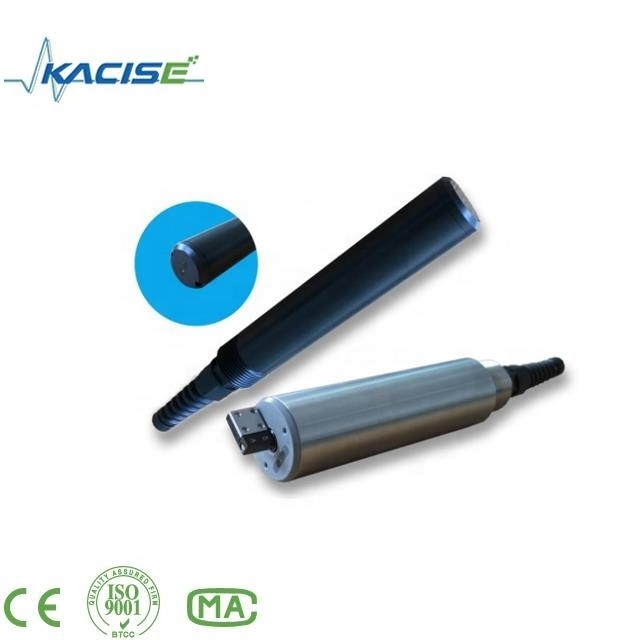

Factory Price optical fiber turbidimeter optical fiber turbidity sensor fiber optic turbidity sensor 0

2. Feature

Digital sensor, RS-485 output, support MODBUS, with automatic cleaning brush, prevent pollution, eliminate air bubbles, strong anti-interference ability, no ambient light and chromaticity, 90° scattered light principle, better fiber technology repeatability.

3.Technical Specifications

product	Fiber turbidity sensor	Self-cleaning turbidity sensor
principle	90° scattered light
Measuring range	0-1000NTU
Resolution	0.1NTU
accurate	0.3NTU
Protection level	IP68
Deepest depth	Underwater 60 meters	underwater 10 meters
temperature range	0 ~ 50℃
Output	Support RS-485, MODBUS protocol
Power supply	DC 5~12V, current <50mA	DC 5~12V, current <50mA (when not cleaned)
size	Φ22mm*120mm	Φ33mm*156mm
Probe cable length	10 m, customizable 5 m, 15 m and 30 m cable
product material	POM
Self-cleaning system	exist	No
Optical window	optical fiber

Factory Price optical fiber turbidimeter optical fiber turbidity sensor fiber optic turbidity sensor 1
