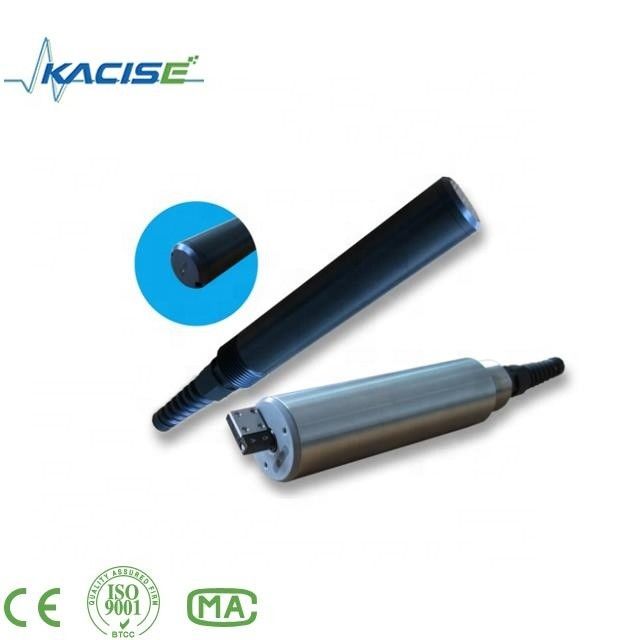

Factory Price Optical Fiber Turbidimeter with 90° Scattered Light IP68 Protection and MODBUS Protocol Fiber Optic Turbidity Sensor

optical fiber turbidity sensor

fiber optic turbidity meter

water quality turbidity sensor

Place of Origin:

Shaanxi, China

Brand Name:

KACISE

Request A Quote

Product Details

Principle:

90° Scattered Light

90° Scattered Light:

0-1000NTU

Resolution:

0.1NTU

Resolution:

0.1NTU

Accurate:

0.3NTU

Protection Level:

IP68

Deepest Depth:

Underwater 60 Meters,

Temperature Range:

0 ~ 50℃

Output:

Support RS-485, MODBUS Protocol

Power Supply:

DC 5~12V, Current <50mA

Product Material:

POM

Port:

Xi'an

Highlight:

optical fiber turbidity sensor

fiber optic turbidity meter

water quality turbidity sensor

Payment & Shipping Terms

Price

$2,000.00 - $4,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

100 Piece/Pieces per Month

IP68 Anti Interference Online Turbidity Sensor with 0.1 NTU Resolution for Industrial Water Quality Monitoring

Get Best Price

Video

IP68 POM Material Nitrate Nitrogen Water Quality Sensor with Ion Selective Electrode Method

Get Best Price

Video

KWS-150 COD Sensor with 0.1NTU Turbidity Resolution and RS-485 Output Using Dual-wavelength UV Absorption

Get Best Price

Video

KWS-380 Digital TDS Sensor with RS-485 Output and IP68 Protection for High Precision Water Quality Monitoring

Get Best Price

Contact Now

Product Description

Factory Price optical fiber turbidimeter optical fiber turbidity sensor fiber optic turbidity sensor

1. Applications

Kacise Sensing applies fiber technology to the turbidity sensor to make the sensor Better repeatability and stability, not susceptible to ambient light. coordination The sensor's automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement. Long-term online use, longer maintenance intervals and better stability.

2. Feature

Digital sensor, RS-485 output, support MODBUS, with automatic cleaning brush, prevent pollution, eliminate air bubbles, strong anti-interference ability, no ambient light and chromaticity, 90° scattered light principle, better fiber technology repeatability.

3. Technical Specifications

product	Fiber turbidity sensor	Self-cleaning turbidity sensor
principle	90° scattered light
Measuring range	0-1000NTU
Resolution	0.1NTU
accurate	0.3NTU
Protection level	IP68
Deepest depth	Underwater 60 meters	underwater 10 meters
temperature range	0 ~ 50℃
Output	Support RS-485, MODBUS protocol
Power supply	DC 5~12V, current <50mA	DC 5~12V, current <50mA (when not cleaned)
size	Φ22mm*120mm	Φ33mm*156mm
Probe cable length	10 m, customizable 5 m, 15 m and 30 m cable
product material	POM
Self-cleaning system	exist	No
Optical window	optical fiber
