| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Price: | $100.00 - $700.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 100 Piece/Pieces per Month |
| Principle: | Ultraviolet Fluorescence Method | Measuring Range: | 0-20mg/L Or 0-200% Saturation |
|---|---|---|---|
| Response Time: | 3 Min | Accurate: | ±5% |
| Protection Level: | IP68 | Sensor Drift: | <1% Per Year |
| Operating Temperature: | 0 ~ 80°C | Output: | RS485, Modbus |
| Power Supply: | DC6-12V ±5%, Current<50mA | Temperature Sensor: | NTC |
| Port: | ShenZhen | ||
| High Light: | Ultraviolet Fluorescence Dissolved Oxygen Sensor,Dissolved Oxygen Sensor DC12V,Aquaculture Fluorescence Water Quality Sensor |
||

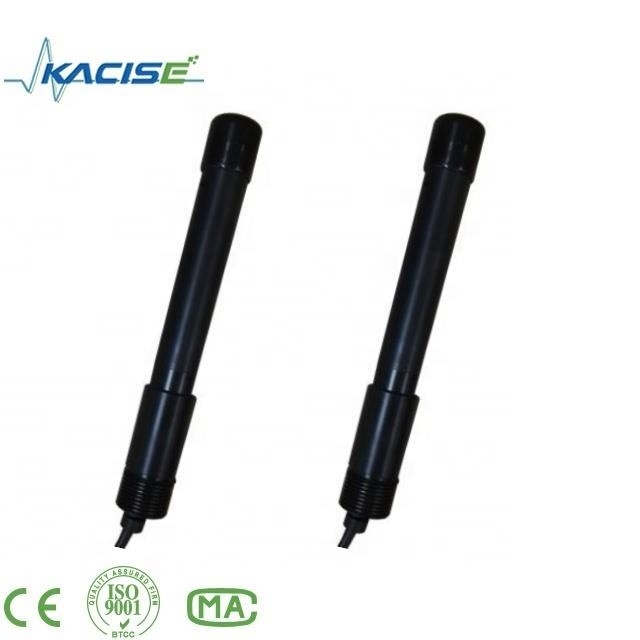

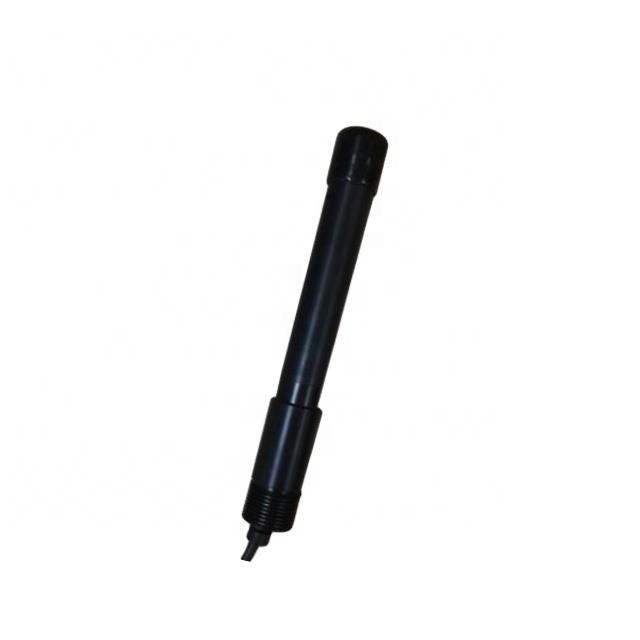

Aquaculture Fluorescence Dissolved Oxygen Sensor
Introduction
The Kacise KWS-630 fluorescence dissolved oxygen sensor is designed for the aquaculture industry. It has the characteristics of stable online monitoring, and it has excellent characteristics compared with the traditional type sensor. It has no membrane, no need electrolyte, strong anti-interference, no need for frequent calibration, no consumption of oxygen, no flow rate limitation, auto matic temperature and Gas pressure compensation, fast reaction speed, long service life and more economical and convenient, so the fluorescence dissolved oxygen sensor is the best choice for real-time dynamic monitoring of oxygen content in aquaculture.
|
Range |
0-20mg/L or 0-200% saturation |
|
Accuracy |
±5% |
|
Response Time |
3 min |
|
Ip Grade |
IP68 |
|
Sensor Drift |
<1% per year |
|
Operating Temperature |
0~50℃ |
|
Temperature Accuracy |
±0.5℃ |
|
Output |
RS485, Modbus |
|
Power Supply |
DC6-12V ±5%, current<50mA |
|
Temperature Sensor |
NTC |
|
Casing Diameter |
22mm |
|
Casing Length |
188.3mm |
|
Cable Length |
Standard 10m, customizable 5m, 15m and 30m |
|
Fluorescent Cap Lifetime |
1 year (under normal use) |
|
Casing Material |
POM |
Dimensions
