| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KWS-100, KWS-101 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Piece/Pieces per Month |
| Features: | Automatic Cleaning Device, Optical Detection | Product Name: | Online COD Sensor |
|---|---|---|---|
| Application: | COD Analysor, Waste Water Treatment,water Quality Sensor | Testing: | SAC, COD,TOC,Turbidity |
| Output: | RS-485, Modbus | COD Range: | 0.5 To 370mg/L Equiv. KHP, 1 To 1500mg/L Equiv. KHP |
| COD Resolution: | 0.01mg/L | Accuracy: | ±5% Equiv. KHP |
| Material: | POM And 316L (Titanium Customizable) | IP Rating: | IP68 |
| Port: | Xi'an Or Other |

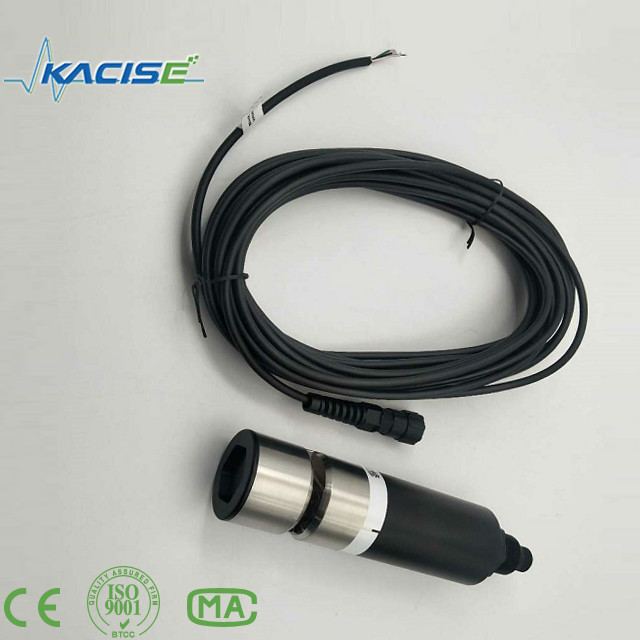

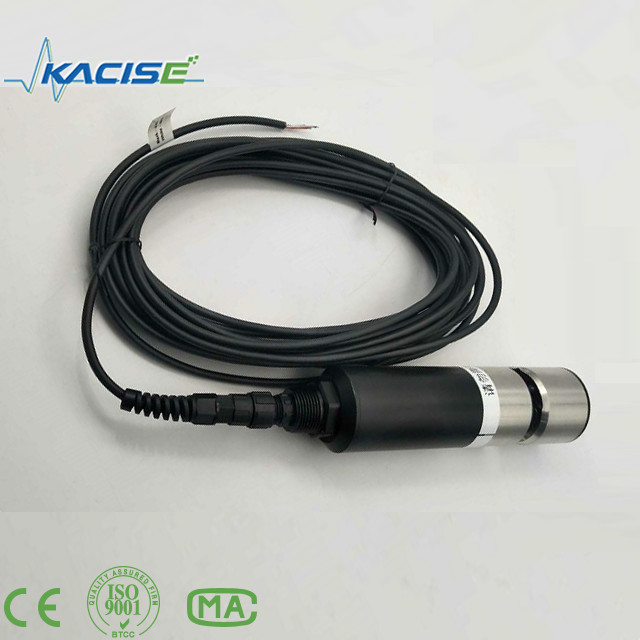

The COD sensor is Kacise's new generation of COD / TOC sensors. It does not require reagents, is non-polluting, is more economical, and is more environmentally friendly. The water volume is small, easy to install, and water quality monitoring can be performed online. Automatically compensates for turbidity disturbances and is equipped with an automatic cleaning device that maintains excellent stability even over long periods of time.
Applications:
| Model | KWS-100 | KWS-101 |
| COD Range | 0.5 to 500mg/L equiv. KHP | 1 to 1500mg/L equiv. KHP |
| COD Accuracy | ±5% equiv. KHP | ±5% equiv. KHP |
| COD Resolution | 0.01mg/L | |
| TOC Range | 0.3 to 150mg/L equiv. KHP | 0.4 to 600mg/L equiv. KHP |
| TOC Accuracy | ±5% equiv. KHP | ±5% equiv. KHP |
| TOC Resolution | 0.01mg/L | |
| Turbidity Range | 0-300 NTU | 0-500 NTU |
| Turbidity Accuracy | ±5% or 0.5 NTU | ±5% |
| Turbidity Resolution | 0.01 NTU | |
| Material | POM and 316L (Titanium customizable) | |
| Operating Temperature | 0~50℃ (no freezing) | |
| IP Rating | IP68 | |
| Output | RS485, Modbus | |
| Power Supply | DC12V-24V | |
| Sensor Diameter | 50mm | |
| Sensor Length | 214mm | |
| Calibration | Support one point and two-points calibration | |
| Max. Pressure | 3 bar | |
Dimention
KWS-100 KWS-101
