Name: wireless 4g pond cod water quality monitoring chemical oxygen demand sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS100
Price: 1.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

wireless 4g pond cod water quality monitoring chemical oxygen demand sensor

Place of Origin:

China

Brand Name:

Kacise

Certification:

Model Number:

KWS100

Request A Quote

wireless 4g pond cod water quality monitoring chemical oxygen demand sensor

Product Details

Product Name:

COD Sensor

Application:

COD Analysor

Digital Sensor:

RS-485

Testing:

SAC, COD,TOC

Port:

Xi'an Or Other

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

$2,500.00 - $3,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

500 Piece/Pieces per Month

Accuracy Water Sensor Meter Analog Interface 0-85%RH Humidity Range for Precise Measurement

Get Best Price

Precision Water Sensor CO2 Meter with 0-85%RH Humidity Range 3W Power Consumption RS485 Signal Output

Get Best Price

MODBUS Compatible KWS200 On-line Ammonia Nitrogen Sensor with POM Material and RS-485 Output

Get Best Price

wireless 4g pond cod water quality monitoring chemical oxygen demand sensor

Get Best Price

86--17719566736

Contact Now

Product Description

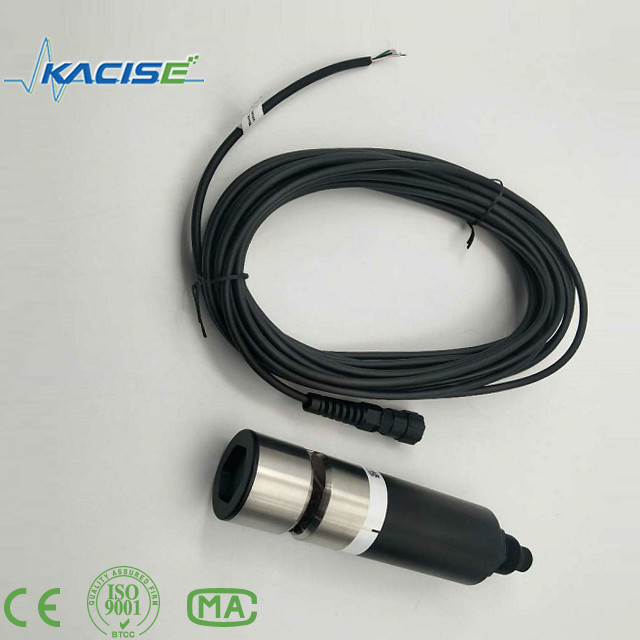

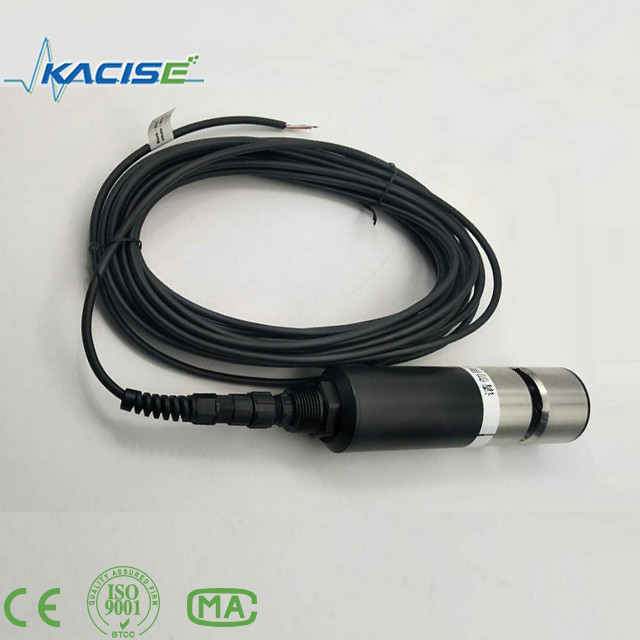

Wireless 4G Pond COD Water Quality Monitoring Chemical Oxygen Demand Sensor

Product Attributes

Attribute	Value
Product name	COD Sensor
Application	COD Analysor
Digital Sensor	RS-485
Testing	SAC, COD, TOC
Port	Xi'an or other

Product Description

The COD sensor is Kacise's new generation of environmentally friendly COD/TOC sensors. It requires no reagents, produces no pollution, offers greater economy, and is more environmentally friendly. With small water volume requirements and easy installation, it enables online water quality monitoring.

Principle

Many organic substances dissolved in water absorb ultraviolet light. By measuring the absorption of these organic substances at 254 nm wavelength, the total amount of organic pollutants in water can be determined. The Kacise COD series sensor uses dual light sources (254nm UV and 850nm infrared) to automatically compensate for optical path attenuation and turbidity effects, ensuring stable and reliable measurements.

Key Features

Digital sensor with RS-485 output supporting MODBUS protocol
Reagent-free operation with no pollution - more economical and environmentally friendly
Measures SAC, COD, TOC and other parameters
Automatic turbidity interference compensation for outstanding test performance

Technical Specifications

Product	Measuring Range	Application Field
KWS100A (40mm gap)	SAC 0.1 to 50 1/m COD 0.15 to 75 mg/l equiv. KHP TOC 0.06 to 30 mg/l equiv KHP	Tap water treatment
KWS100B (8mm gap)	SAC 0.5 to 250 1/m COD 0.75 to 370 mg/l equiv. KHP TOC 0.3 to 150 mg/l equiv KHP	Sewage treatment plant outlet, natural waters
KWS100C (2mm gap)	SAC 1.5 to 700 1/m COD 2.5 to 1000 mg/l equiv. KHP TOC 0.9 to 410 mg/l equiv KHP	Industrial process control
