Chemical Oxygen Demand Water Quality Sensor Online COD Sensor With RS-485 Output

Chemical Oxygen Demand Water Quality Sensor Online COD Sensor With RS-485 Output

  • Chemical Oxygen Demand Water Quality Sensor Online COD Sensor With RS-485 Output
  • Chemical Oxygen Demand Water Quality Sensor Online COD Sensor With RS-485 Output
Chemical Oxygen Demand Water Quality Sensor Online COD Sensor With RS-485 Output
Product Details:
Place of Origin: China
Brand Name: Kacise
Payment & Shipping Terms:
Price: $2,500.00 - $3,000.00/pieces
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Supply Ability: 500 Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: COD Sensor Application: COD Analysor
Digital Sensor: RS-485 Testing: SAC, COD,TOC
Port: Xi'an Or Other
High Light:

RS485 Output Online COD Sensor

,

Water Online COD Sensor

,

Chemical Oxygen Demand Water Quality Sensor

Low Cost Chemical Oxygen Demand Sensor Online COD Sensor
Introduction
The COD sensor is Kacise's new generation of environmentally friendly COD / TOC sensors. It does not require reagents, is non-polluting, is more economical, and is more environmentally friendly. The water volume is small, easy to install, and water quality monitoring can be performed online. Automatically compensates for turbidity disturbances and is equipped with an automatic cleaning device that maintains excellent stability even over long periods of time.
Principle
Many organic substances dissolved in water absorb ultraviolet light. Therefore, by measuring the
absorption of these organic substances by ultraviolet light at a wavelength of 254 nm, the total amount of
organic pollutants in water can be measured. The Kacise COD series sensor uses two light sources, one
254nm ultraviolet light and one 850nm infrared light, which can automatically compensate the optical
path attenuation and turbidity effects, thus achieving more stable and reliable measurement values.
Features
Digital sensor, RS-485 output, support MODBUS
No reagents, no pollution, more economical, more environmentally friendly
Can measure SAC, COD, TOC and other parameters
Automatically compensates for turbidity interference for outstanding test performance
Technical Specifications

Product
Measuring range
 Application field
KWS100A (40mm gap)
SAC 0.1 to 50 1/m
COD 0.15 to 75 mg/l equiv. KHP
TOC 0.06 to 30 mg/l equiv KHP
Tap water treatment
KWS100B (8mm gap)
SAC 0.5 to 250 1/m
COD 0.75 to 370 mg/l equiv. KHP
TOC 0.3 to 150 mg/l equiv KHP
Sewage treatment plant
outlet, natural waters
KWS100C (2mm gap)
SAC 1.5 to 700 1/m
COD 2.5 to 1000 mg/l equiv. KHP
TOC 0.9 to 410 mg/l equiv KHP
Industrial process control

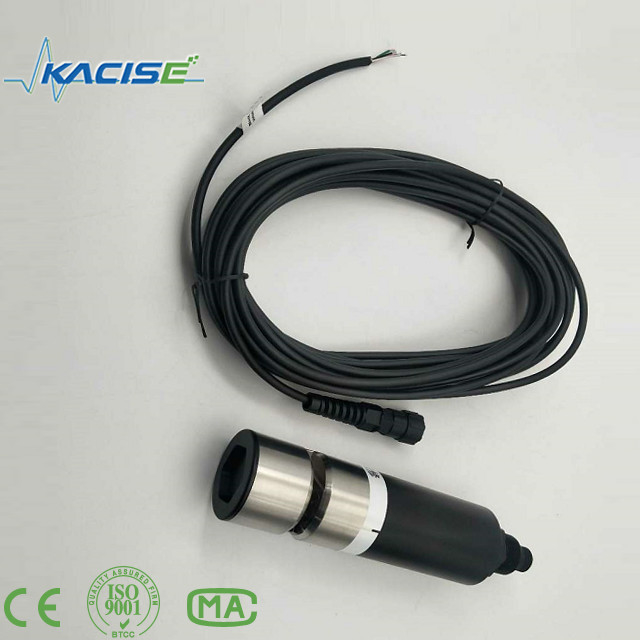

Chemical Oxygen Demand Water Quality Sensor Online COD Sensor With RS-485 Output 0

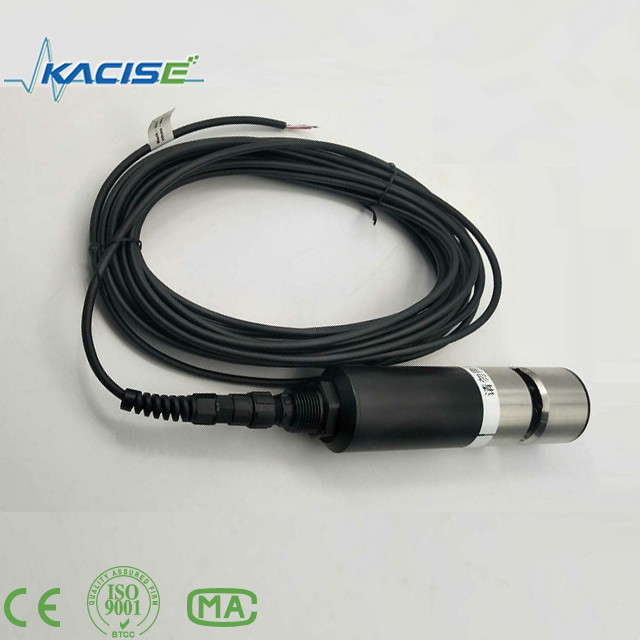

Chemical Oxygen Demand Water Quality Sensor Online COD Sensor With RS-485 Output 1Chemical Oxygen Demand Water Quality Sensor Online COD Sensor With RS-485 Output 2
