Place of Origin: | Shaanxi, China |
Brand Name: | Kacise |
Price: | $300.00 - $500.00/pieces |
---|---|
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Supply Ability: | 500 Piece/Pieces per Month |

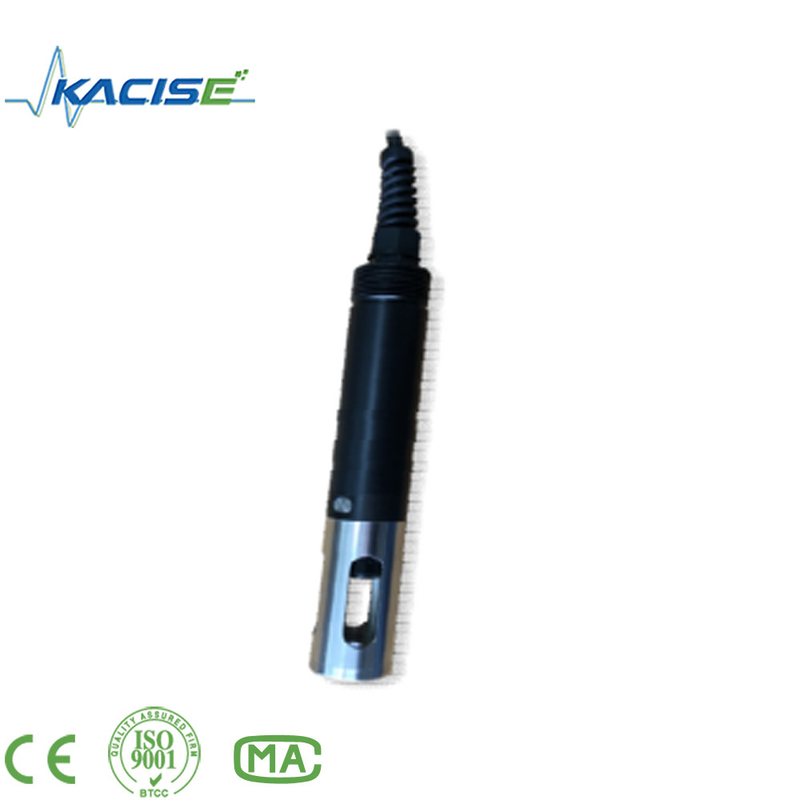

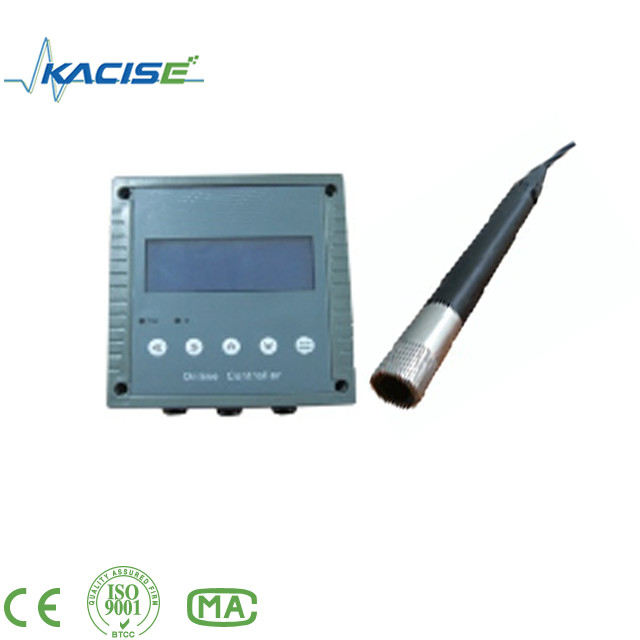

Product Name: | Fluorescence Dissolved Oxygen Sensor | Principle: | Ultraviolet Fluorescence Method |
---|---|---|---|
Sensor Drift: | <1% Per Year | Fluorescent Cap Life: | 1 Year |
Port: | Xi'an Or Other | ||
High Light: | Industrial Dissolved Oxygen Analyzer,Stainless Steel Dissolved Oxygen Sensor,Industrial Dissolved Oxygen Meter |
Item | Parameters |
Model | KWS600 |
Principle | Ultraviolet fluorescence method |
Measuring range | 0~20mg/L or 0-200% saturation |
Response time | 10 sec |
Accuracy | 1% |
Sensor drift | <1% per year |
Protection level | IP68 |
Installation | Drop in Hanging ring |
Temperature sensor
|
NTC |
Temperature range
|
0~50°C |
Temperature accuracy
|
±0.2°C |
Output
|
Support RS-485, MODBUS protocol |
Power supply | DC 6~12V, current <50mA |
Size | Φ26*177.5 mm |
Probe cable length | Default 10 m, customizable 5 m, 15 m and 30 m cable |
Fluorescent cap life | 1 year |
Maximum working pressure | 6bar |
product material | POM or stainless steel |
