| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Price: | $100.00 - $1,000.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 500 Piece/Pieces per Month |
| Range: | -1500~1500mV | Accurate: | ±3mV |
|---|---|---|---|
| Resolution: | 1mV | Protection Level: | IP65 |
| Deepest Depth: | Underwater 10 Meters | Output: | Support RS-485, MODBUS Protocol |
| Port: | Xi'an Or Other | ||
| High Light: | IP65 Online ORP Meter,Online Control ORP Meter,Industrial Electrode Online ORP Meter |
||

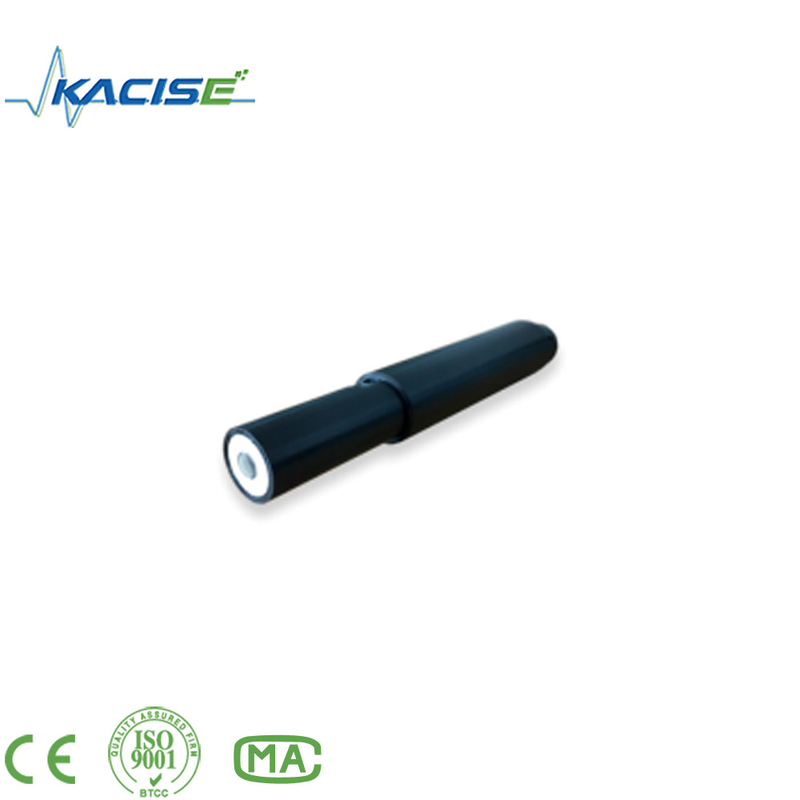

Online OPR meter for ORP online control
Introduction
Kacise ORP digital sensor uses industrial on-line electrode. The front side of electrode is flat to clean easily. With built-in temperature sensor, Kacise ORP sensor is suitable for online long-term monitoring. The sensor can realize networking and system integration without controller by RS485 output, Modbus supported.
Feature
lDigital sensor, RS-485 output, support MODBUS.
lNot affected by transmission distance, better stability
lBuilt-in temperature sensor
Technical Specifications
|
Range |
-1500~1500mV |
|
Accurate |
±3mV |
|
Resolution |
1mV |
|
Protection level |
IP65 |
|
Display |
No display |
|
temperature range |
0 ~ 60℃ |
|
Output |
Support RS-485, MODBUS protocol |
|
Power supply |
DC12~24V±10% |
|
Installation |
3/4” NPT THREAD |
|
size |
50X45X230mm |
|
Probe cable length |
10 m, customizable 5 m, 15 m and 30 m cable |
|
Material |
PPR |
