Name: RS485 Oil in water Sensor With Self-cleaning system Brush with accuracy ±3%
Brand: Kacise
SKU: KWS-1100
Price: 100.00 USD
Availability: InStock
Rating: 5 (187 reviews)

Home > products > Water Quality Sensor >

RS485 Oil in water Sensor With Self-cleaning system Brush with accuracy ±3%

Place of Origin:

Shaanxi, China

Brand Name:

Kacise

Certification:

Model Number:

KWS-1100

Request A Quote

RS485 Oil in water Sensor With Self-cleaning system Brush with accuracy ±3%

Product Details

Principle:

Fluorescence Method

Measuring Range:

0-500ppb

Accuracy:

±3%F.S

Power Supply:

DC6-12V, Current<50mA (when Not Cleaning)

Product Name:

KWS-1100 Online Oil-In-Water Sensor

Max. Depth:

10m Under Water

Port:

Xi'an Or Other

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

$100.00 - $1,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

500 Piece/Pieces per Month

KWS-3100 Online Chloride Ion Sensor

Get Best Price

Video

Stable Water Quality Sensor ORP Digital Sensor Replacement 1mV Resolution with accurate ±6mV

Get Best Price

86--17719566736

Contact Now

Product Description

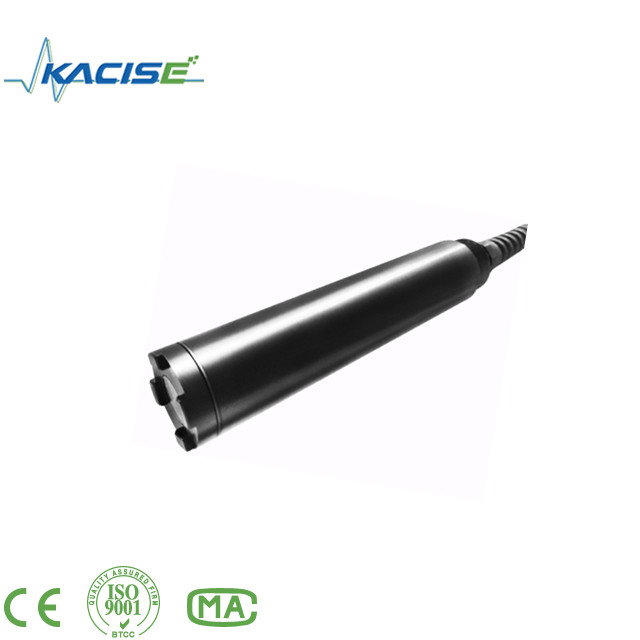

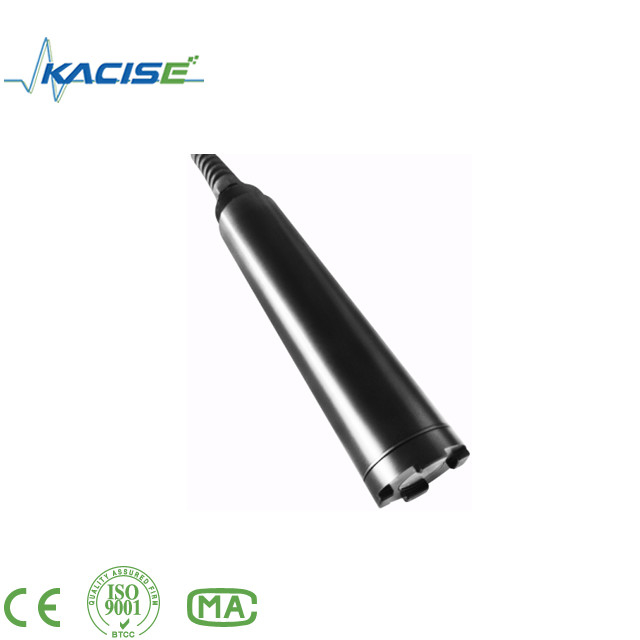

RS485 Oil in water Sensor With Self-cleaning system Brush

The Kacise online water sensor operates based on the principle of fluorescence. When compared with several commonly employed methods, the fluorescence method proves to be significantly more efficient and quicker. It enables real-time online monitoring, providing immediate and up-to-date information. The sensor boasts superior repeatability and stability, ensuring consistent and reliable performance over time. It comes with an optional automatic cleaning brush, which effectively eliminates air bubbles and mitigates the influence of contamination on the measurement. This feature not only extends the maintenance cycle but also maintains outstanding stability for prolonged online usage. Moreover, it has the ability to play an early warning role regarding oil pollution in water, allowing for timely intervention and preventive measures.

For example, in industrial water treatment plants, this sensor can constantly monitor water quality in real time, promptly detecting any changes in parameters. The automatic cleaning brush helps prevent measurement errors caused by accumulated dirt or air bubbles, reducing the frequency of maintenance. In cases of potential oil spills in rivers or coastal areas, the sensor can quickly alert authorities, enabling them to take prompt action to minimize the environmental impact. Its excellent stability ensures accurate and reliable data even during extended periods of continuous operation, providing valuable insights for effective water management and protection.

Principle

The oil content in the water body was monitored by ultraviolet fluorescence method, and the oil concentration in the water body was quantitatively analyzed according to the fluorescence intensity of the oil and its aromatic hydrocarbon compound and the conjugated double bond compound absorbing ultraviolet light. The aromatic hydrocarbons in the petroleum form fluorescence under the excitation of ultraviolet light, and the value of the oil in the water is calculated according to the intensity of the fluorescence.

Feature

Digital sensor, RS-485 output, support MODBUS
Optional automatic cleaning brush to eliminate the impact of oil on the measurement
Eliminate the impact of ambient light on measurements with unique optical and electronic filtering techniques
It is not affected by suspended solids in water.

Technical Specifications

Model	KWS-1100
Measuring Range	0-500ppb
Principle	fluorescence method
Resolution	0.01ppm
Accuracy	±3%F.S
The detection limit	According to actual oil sample
Linearity	R²>0.999
IP Grade	IP68
Max. depth	10m under water
Temperature Range	0~50℃
Output	RS485, Modbus
Installation	Submersible
Dimension	Φ45*175.8mm
Power Supply	DC6-12V, current<50mA (when not cleaning)
Cable Length	Standard 10m, customizable
Casing Material	316L (titanium alloy customizable)
Self-cleaning Function	Optional

RS485 Oil in water Sensor With Self-cleaning system Brush with accuracy ±3% 0
